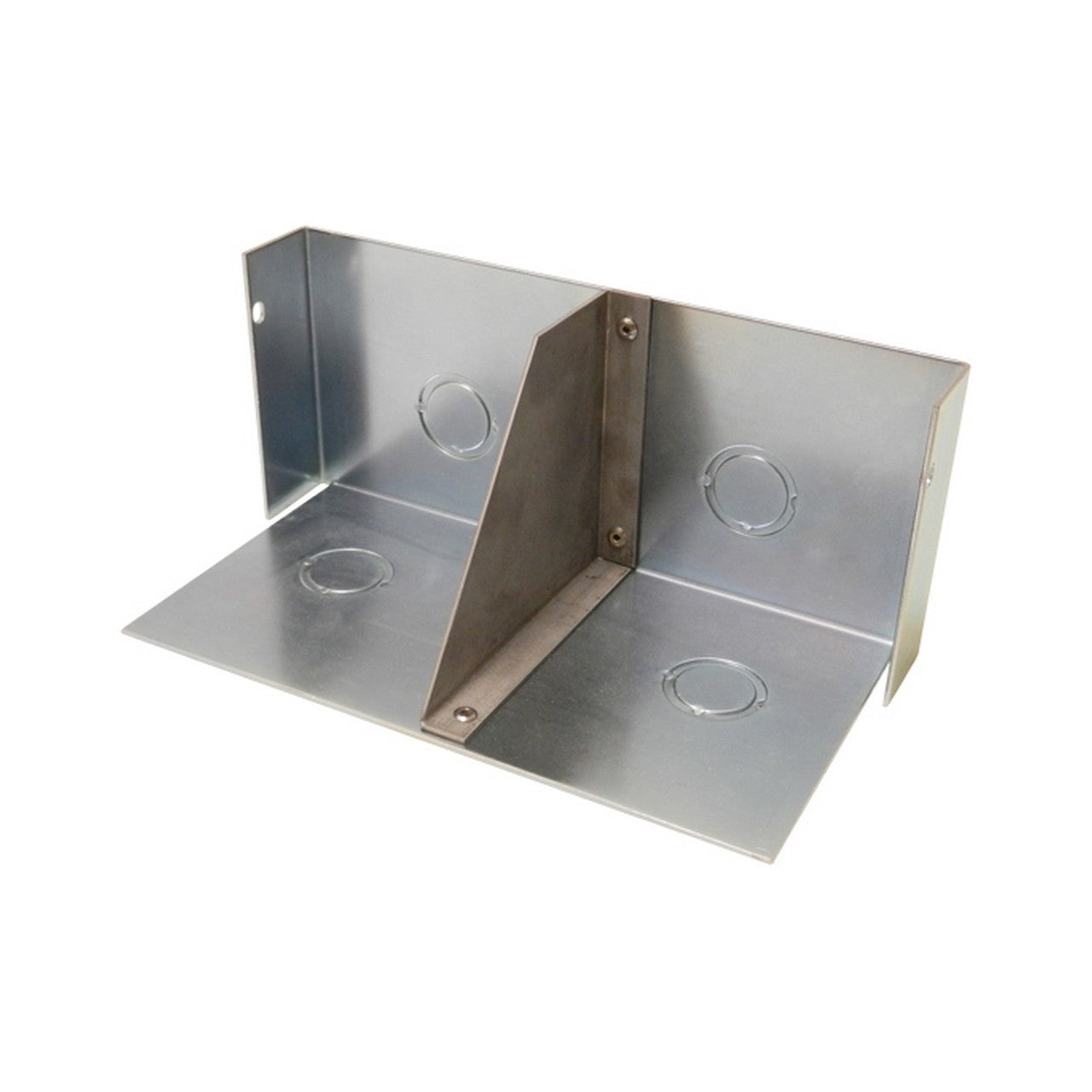

Ace Backstage Co. ISO22BAC AC Isolated Back Access Cover for Full Pocket
The #22BAC, #23BAC and #24BAC are closures for the back access opening on the ACE Full Pockets, Half Pockets, and Double Wide Pockets, respectively. The BAC provides 1/2” and 3/4” combination conduit knock-outs for easy conduit terminations. Use the BAC with Half, Full, or Double Wide Pocket installations requiring wiring closure (larger ACE #BBX Series Back Boxes, #PE, and, #FP3E Electric Panels cannot be used with the BAC). The BAC is easy to install onto the Half, Full, or Double Wide Pocket body and permits many options in a typical installation sequence.
Key Features
- SIMPLE CLOSURE: The simple device closes the back access opening on ACE Half, Full, and Double Wide Pockets easily.
- FLEXIBILITY: Provides 1/2" and 3/4" combination conduit knock-outs for easy conduit terminations.
- DURABLE CONSTRUCTION: Precision die formed to exactly match the back access openings of ACE Stage Pocket bodies.
- (1) #BAC Back Access Cover
- (2) Self Tapping Screws
Technical Specifications
22BAC Series Back Access Cover Size
4.171” W x 3.562” H x 8.156" L
