ADJ STAGE SETTER-8 8 Programmable Patterns 8 DMX Channel Controller(American Dj Stage Setter 8 8 Programmable Patterns 8 Dmx Channel Controller)

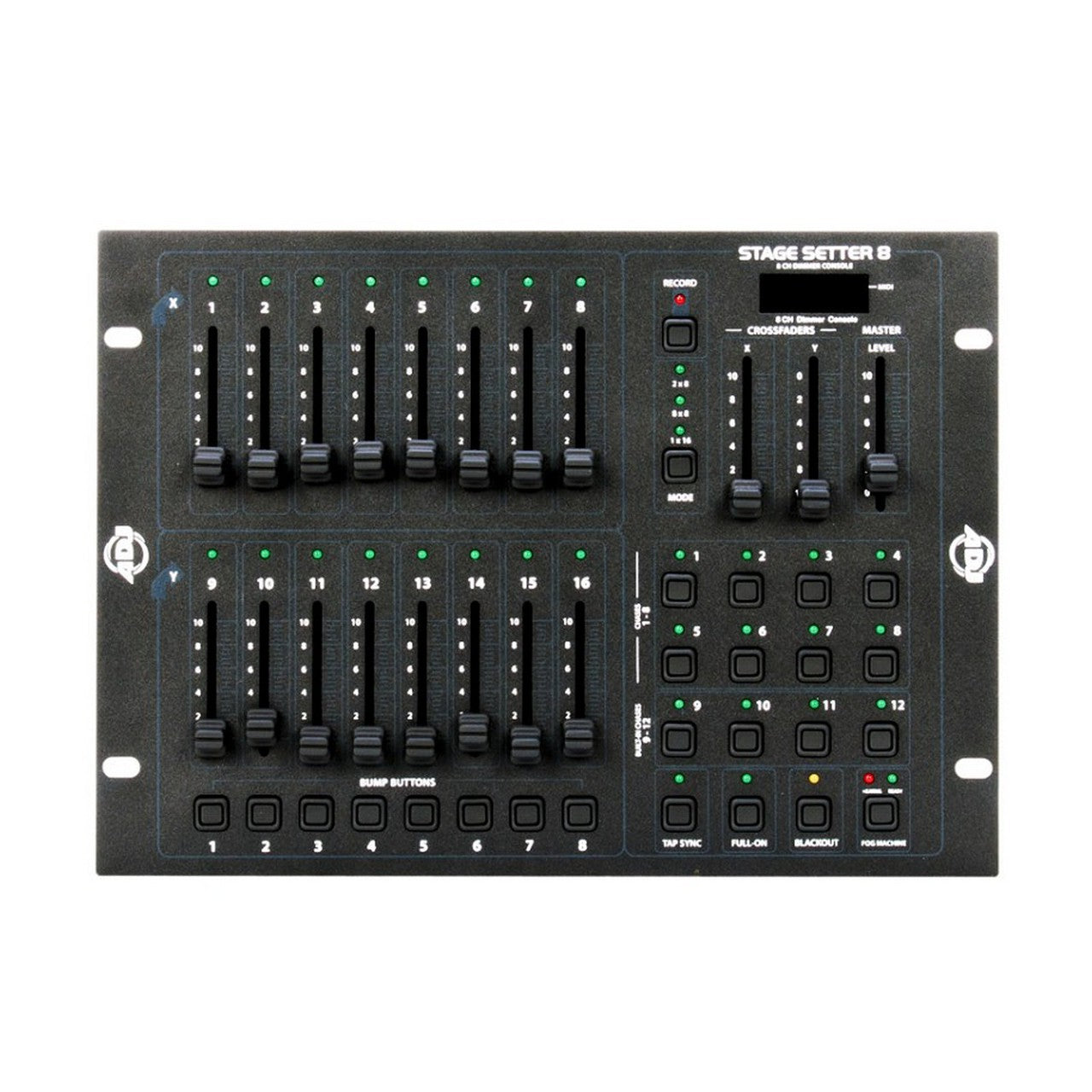

American DJ STAGE SETTER-8 8 Programmable Patterns 8 DMX Channel Controller

Complete your par can setup with by tying it all together with the Stage Setter 8 DMX Controller by Elation Control Systems and offered by ADJ. This quality constructed DMX controller offers you the ability to fully control the dimming and on/off of your par can setup via dimmer packs. Operating in 3 separate modes and offering a range of customization and built-in programs, the Stage Setter 8 is an essential component of any par can lighting production. Functioning on standard DMX-512 protocol as well as MIDI compatible and including fog machine output control, the Scene Setter 8 can be tied into your entire production system with ease. This portable device is perfect for any size stage production, permanent or mobile. Manage your lighting like a true professional, get the Scene Setter 8 from ADJ today.

Key Features

• Three different operating modes; 2 x 8 (two banks of 8 channels), 8 x 8 (eight channels), 1 x 16 (one bank - 16 channels)
• 8 or 16 channel DMX operation
• Four built-in programs
• Eight user programmable programs
• Fog machine output control (compatible with ADJ Vaporizer, Stallion, MB-700, and others)
• XLR polarity switch
• Standard DMX-512 protocol
• MIDI compatible

Technical Specifications

DC Input
DC 12~20V, 500 m A min.
DMX OUT
3-pin XLR female
MIDI In/Thru
5 pin multiple socket
Patterns
12 patterns, including 8 programmable patterns and 4 built-in patterns
Dimensions
310x222x71mm
Steps
Up to 32 steps for each pattern
Weight
2.4 Kg
