ADJ UCIR24 Universal Infrared Remote Control(Adj Ucir24 Universal Infrared Remote Control)

ADJ UCIR24 Universal Infrared Remote Control

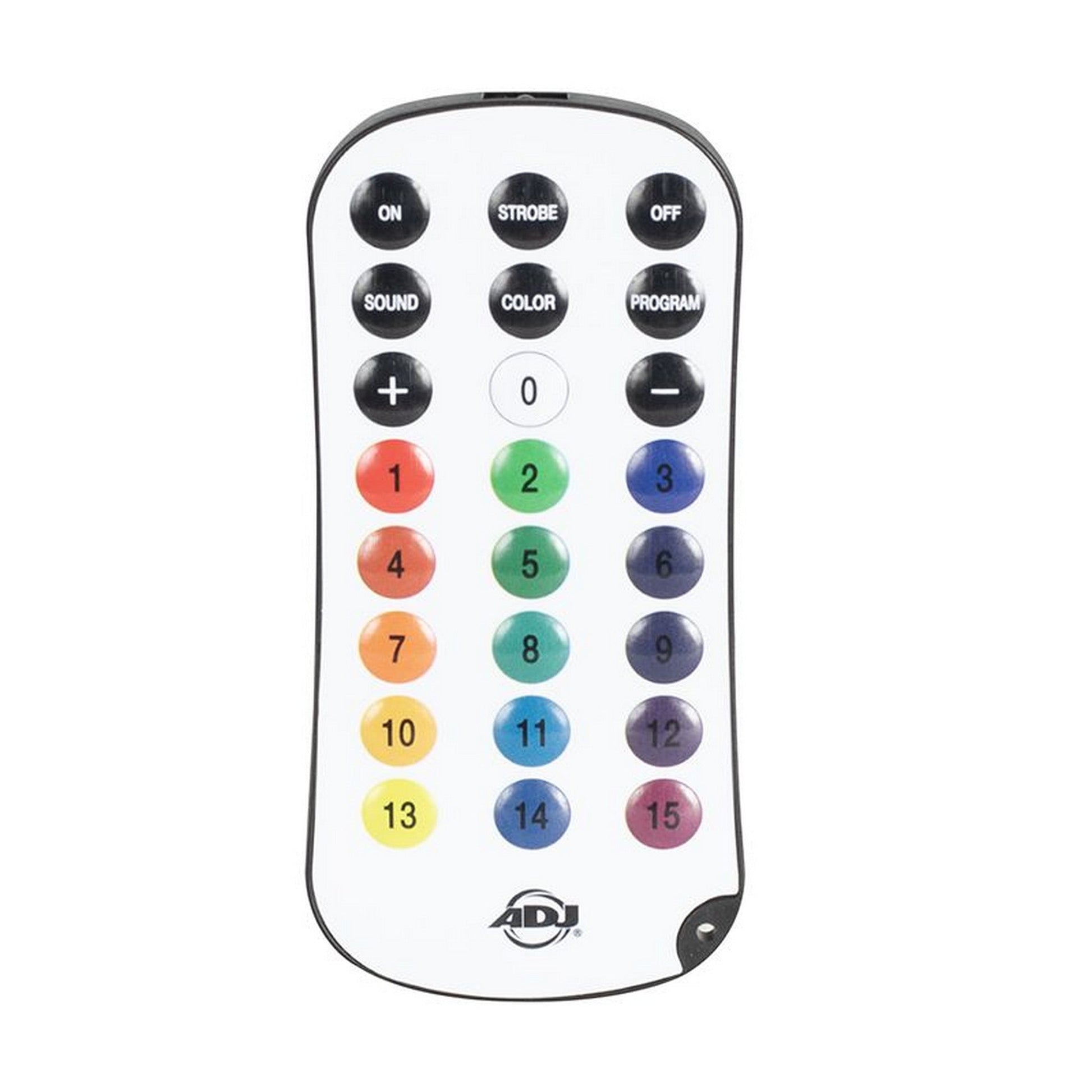

The UCIR24 infrared remote gives you control of various functions to a variety of ADJ fixtures with “IR” capabilities. To control the fixture, you must aim the remote towards the IR sensor and be no more than 30 feet away.

Key Features

• ON and OFF summarys: When the ON summary is pressed, the lighting fixture shall return to its last running state. When the OFF summary is pressed, the unit shall go into standby mode in a blackout state.
• STROBE: When the strobe summary is pressed, the unit shall strobe the last set color or program. The strobe rate can be adjusted by repeatedly pressing the + / - summarys. Pressing summarys 0-15, while the strobe function is active, will strobe the color associated with the summary that is pressed.
• SOUND: When the sound summary is pressed, the unit shall trigger the last selected program steps based on the primary unit’s microphone. The microphone sensitivity can then be adjusted to be more or less sensitive with the +/- summarys
• You can repeatedly press the +/-summarys to increase or decrease by one level or press and hold the +/- summarys to quickly increase or decrease sensitivity.
• COLOR: When the color summary is pressed, preset static colors can be selected by pressing summarys 0-15. The intensity for the set color can then be adjusted with the +/- summarys
• You can repeatedly press the +/- summarys to increase or decrease by one level or press and hold the +/- summarys to quickly increase or decrease intensity.
• PROGRAM: When the program summary is pressed, internal programs can be selected by pressing summarys 0-15 (Note: the fixture being controlled must support 15 programs for all summarys to be functional). The selected program run speed can be adjusted with the+/- summarys
• You can repeatedly press the +/- summarys to increase or decrease by one level or press and hold the +/- summarys to quickly increase or decrease the set program speed.
• + and - summarys: These summarys are used to increase/decrease strobe rate when the STROBE summary is active, increase/decrease mic sensitivity when the SOUND summary is active, increase/decrease brightness intensity when the COLOR summary is active, and increase/decrease program run speed when the PROGRAM summary is active.
• The +/- summarys can be repeatedly pressed to increase or decrease by one level or pressed and held to quickly adjust your strobe, sound sensitivity, brightness intensity or program speed settings.
• 0-15 summarys: These summarys are used to select preset static colors when the COLOR summary is active and to select internal programs when the PROGRAM summary is active. Colors stored in summarys 0-15 can be edited from the unit’s menu if desired by the user.

Technical Specifications

Battery Specs
Battery Type
Lithium Battery (CR2025)
Battery Energy
0.45WH (Watt Hours)
Battery Weight
2.5g
Battery Voltage
3V
Battery Capacity
150mAh
Total Lithium Ion Cells
1pc
Compatible Models
Mirage Q IP (Chrome and Black)
Element H IP (Chrome and Black)
