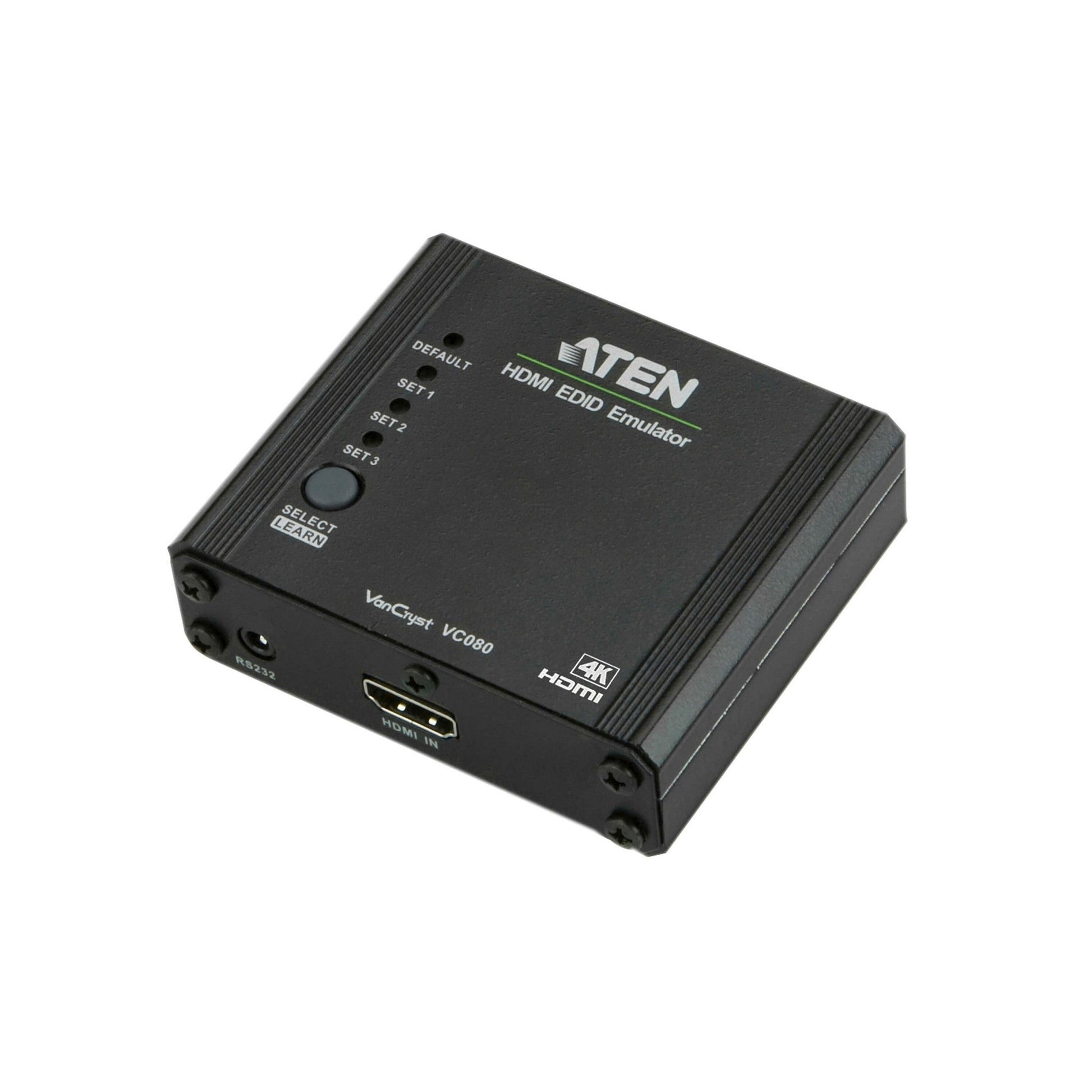

ATEN VC080 HDMI EDID Emulator

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the HDMI source device to efficiently optimize video resolution.

The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Key Features

• Superior video quality HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
• EDID Wizard allows a user an easy way to manage EDID settings
• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
• EDID mode selection Default, Learning , Programming
• HDMI (3D, Deep Color), HDCP compatible
• Supports Dolby True HD and DTS HD Master Audio
• Automatically manages EDID communication between connected devices
• Signaling rates up to 2.25 Gbits in support of 1080p display
• LED indication of video source devices
• Supports wide screen
• Supports hot-plugging

Technical Specifications

Operating Temp: 0-50°C
Storage Temp: -20-60°C
Humidity: 0-80% RH, Non-condensing
Housing: Metal
Weight: 0.3 lb. (0.15 kg)
Dimensions: 3.1 x 3.1 x 1 in.
