AtlasIED AH94-212-BSG 3-Way Stadium Horn Speaker, 90-Degree Horizontal by 40-Degree Vertical Sound Dispersion

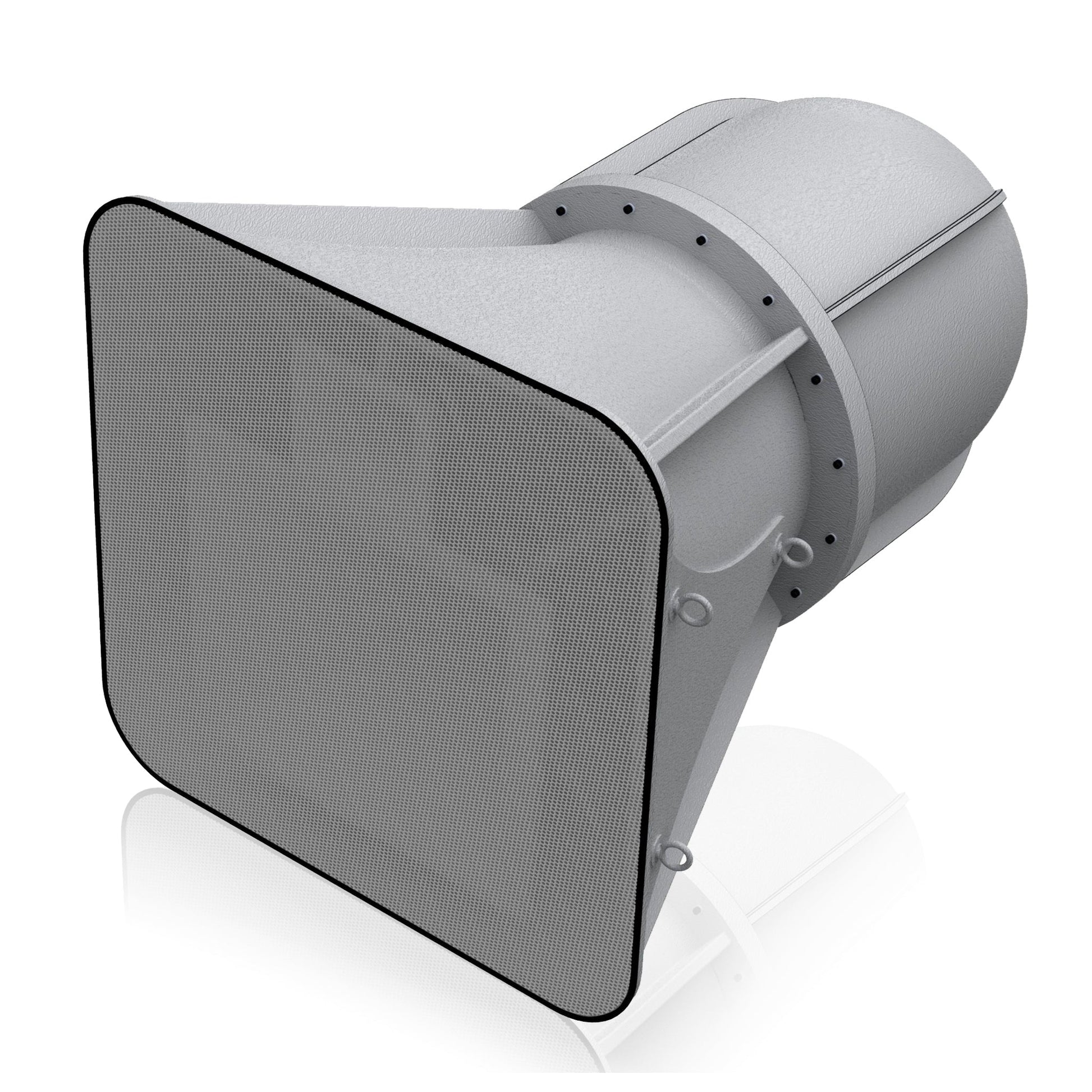

The AtlasIED AH94-212-BSG is a high-performance, three-way stadium horn speaker designed to deliver exceptional sound clarity and high sound pressure levels across expansive areas. Featuring dual 12" cast-frame woofers, a 1.5" exit compression midrange driver, and a 1" exit high-frequency compression driver, this speaker system provides 750 watts RMS power handling in full-range mode. Its 90° horizontal by 40° vertical dispersion pattern ensures broad and consistent coverage, making it ideal for large venues such as stadiums, arenas, and outdoor event spaces.

Constructed with a UV-resistant fiberglass enclosure and a three-stage, corrosion-resistant steel mesh filtering system, the AH94-212-BSG is highly weather and pest-resistant, ensuring reliable performance in various environmental conditions. The speaker is designed for 8Ω nominal impedance and can be easily bi-amped (LF/MF+HF) by removing the exterior jumper, allowing for greater system control and protection when used with high-powered systems. Suspension mounting is facilitated via seven 10mm internally reinforced forged eyebolts, ensuring secure and flexible installation options.

Key Features

• Three-way design with dual 12" cast-frame woofers, a 1.5" exit midrange driver, and a 1" exit high-frequency driver
• 750 watts RMS power handling in full-range mode
• 90° horizontal by 40° vertical dispersion pattern for wide and consistent coverage
• UV-resistant fiberglass enclosure with a three-stage, corrosion-resistant steel mesh filtering system
• 8Ω nominal impedance; bi-ampable for enhanced system control
• Includes seven 10mm internally reinforced forged eyebolts for secure suspension mounting

Technical Specifications

• Woofer Configuration: Dual 12" cast-frame woofers
• Midrange Driver: 1.5" exit compression driver
• High-Frequency Driver: 1" exit compression driver
• Power Handling: 750 watts RMS (full-range mode)
• Dispersion Pattern: 90° horizontal x 40° vertical
• Impedance: 8Ω nominal
• Enclosure: UV-resistant fiberglass with corrosion-resistant steel mesh filtering system
• Mounting: Seven 10mm internally reinforced forged eyebolts
• Warranty: 60 months (5 years)

What’s Included in the Box

• AtlasIED AH94-212-BSG 3-Way Stadium Horn Speaker
• Seven 10mm internally reinforced forged eyebolts for suspension mounting
• Recessed weather-resistant terminal block for secure connections
• Product documentation and warranty information
