AtlasIED C10AT72FRK Fire Rated 8-Inch Dual Cone Speaker With 4-Watt 25V/70V Transformer, Enclosure, And Baffle(Atlasied C10at72frk Fire Rated 8 Inch Dual Cone Speaker With 4 Watt 25v 70v Transformer Enclosure And Baffle)

AtlasIED C10AT72FRK Fire Rated 8-Inch Dual Cone Speaker with 4-Watt 25V/70V Transformer, Enclosure, and Baffle

The AtlasIED C10AT72FRK is a complete fire-rated 8-Inch in-ceiling speaker assembly designed for high-performance audio with enhanced safety compliance. Ideal for commercial and institutional environments, this UL-classified system includes a factory-mounted 4-Watt 25V/70V transformer and delivers excellent sound dispersion with a dual-cone loudspeaker design. Built to meet ANSI/UL263 fire-resistance standards, it is rated for up to three hours of ceiling protection, making it a dependable choice for life safety and paging systems.

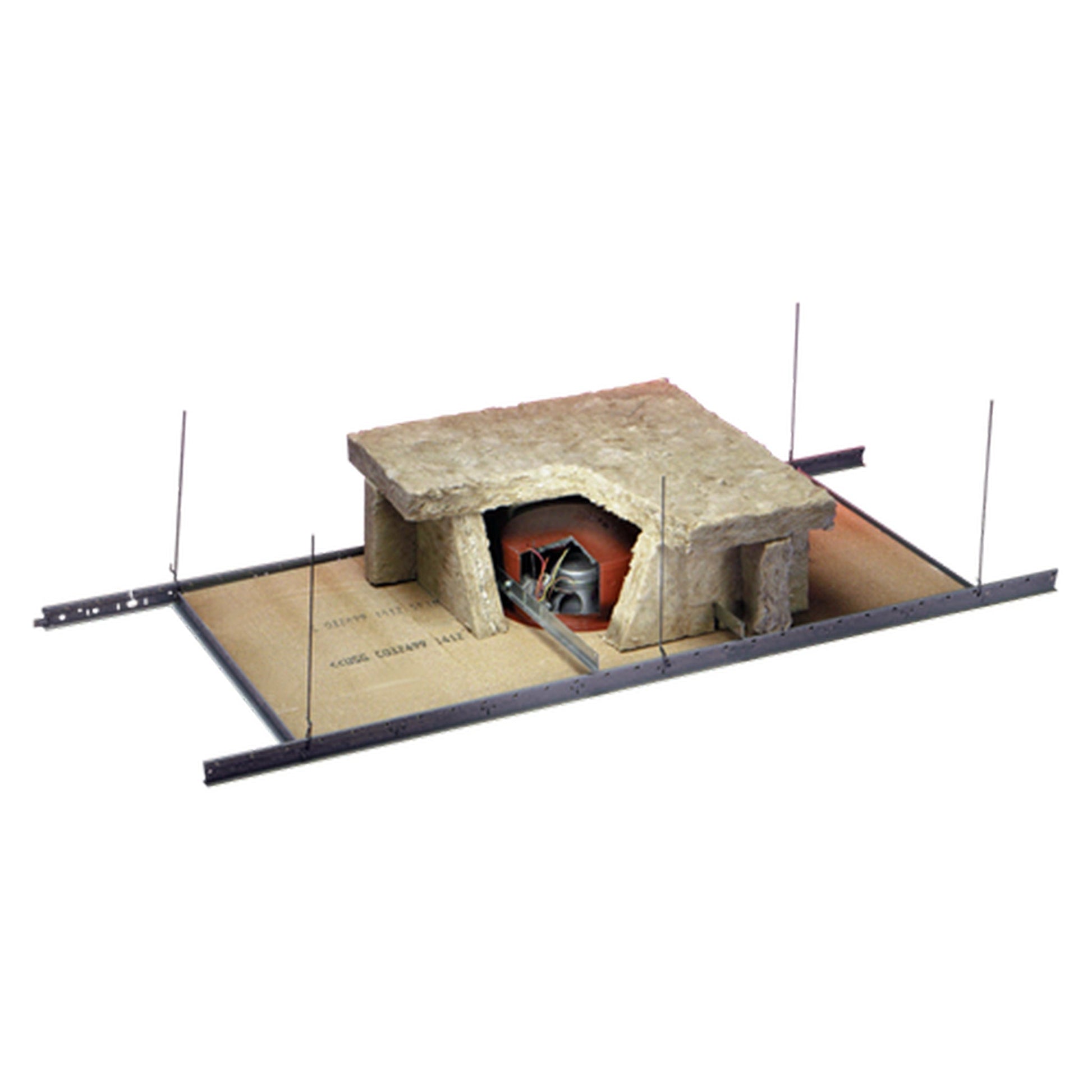

Each C10AT72FRK package includes everything needed for straightforward installation in suspended tile ceilings. Inside the box, you'll find the 8-Inch C10AT72FR loudspeaker, a UL-listed 51-8FR baffle, and a fire-rated enclosure kit with pre-cut fiber panels, metal enclosure, adjustable rail set, and all required mounting hardware. With a dispersion angle of 105-Degree and frequency response tailored for clear voice and music reproduction, this all-in-one solution saves installation time while maintaining the highest safety and performance standards.

Key Features

• Fire-rated ceiling speaker assembly compliant with ANSI/UL263 (up to 3 hours)
• Includes factory-mounted 4-Watt 25V/70V line-matching transformer
• 105-Degree dispersion for wide audio coverage
• Ideal for commercial paging, BGM, and life safety applications
• Pre-assembled components reduce installation time and complexity

Technical Specifications

• Speaker Type: 8-Inch Dual Cone
• Transformer: LT-72 (25V/70V, 4-Watt)
• Frequency Response: 100Hz - 10kHz
• Sensitivity: 97dB Peak / 94dB Average
• Dispersion: 105-Degree
• Fire Rating: ANSI/UL263 (ASTM E119, NFPA 251)
• Included Baffle: 51-8FR (UL-listed)
• Included Enclosure: Fire-rated fiber panel kit with metal housing, rail set, and hardware
• Warranty Period: 60 months from date of purchase

What’s in the Box

• C10AT72FR 8-Inch Dual Cone Speaker with Factory-Installed LT-72 Transformer
• 51-8FR UL-Listed Fire-Rated Baffle

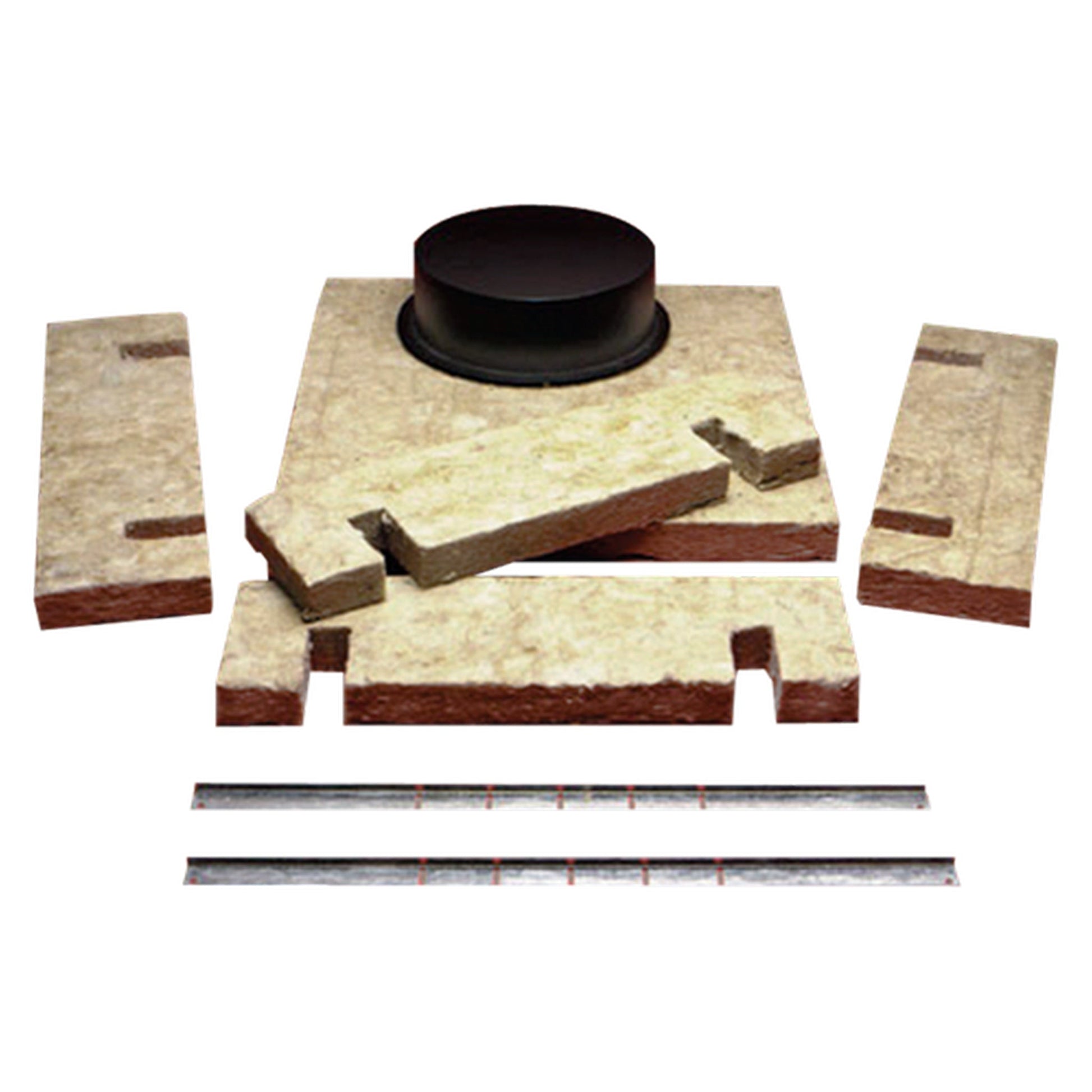

• Fire-Rated Enclosure Kit (Fiber Panels, Metal Enclosure, Adjustable Rails, Mounting Hardware)
