AtlasIED Certified 15 Speaker Full Range Line Array Speaker System(Atlasied Certified 15 Speaker Full Range Line Array Speaker System)

AtlasIED Certified 15 Speaker Full Range Line Array Speaker System

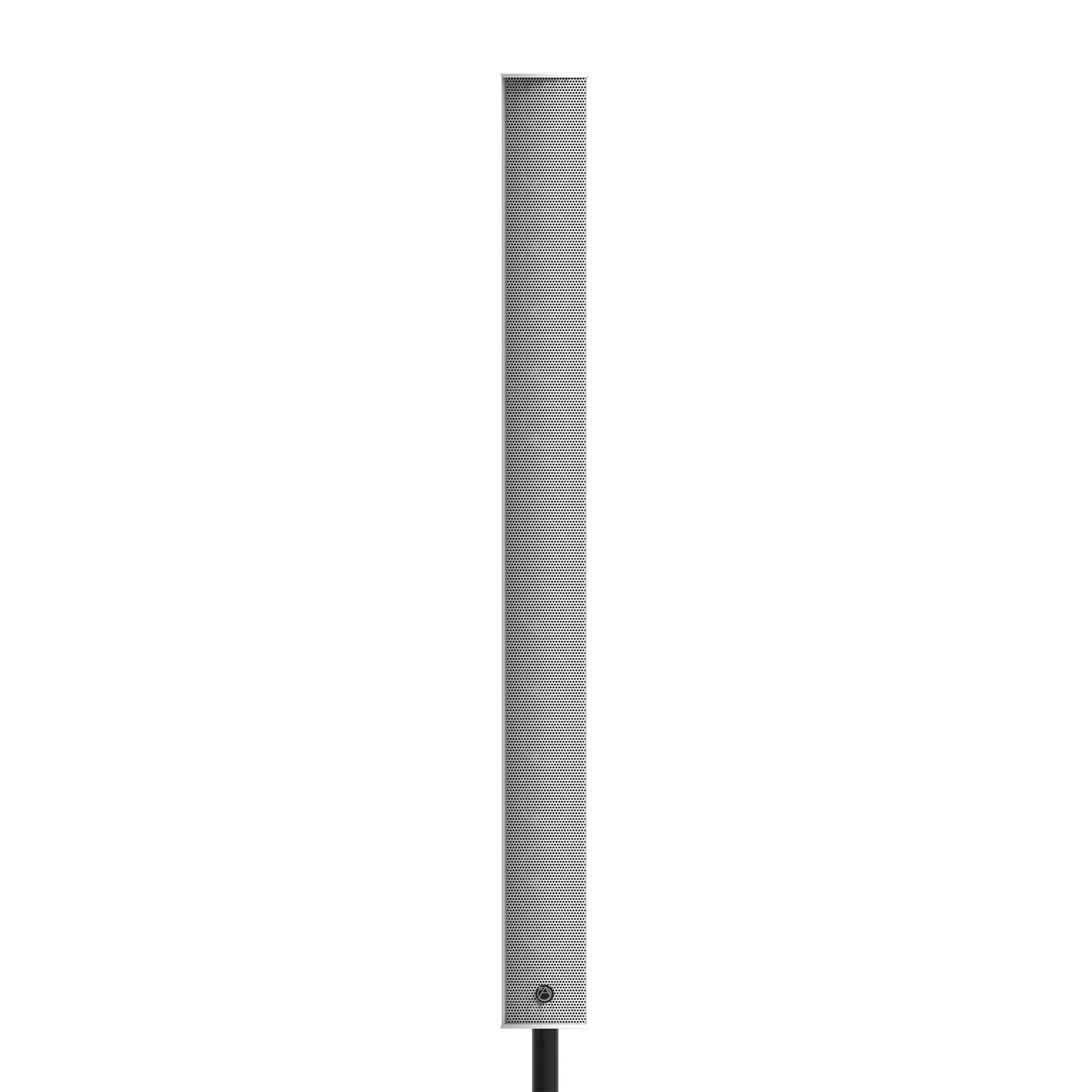

The AtlasIED ALA15TAW is an EN54-24 certified passive column line array designed for crystal-clear speech and music reproduction in challenging acoustic environments. Featuring fifteen tightly-placed 3-inch full-range drivers paired with four 22 mm high-frequency tweeters, this slim-profile aluminum speaker delivers powerful, intelligible sound while maintaining a subtle visual footprint—perfect for museums, houses of worship, retail spaces, and transportation hubs.

Delivering 600 W RMS at 6 Ω and supporting multiple 70 V/100 V transformer taps (60 W, 30 W, 15 W, 7.5 W), the ALA15TAW offers installation flexibility and balanced coverage. Its 135° horizontal × 40° vertical dispersion ensures even audio distribution, while the included wall-mount bracket provides ±10° vertical tilt. Available in black or white powder coat finish to suit any aesthetic, this column speaker delivers durability and design-conscious performance over its compact 49.37″ × 4.61″ × 5.43″ frame.

Key Features

• EN54‑24 certified column line array speaker
• Fifteen 3″ full-range drivers + four 22 mm HF tweeters
• Wide 135° horizontal × 40° vertical sound coverage
• 600 W RMS with 70/100 V transformer taps (60 W–7.5 W)

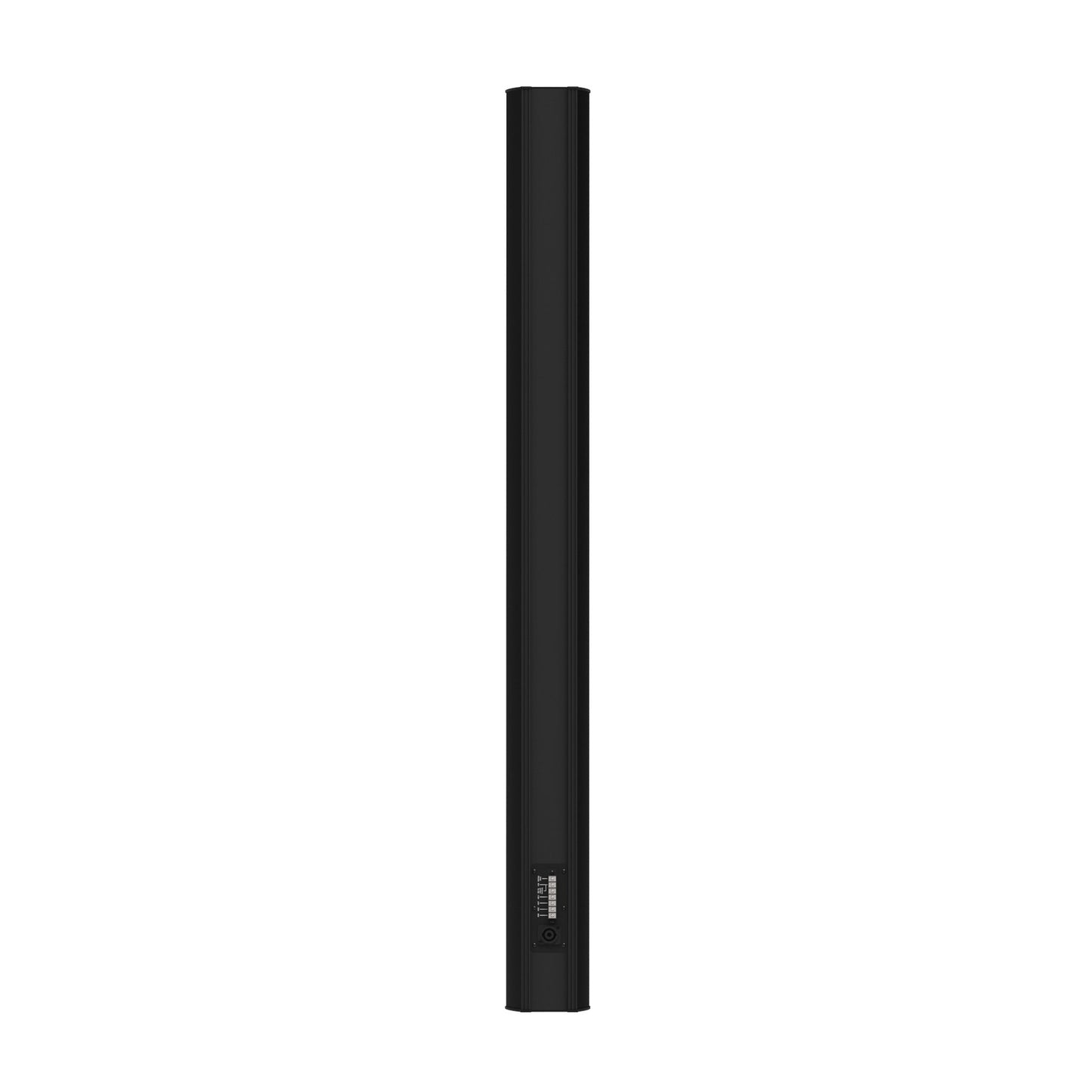

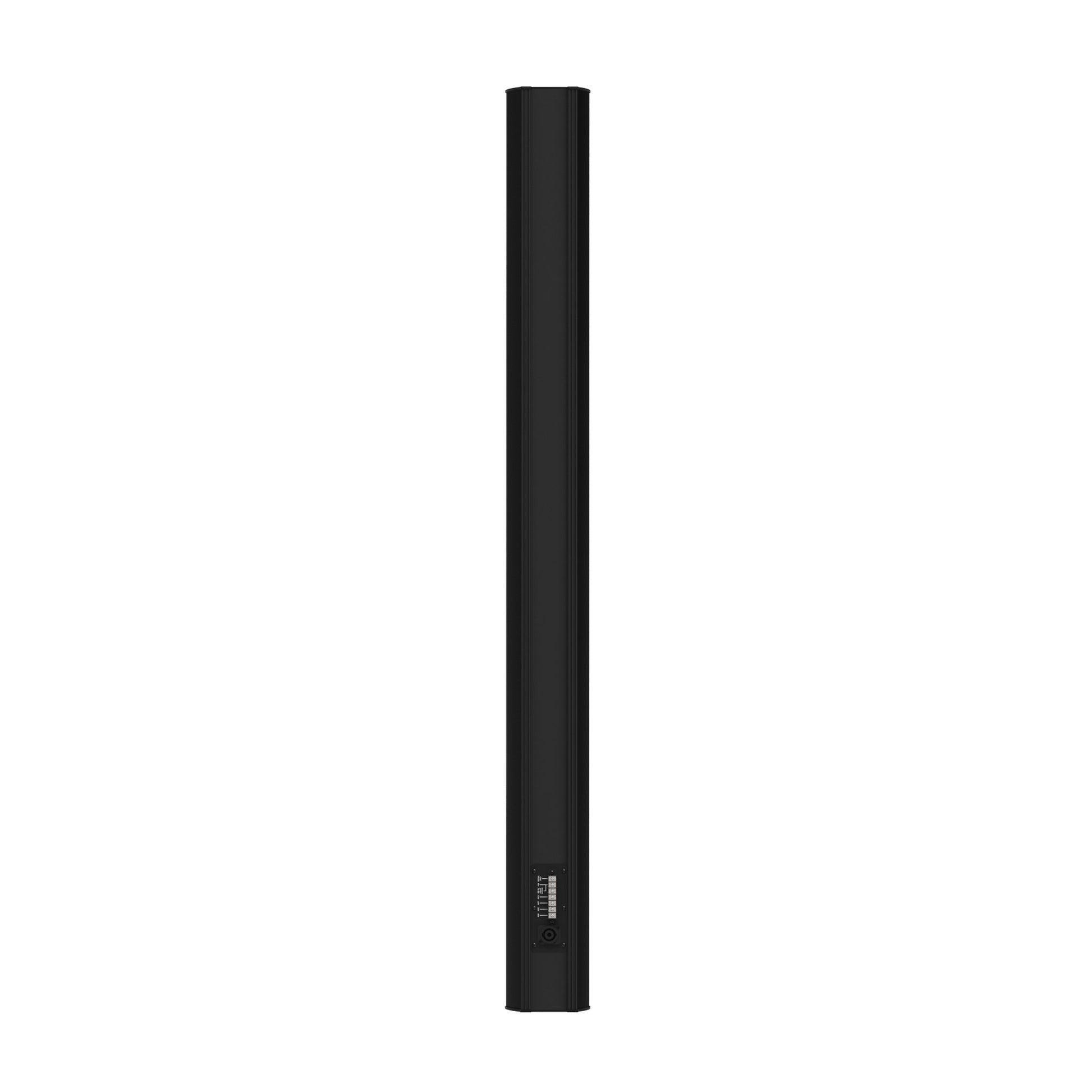

• Available in black or white powder coat finish
• Built-in wall bracket with ±10° vertical tilt
• Compact extruded aluminum design with modern aesthetics
• IP33C weather rating; five‑year warranty

Technical Specifications

• Power Handling: 600 W RMS at 6 Ω
• Transformer Taps: 60 W, 30 W, 15 W, 7.5 W (70.7 V/100 V)
• Frequency Response: 160 Hz – 20 kHz (±5 dB)
• Sensitivity: 96 dB @ 1 W/1 m
• Dispersion: 135° (H) × 40° (V)
• Impedance: 6 Ω nominal
• Dimensions: 49.37″ (H) × 4.61″ (W) × 5.43″ (D)
• Weight: 29.7 lbs (13.47 kg)
• Finish: Black or White powder coat
• Warranty: 60 months

What’s Included in the Box

• AtlasIED ALA15TAW column line array speaker (black or white)

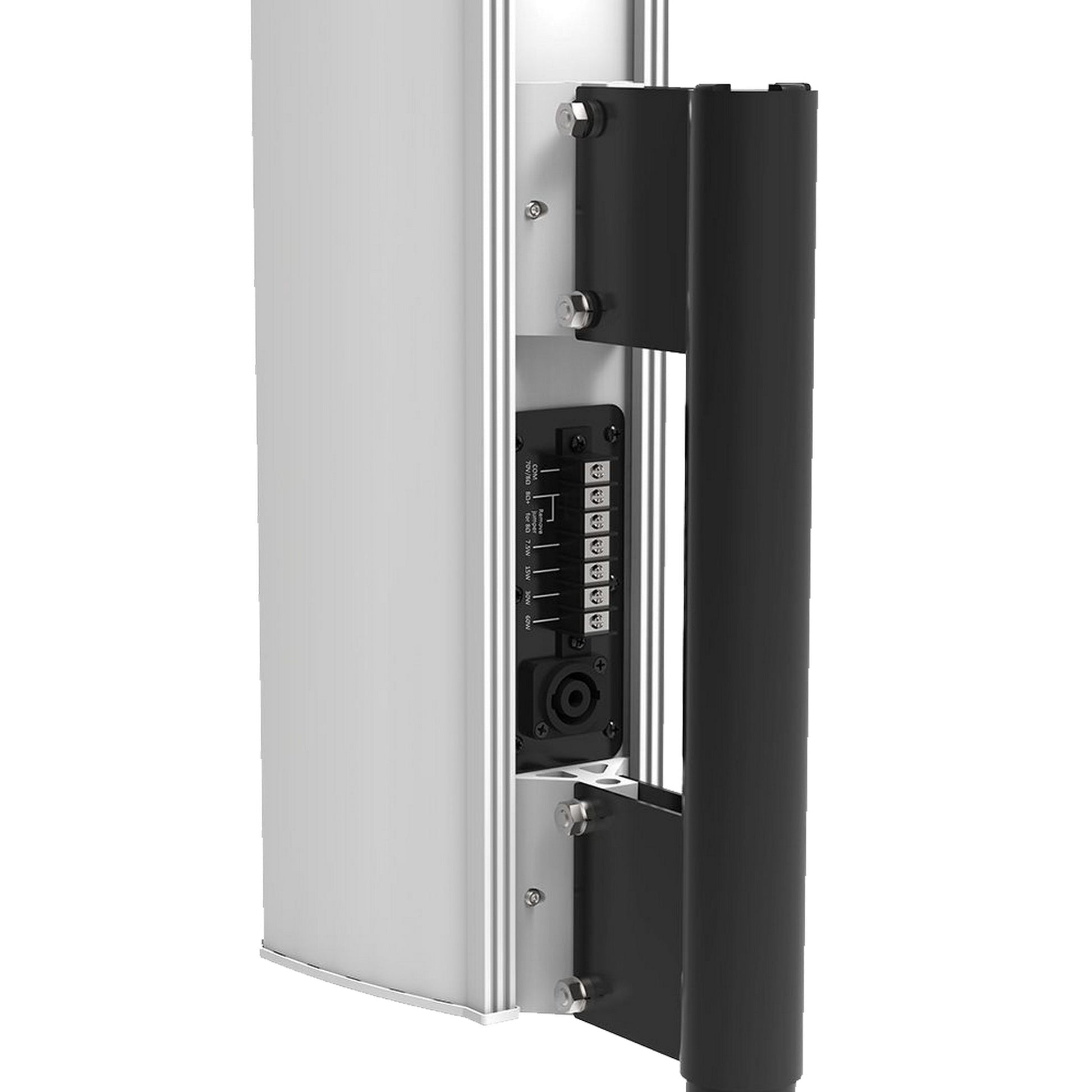

• Wall-mount bracket with vertical slide and tilt adjustment
• Installation hardware and templates
• Product documentation and five-year warranty
