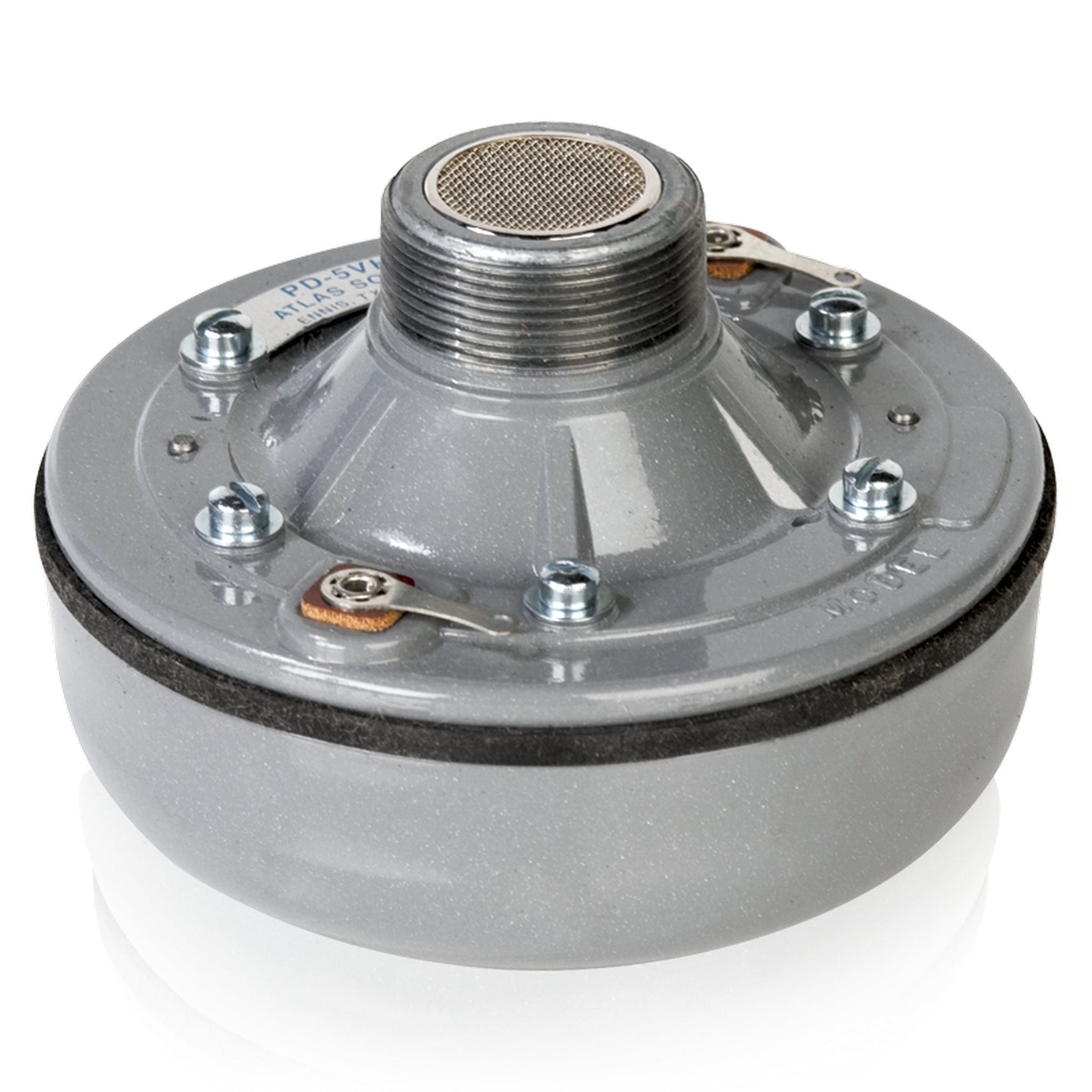

AtlasIED PD‑5VH 40W Environmental Compression Driver with Alnico Magnet, 16 Ohms

The AtlasIED PD‑5VH is a high-output, environmentally-resistant compression driver designed for use in public address, voice reinforcement, and emergency signaling systems. It is optimized for clear midrange performance and high intelligibility in large-area indoor or outdoor installations.

Engineered with a 2-inch diameter voice coil and Alnico V-DG magnet structure, the PD-5VH ensures excellent thermal stability and performance under demanding conditions. With 40 watts of power handling at 16 ohms, the unit delivers exceptional sensitivity and broad frequency response in the range of 110 Hz to 4.1 kHz. Standard 1-3/8″–18 male threads make it compatible with a wide range of horn flares.

Key Features

• Power Handling: 40 W at 16 Ω
• Voice Coil: 2″ (50.8 mm)
• Magnet: Alnico V-DG for high thermal stability
• Frequency Response: 110 Hz – 4.1 kHz (±5 dB)
• Sensitivity: 110.7 dB (average, 110 Hz – 4.1 kHz)
• Construction: Weather-resistant, baked epoxy finish
• Mounting: Standard 1-3/8″–18 male threads
• Warranty: 60 months

Technical Specifications

• Dimensions: 6⅜″ W × 5⅛″ H (16.2 × 13.02 cm)
• Weight: 4.10 lbs (1.86 kg)
• Shipping Weight: 5.00 lbs (2.27 kg)
• Package Dimensions: 5.16″ × 4.96″ × 3.78″ (13.11 × 12.6 × 9.6 cm)
• Frequency Response: 110 Hz – 4.1 kHz (±5 dB)
• Sensitivity: 110.7 dB average
• Impedance: 16 Ω nominal
• Voice Coil Diameter: 2″ (50.8 mm)
• Magnet Type: Alnico V-DG
• Mounting Thread: 1-3/8″–18 male
• Finish: Gray baked epoxy

What's Included

• AtlasIED PD-5VH compression driver
• Protective terminal cover
