AtlasIED PM4FA 4-Inch 2-Way Pendant Mount Speaker(Atlasied Pm4fa 4 Inch 2 Way Pendant Mount Speaker)

AtlasIED PM4FA 4-Inch 2-Way Pendant Mount Speaker

The AtlasIED PM4FA is a compact, 4″ pendant-mount speaker with full‑range sound and a built‑in 16 W 70 V transformer. Ideal for commercial audio installations such as retail spaces, restaurants, transportation hubs, and paging systems, this speaker delivers clear music and voice coverage in an attractive, ceiling-hung form factor.

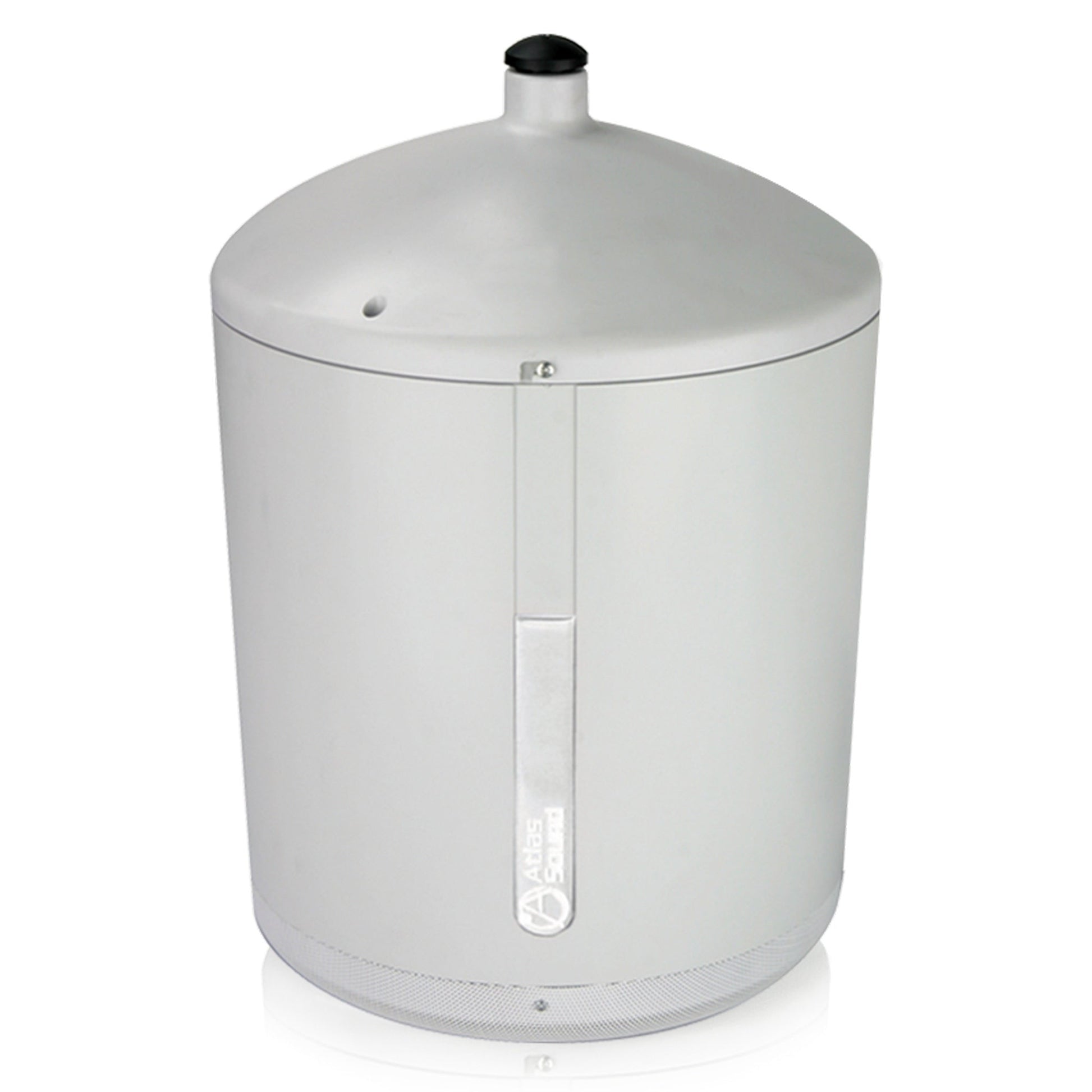

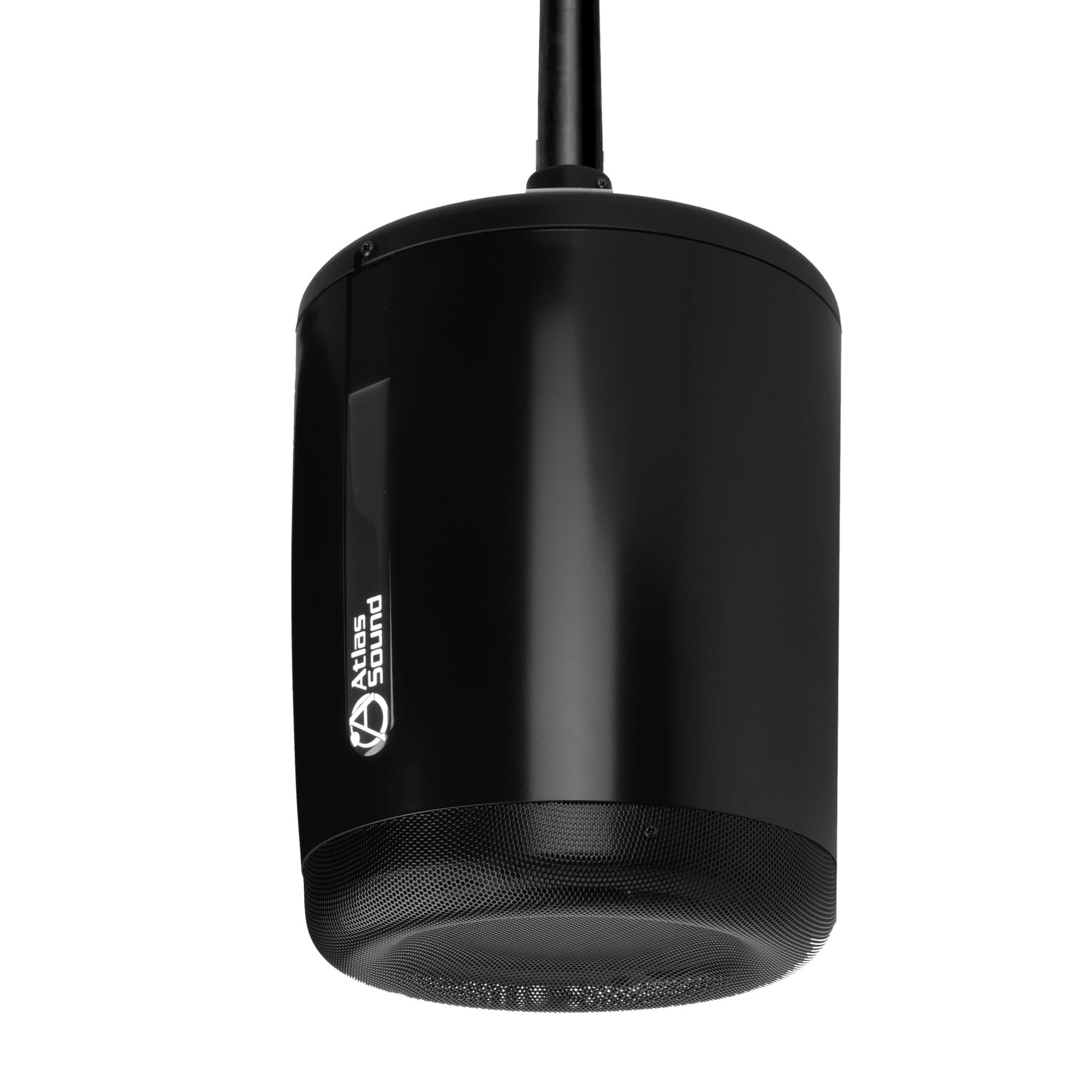

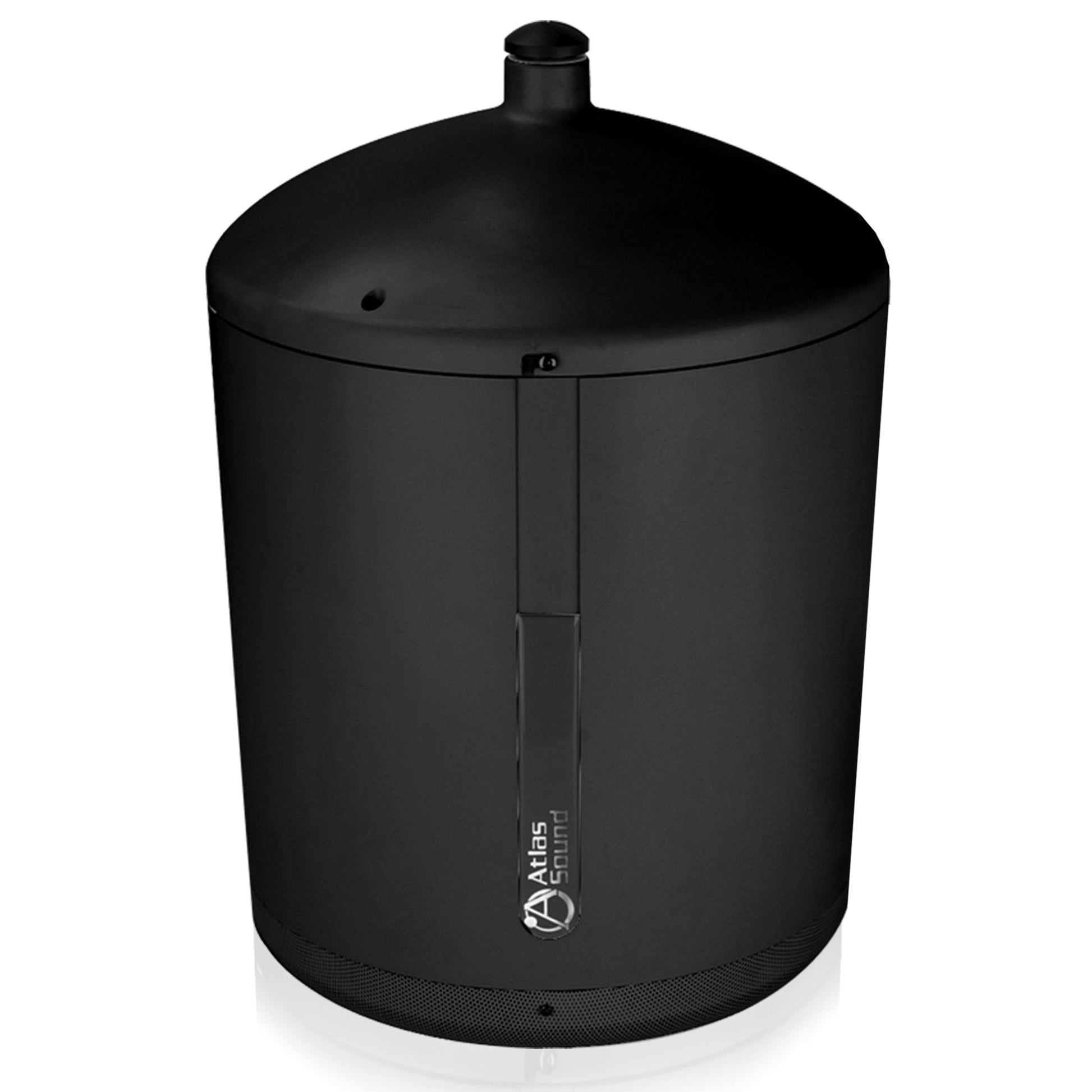

Available in sleek matte **Black** (PM4FA‑B) or crisp **White** (PM4FA‑WH), the PM4FA blends seamlessly into any décor. Its 130° dispersion pattern and 70 Hz–20 kHz frequency range ensure even sound distribution. Includes 3 m suspension cable and hardware for easy installation via open-beam or standard ceiling fan mounts.

Key Features

• Driver: 4″ (10 cm) FA134 woofer with coaxial PEI dome tweeter
• Transformer Taps: 70 V taps at 1, 2, 4, 8, 16 W + 8 Ω direct bypass
• Coverage: 130° dispersion (±65° off-axis)
• Power Handling: 25 W RMS @ 8 Ω
• Frequency Response: 70 Hz – 20 kHz (±5 dB)
• Sensitivity: 88 dB (1 W/1 m)
• Mounting: 3 m cable with self‑gripping ferrule; ¾″ ceiling fan down‑pipe compatible
• Enclosure: Ported bass-reflex design, press-fit aluminum grille
• IP Rating: IP‑30 for indoor use
• Finish: Black (PM4FA‑B) or White (PM4FA‑WH)
• Warranty: 60 months

Technical Specifications

• Enclosure height: 13.87″ (35.2 cm)
• Diameter: 9.25″ (23.5 cm)
• Weight: 13 lb (5.89 kg)
• Power rating: 25 W RMS @ 8 Ω
• Taps: 1, 2, 4, 8, 16 W @ 70.7 V + 8 Ω
• Frequency response: 70 Hz–20 kHz
• Sensitivity: 88 dB
• Coverage angle: 130°
• Cable included: 3 m suspension cable
• Mount type: Pendant-mount

What’s Included

• PM4FA speaker (Black or White)
• 3 m suspension cable with ferrule
• Mounting hardware
• User manual
