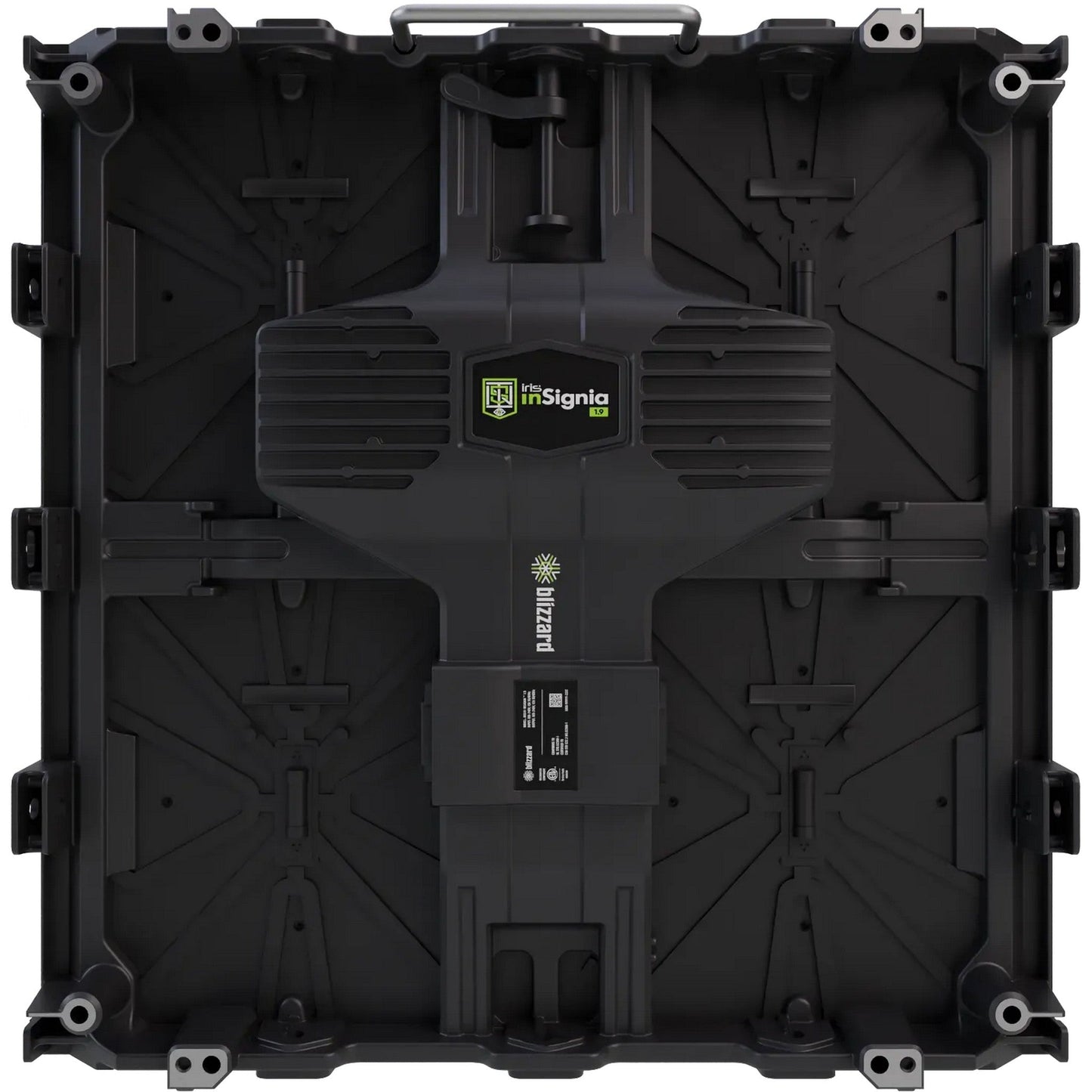

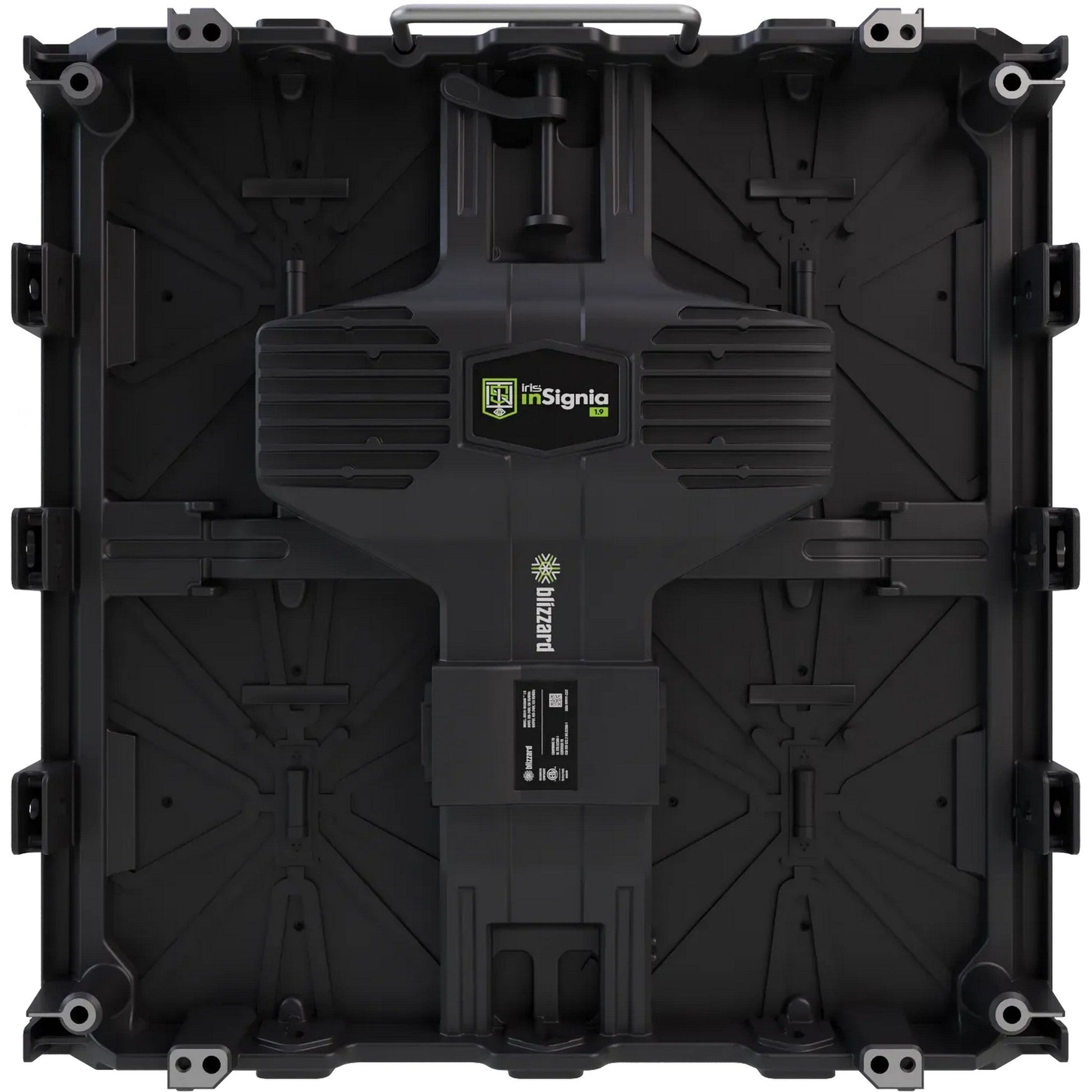

IRis Insignia LED Video Wall Panel - High-Resolution Indoor Display

The IRis Insignia 1.9mm LED video wall panel is a cutting-edge display solution designed to deliver exceptional visual experiences in indoor environments. With a fine pixel pitch of 1.9 mm , 2.6mm, 2.9mm, 3.9mm this panel offers stunning image clarity and detail, making it ideal for applications such as retail signage, corporate lobbies, control rooms, and digital signage networks.

These Insignia panels are built with advanced technology, including NovaStar A8s receiving cards that support HDR10 and HLG formats. This ensures that the panel can display high-quality content with accurate colors and contrast. Additionally, the panel's precision mechanics allow for seamless 90-degree splicing, making it easy to create large-scale video walls with consistent image quality.

Designed with versatility in mind, the Insignia series is suitable for a wide range of commercial applications. The panels are easy to install and can be customized to fit various spaces. Whether you need a small display or a large video wall, the Insignia series has you covered.

Key Features

1.9 mm , 2.6mm, 2.9mm, 3.9mm Pixel Pitch 800 Nit Brightness IP40 (front) / IP21 (rear) NovaStar A8s receiving cards with HDR10 / HLG support 90-degree splicing capability Indoor rated Easy installation Customizable sizes

Technical Specifications

Brightness: 800 Nit Certifications: FCC, ETL, CE, RoHS Color Depth: 14 Bit Curvature: 0 - 90 Degrees Grayscale: 14 Bit HDR: HDR10-Optima / HLG IP Rating: IP40 (front) / IP21 (rear) Input Power: 167 W/m2 LED Configuration: SMD 1415 LEDs Lifespan: 100,000 Hours Max Power Usage: 125W Module Quantity: 2 x 2 Pixel Density: 262,144 Dots/m2 Receiving Card: NovaStar A8s-N (Customizable with Brompton processing) Refresh Rate: Greater than or equal to 3840 Scan Mode: 1/32 Primary Usage: Signage, Worship Serviceability: Front Special Features: Wide curvature capabilities Warranty: 7 Year Working Humidity: 10% - 90% RH Working Temperature: -10 Degrees Celsius to +40 Degrees Celsius
