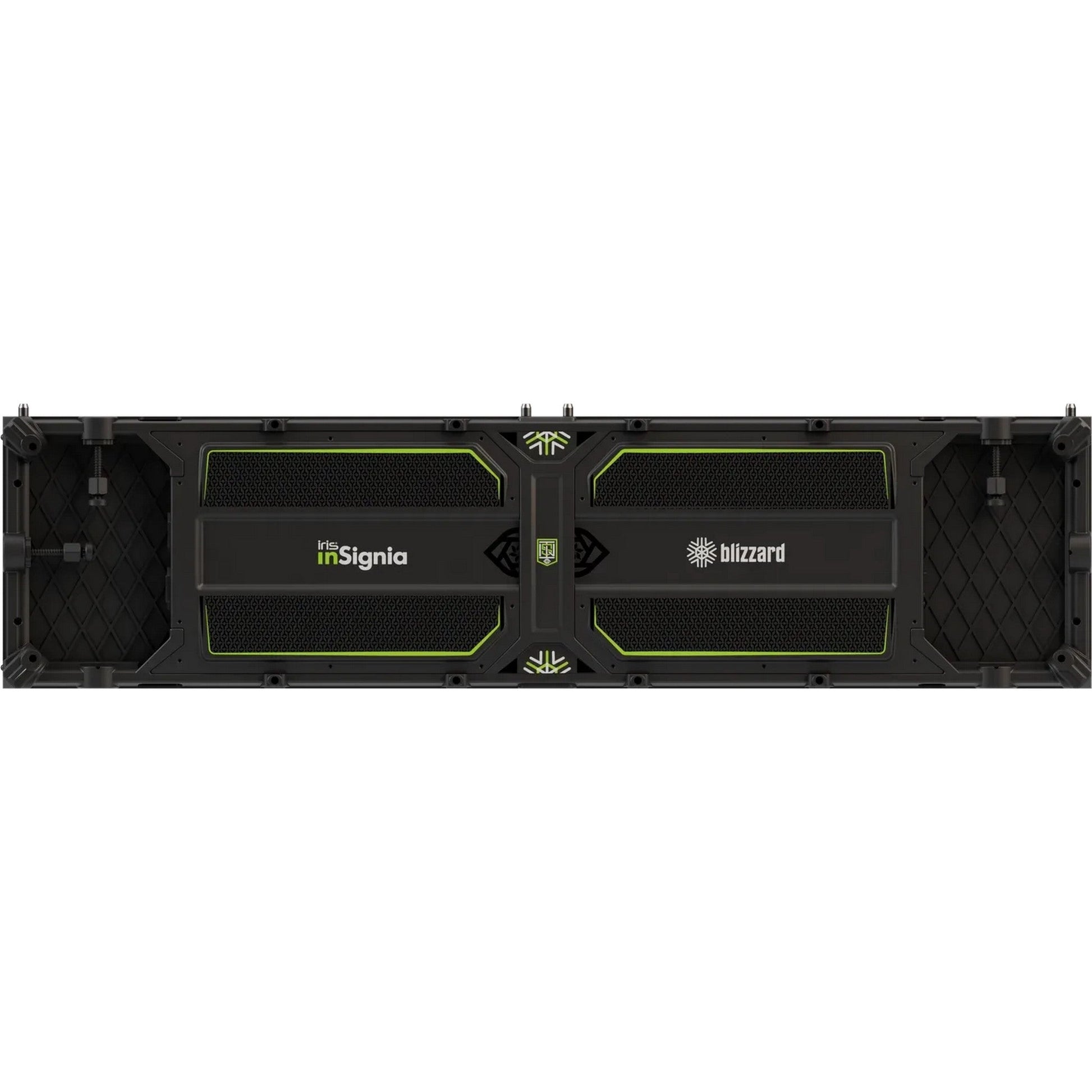

IRis Insignia 2.5, 3.1, 4.0mm LED Video Wall Panels - High-Resolution Indoor Display

The IRis Insignia 2.5, 3.1, and 4.0mm LED video wall panels are versatile display solutions designed to excel in indoor commercial environments. These panels deliver exceptional image quality, clarity, and visual impact, making them ideal for applications such as retail signage, corporate lobbies, control rooms, and digital signage networks.

With a range of pixel pitch options, the Insignia series offers flexibility to suit various project requirements and budget considerations. The 2.5mm pixel pitch provides exceptional detail for close-up viewing, the 3.1mm offers a balance of resolution and cost-effectiveness, while the 4.0mm is suitable for larger displays and wider viewing distances.

The Insignia panels incorporate advanced technology, including NovaStar A8s receiving cards that support HDR10 and HLG formats. This ensures accurate color reproduction, enhanced contrast, and overall image quality. The panels' precision mechanics allow for seamless 90-degree splicing, making it easy to create large-scale video walls with consistent visuals.

Designed with user-friendliness in mind, the Insignia series prioritizes easy installation and customization. The panels feature a modular design that allows for quick and efficient setup, saving time and resources. Additionally, the series offers flexible sizing options to accommodate various spaces and display requirements.

Key Features

2.5, 3.1, 4.0 mm Pixel Pitch Options 1000 Nit Brightness IP40 (front) / IP21 (rear) NovaStar A8s receiving cards with HDR10 / HLG support 90-degree splicing capability Indoor rated Easy installation Customizable sizes

Technical Specifications

Brightness: 1000 Nits Certifications: FCC, ETL, CE, RoHS Color Depth: 14 Bit Curvature: N/A Grayscale: 14 Bit HDR: HDR10-Optima / HLG IP Rating: IP40 (front) / IP21 (rear) Input Power: 462 W/m2 LED Configuration: SMD 2020 LEDs Lifespan: 100,000 Hours Max Power Usage: 175W Module Quantity: 4 x 1 Pixel Density: 43,264 Dots/m2 Receiving Card: NovaStar A8s-N (Customizable with Brompton processing) Refresh Rate: Greater than or equal to 3840 Scan Mode: 1/32 Primary Usage: Signage Serviceability: Front Special Features: Warranty Working Humidity: 10% - 90% RH Working Temperature: -10 Degrees Celsius to +40 Degrees Celsius
