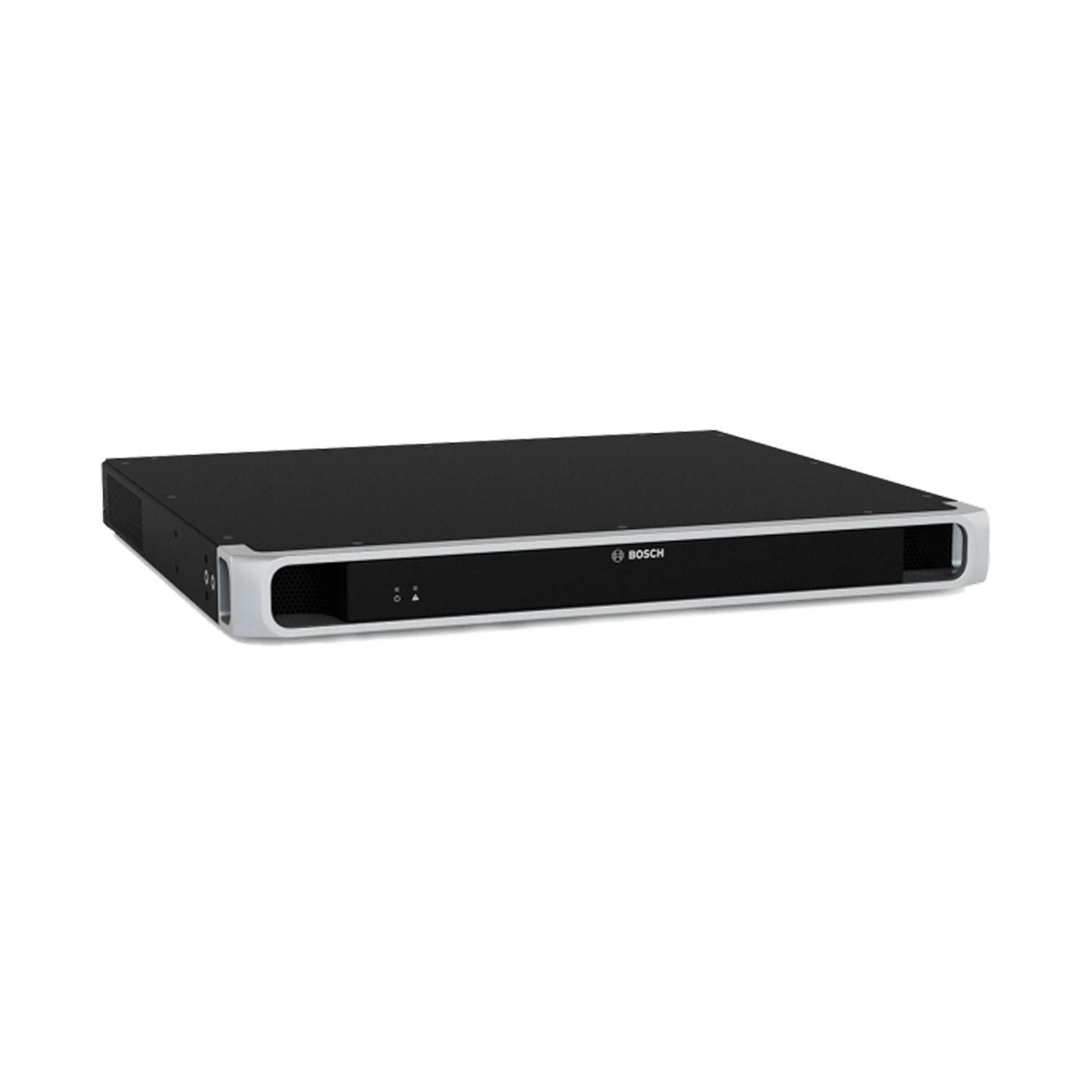

Bosch INT-TXO OMNEO 4-Channel Transmitter for DICENTIS Wired Conference System

The INT-TXO is the central element in the INTEGRUS system that allows INTEGRUS to interact with the DICENTIS Conference System. The INT-TXO modulates the signals into carrier waves and transmits them to the radiators in the room. When connected to a DICENTIS system, the Transmitter OMNEO is fully controlled by DICENTIS and does not require any configuration.

The Transmitter OMNEO can be connected to, and controlled by, a DICENTIS system. In this setup, it can also be powered through a DICENTIS cable, including the RSTP functionality.

The INT-TXO can be switched to the slave mode to act as a repeater of another INT-TXO. In this case, the signal is received through the coaxial input and synchronizes with the master INT-TXO. The slave mode is enabled through a switch on the rear of the device.

Key Features

• Fully integrated with the DICENTIS Conference System, no configuration required
• Excellent audio quality
• 4 channels out of the box
• Up to 28 licenses can be added to the INT-TXO for a total of 31 languages and 1 floor
• Infrared allows freedom of movement for participants

Technical Specifications

Dimensions (H x W x D) (in)
1.75 x 17.40 x 15.35 in
Dimensions (H x W x D) (mm)
44.45 x 442 x 390 mm
Mounting type
Rack-mounted; Tabletop
Nominal voltage (VDC)
48 VDC
Operating relative humidity, non-condensing (%)
5 - 95 %
Operating temperature (Degrees C)
5 - 45 Degrees C
Operating temperature (Degrees F)
41 - 113 Degrees F
Power consumption (W)
10 W
Storage temperature (Degrees C)
5 - 45 Degrees C
Storage temperature (Degrees F)
41 - 113 Degrees F
