Camplex CMX-FMC-6001 Fiber Media Converter Ethernet SFP To SFP(Camplex Cmx Fmc 6001 Fiber Media Converter Ethernet Sfp To Sfp)

Camplex CMX-FMC-6001 Fiber Media Converter Ethernet SFP to SFP

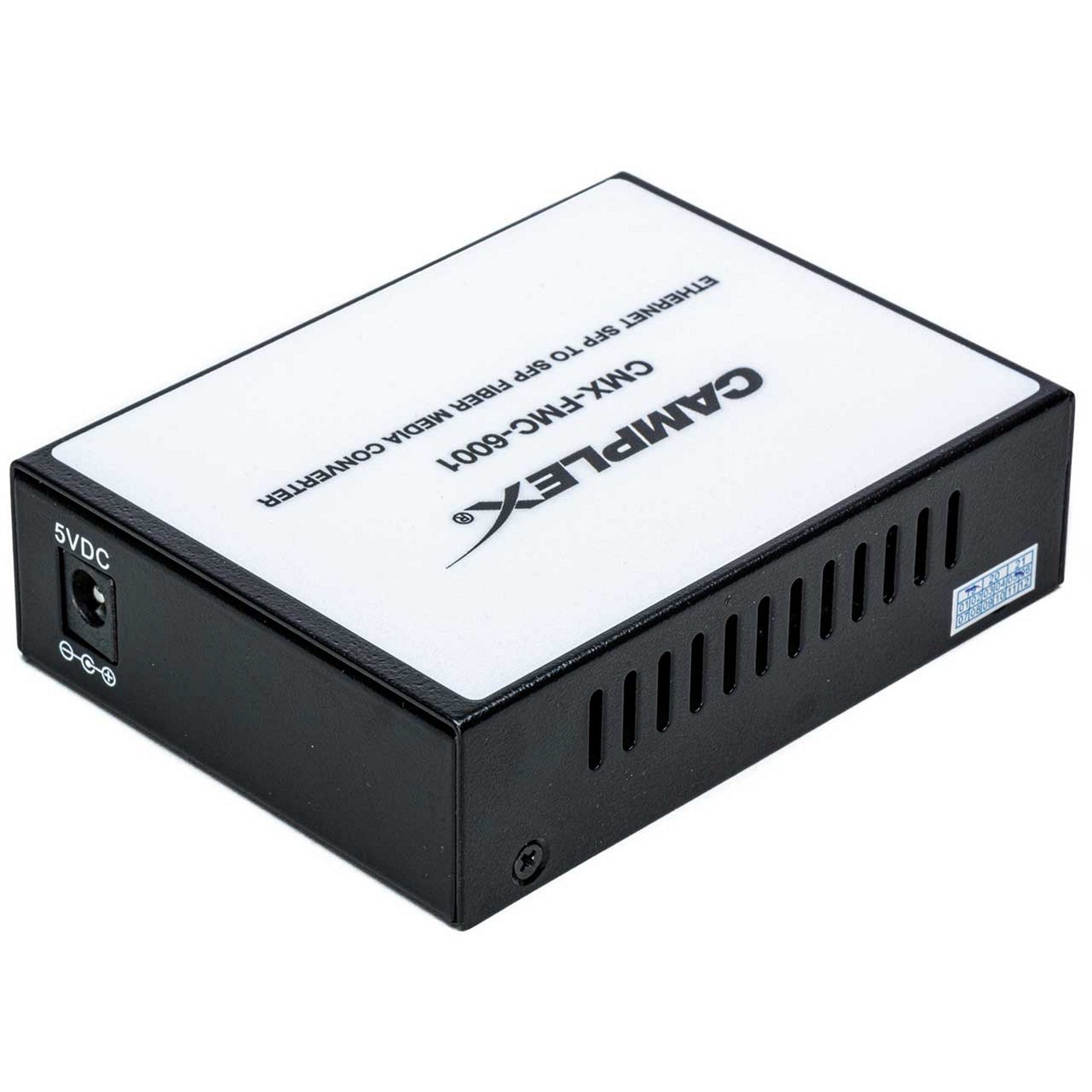

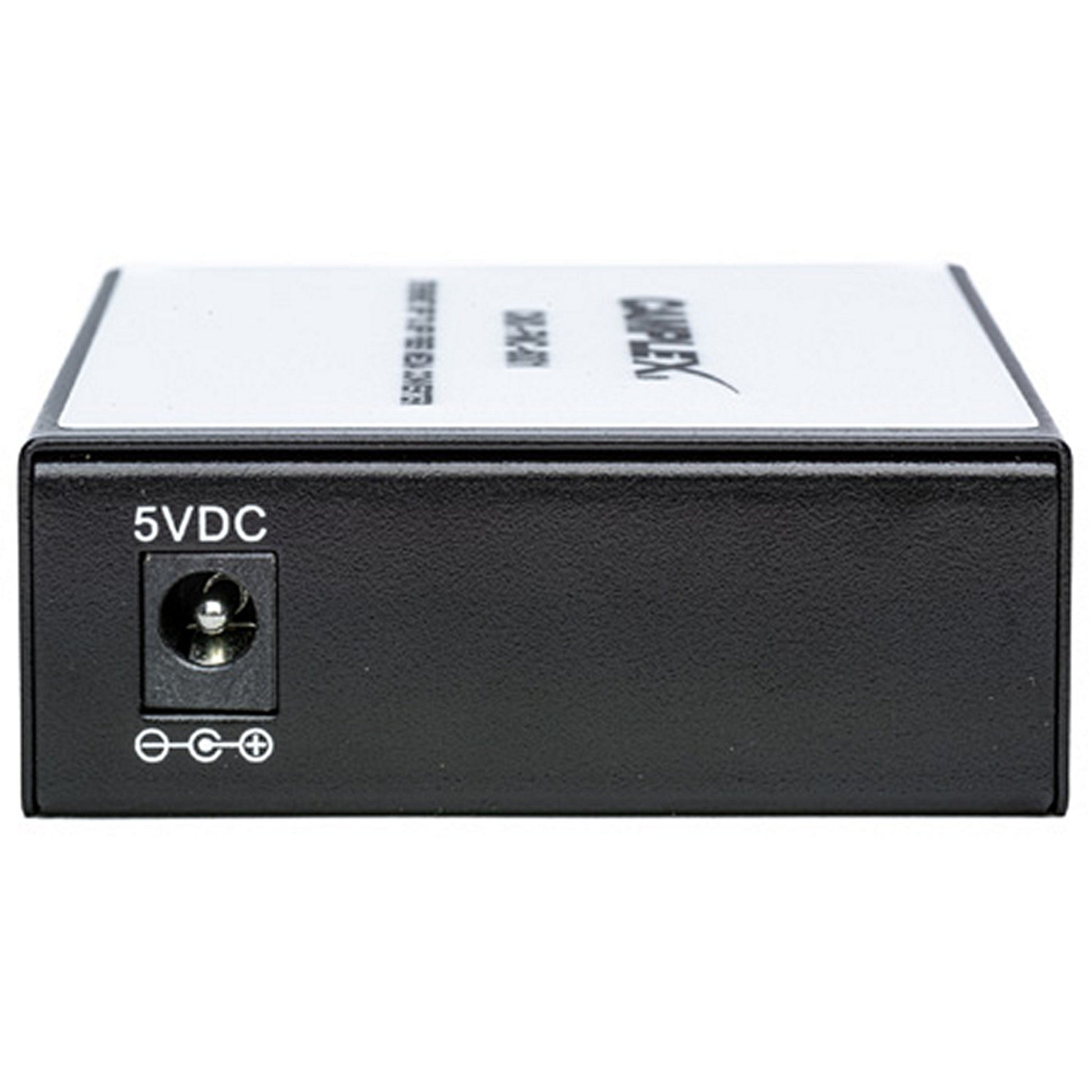

Incorporate multiple laser wavelengths or multiple fiber modes into your network with the Camplex CMX-FMC-6001 SFP to SFP Fiber Media Converter. This handy device delivers flexibility two SFP (Small Form-Factor Pluggable) slots for fiber to fiber mode and wavelength conversion which can provide tremendous costs savings to the alternative of replacing a fiber optic card. Each SFPs supports speeds up to 1.25Gbps. Units are housed in a vented, black powder-coated steel cabinet with four LED indicators for power and fiber connection. Functions as a standalone converter, rack-mounted, or chassis-based. Compliant with IEEE802.3z & 802.3ab, CE, FCC, and RoHS standards.

Key Features

• Convert Fiber to Fiber Mode and Wavelength
• Supports 2 SFPs (Small Form-Factor Pluggable) with Identical Speeds up to 1.25Gbps
• Compact, Black Powder-Coated Steel Cabinet
• Four LED Indicators for Power and Fiber Connection
• Compliant with IEEE802.3z & 802.3ab Standards
• Certification: CE, FCC, and RoHS
• Compatible with MSA SFP+ SFP's

Technical Specifications

Data Rate
100Mbps to 1250Mbps
Standards
IEEE802.3z/ab. 1000Base- SX/LX/EX/ZX
Transmission Distance
SFP Dependent
Wavelength
SFP Dependent
Supports Single Mode & Multimode
Interface
Two SFP ports
Input voltage

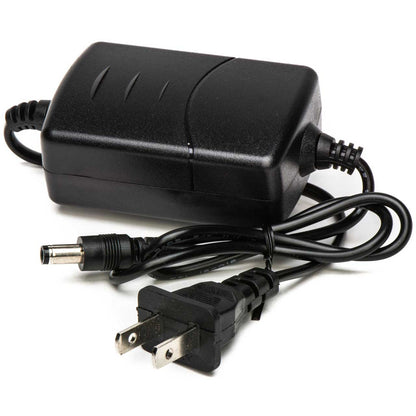

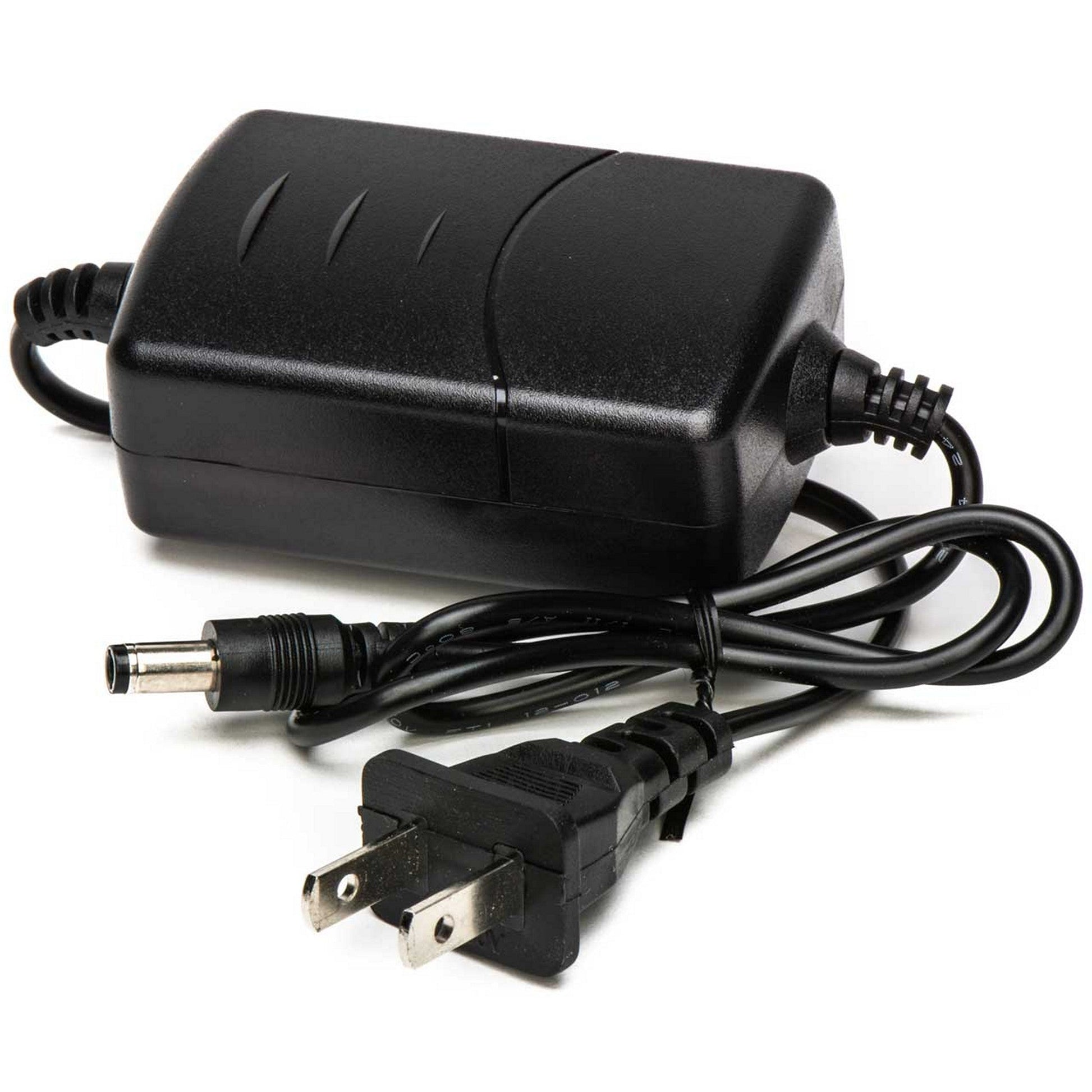

AC 110V~240V, DC 5V+2A, DC-48, DC24V, DC12V
Power Consumption
10W
Dimensions
3.75 x 2.75 x 1 inch / 95 x 70 x 25mm
