Connectronics 12G-SDI to Dual-link 6G-SDI or Quad-link 3G-SDI Converter

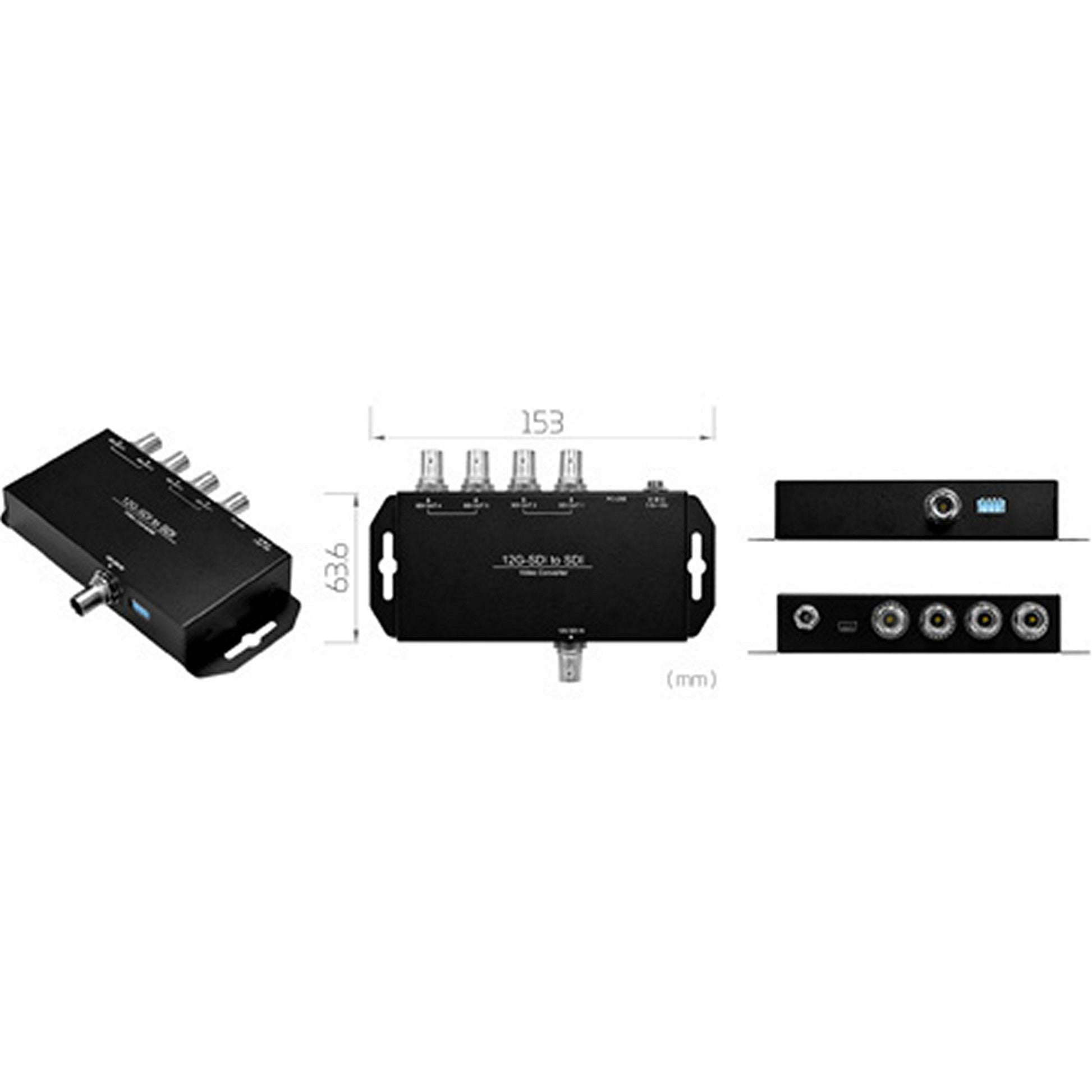

The Connectronics 12GSDI2SDI is a 12G-SDI to SDI Convertor. You can convert 12G-SDI to Dual-link 6G-SDI or Quad-link 3G-SDI. The small form factor combined with tough all-metal construction make it perfect for tight spaces in Rigs, Broadcast Trucks, Data Centers and more.

Key Features

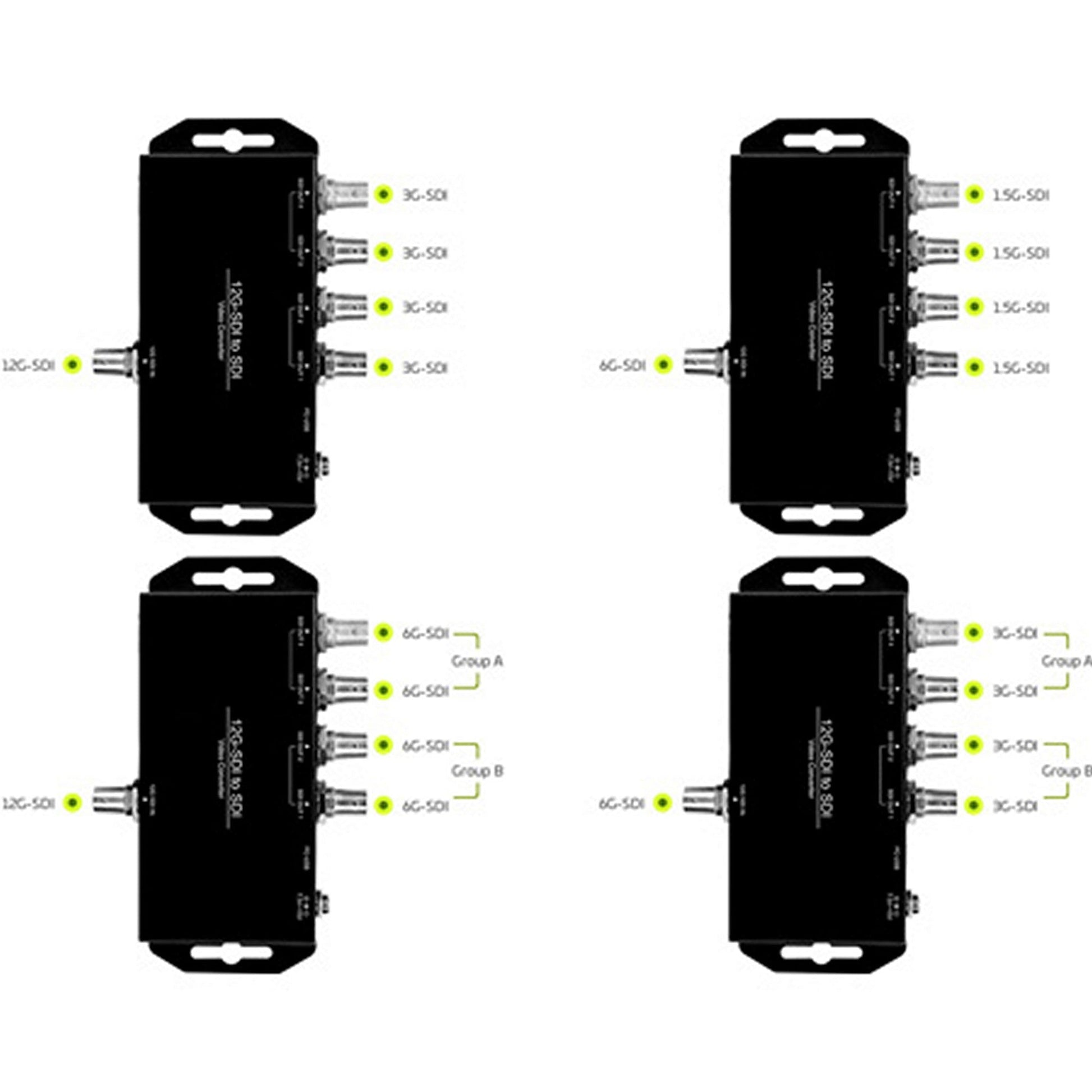

• Quad-link 2 Sample Interleave (2SI) Output Supported
• Quad-link 3G-SDI Output Supported
• Dual-link 6G-SDI Output Supported
• Multi-Standard Support (12G / 6G / 3G / HD / SD - SDI)
• 3G - SDI Level A / B - Dual-link / B - Dual-stream Support

Technical Specifications

Input Interface Video
12G-SDIx1
Output Interface Video
12G-SDIx1 6G-SDIx3
Supported Video Input Format
SDI
Dual-Link 6G-SDI / Quad-Link 3G-SDI
4096x2160p@60/50fps
3840x2160p@60/50fps
6G-SDI / Dual-Link 3G-SDI / Quad-Link HD-SDI
4096x2160p@30/25/24fps
3840x2160p@30/25/24fps
3G-SDI / Dual-Link HD-SDI
1920x1080p@60/50fps
HD-SDI
1920x1080p@30/25/24fps
1920x1080i@60/50fps
1280x720p@60/50fps
SD-SDI
720x480i@60fps
720x576i@50fps
Supported Video Output Format
SDI
Dual-Link 6G-SDI / Quad-Link 3G-SDI
4096x2160p@60/50fps
3840x2160p@60/50fps
6G-SDI / Dual-Link 3G-SDI / Quad-Link HD-SDI
4096x2160p@30/25/24fps
3840x2160p@30/25/24fps
3G-SDI / Dual-Link HD-SDI
1920x1080p@60/50fps
HD-SDI
1920x1080p@30/25/24fps
1920x1080i@60/50fps
1280x720p@60/50fps
SD-SDI
720x480i@60fps
720x576i@50fps
