Decimator Design MD-CROSS HDMI SDI Cross Converter with Scaling

HDMI / SDI CROSS CONVERTER with Scaling, Frame Rate Conversion, Overlays, Video Test Pattern Generator and Audio Tone Generator

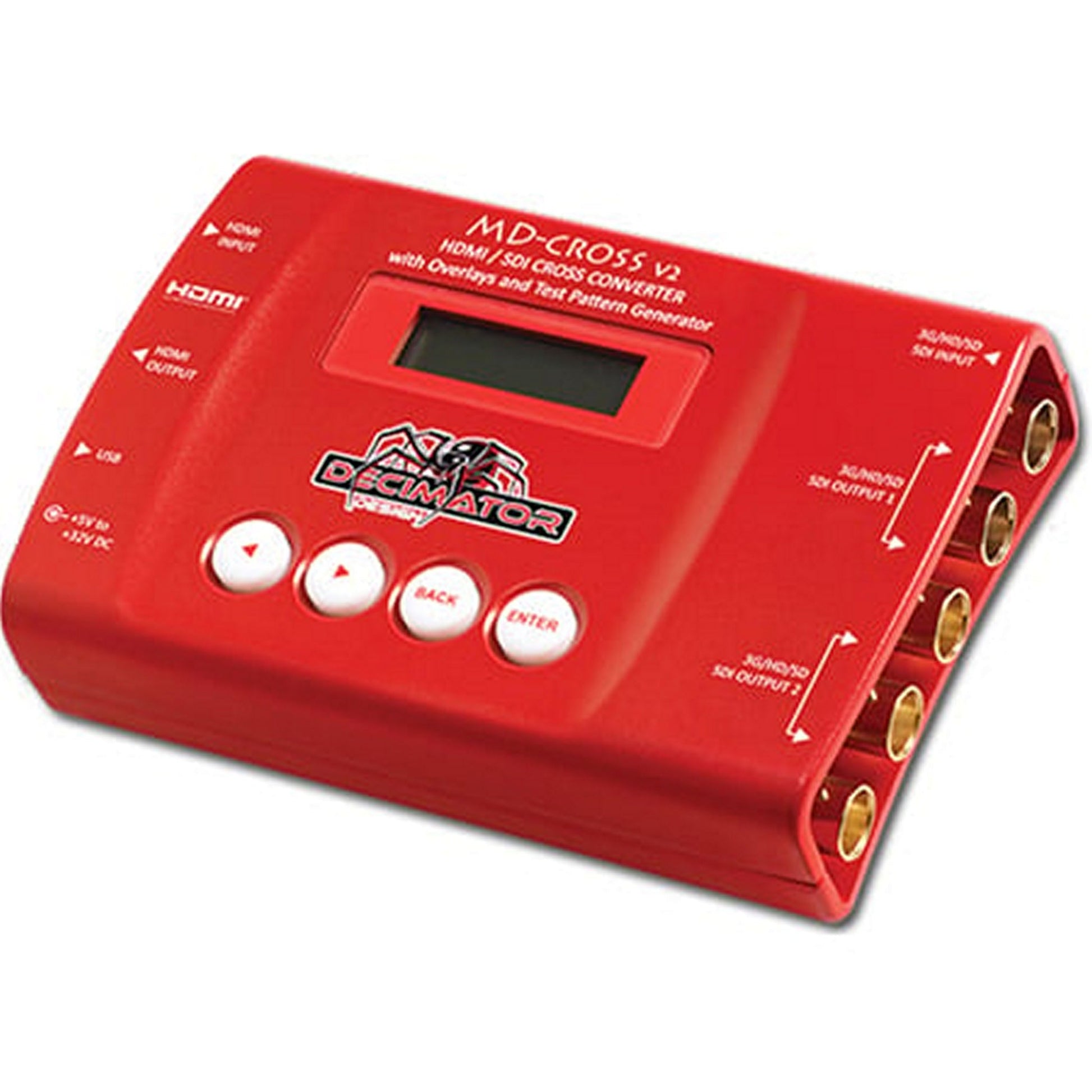

The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and summary control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.

Professional 3G/HD/SD Test Pattern Generator featuring:
- 26 Selectable Output Formats
- 54 Test Patterns including Luma and Chroma Zone-plates

Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

New UCP (USB Control Panel) Version 2.0.6 Released for both the Mac OS X and Windows 32/64-bit: MD-CROSS gets horizontal and vertical image flipping per window.
Support added for 3G level B. The 3G output level of either A or B, can be selected on units with SDI outputs. This allows for easy conversion between 3G level A or B.

Key Features

• Support both 3G level A and B on the input and output. Allowing conversion between A and B.
• Horizontal and/or Vertical image flipping via the built in scaler.
• 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
