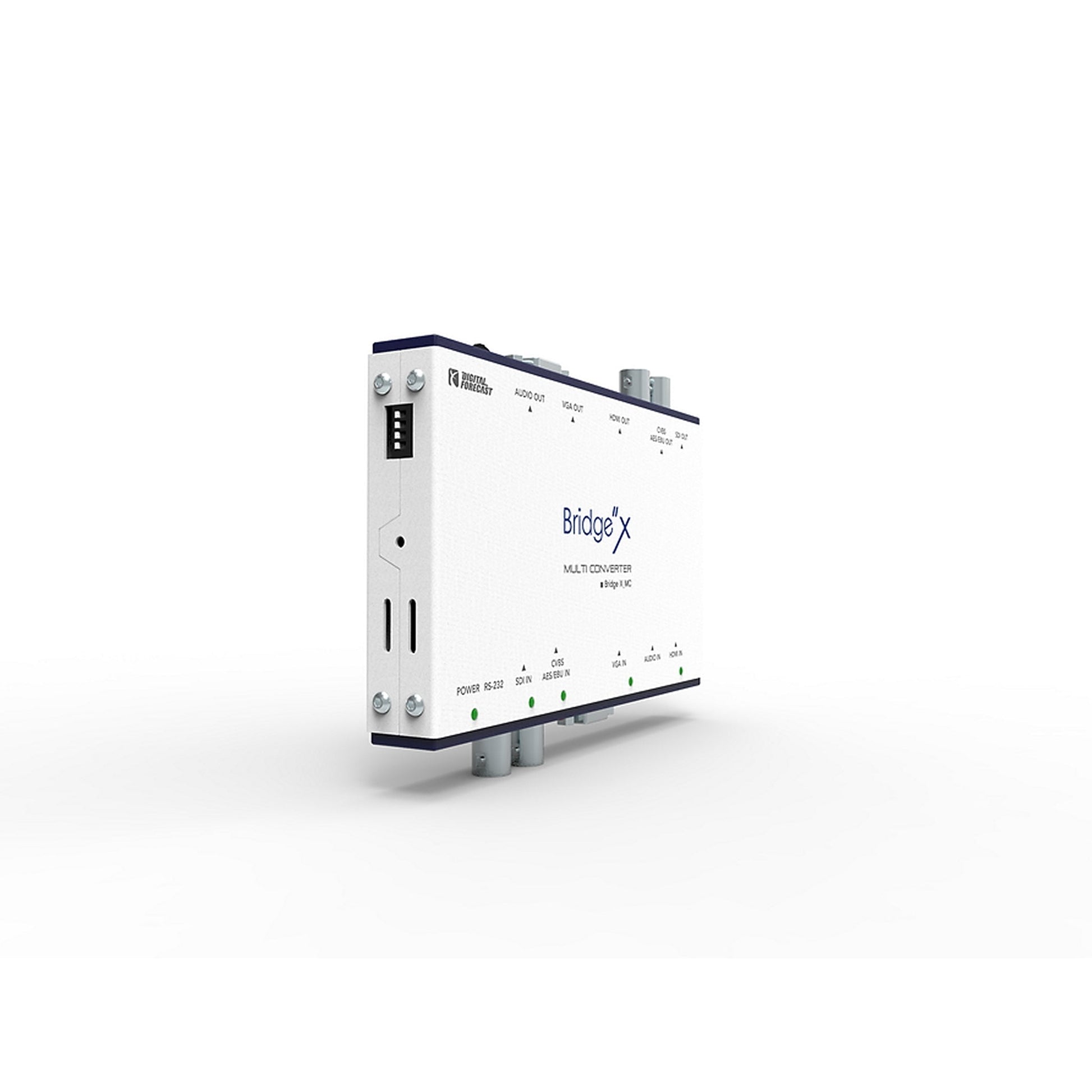

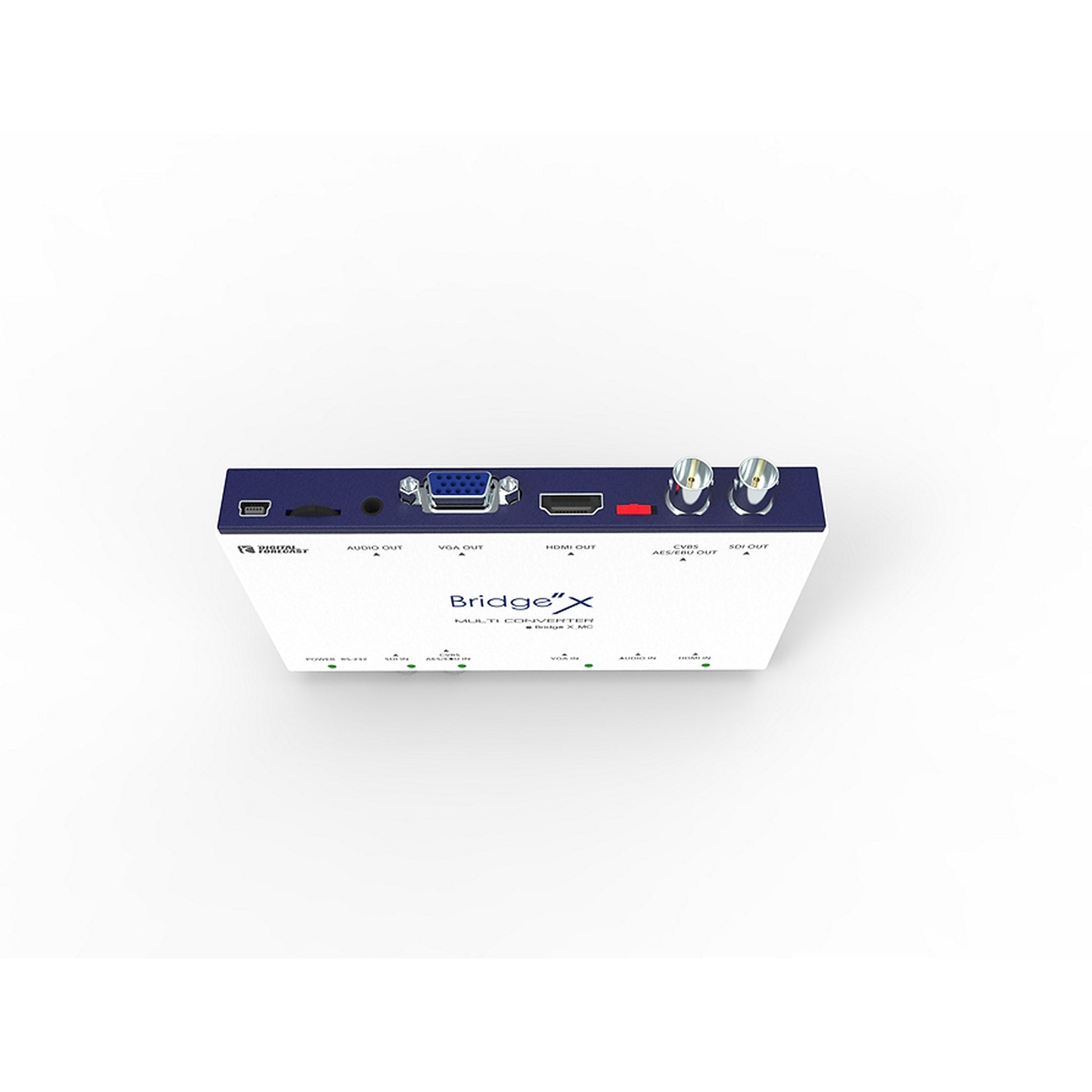

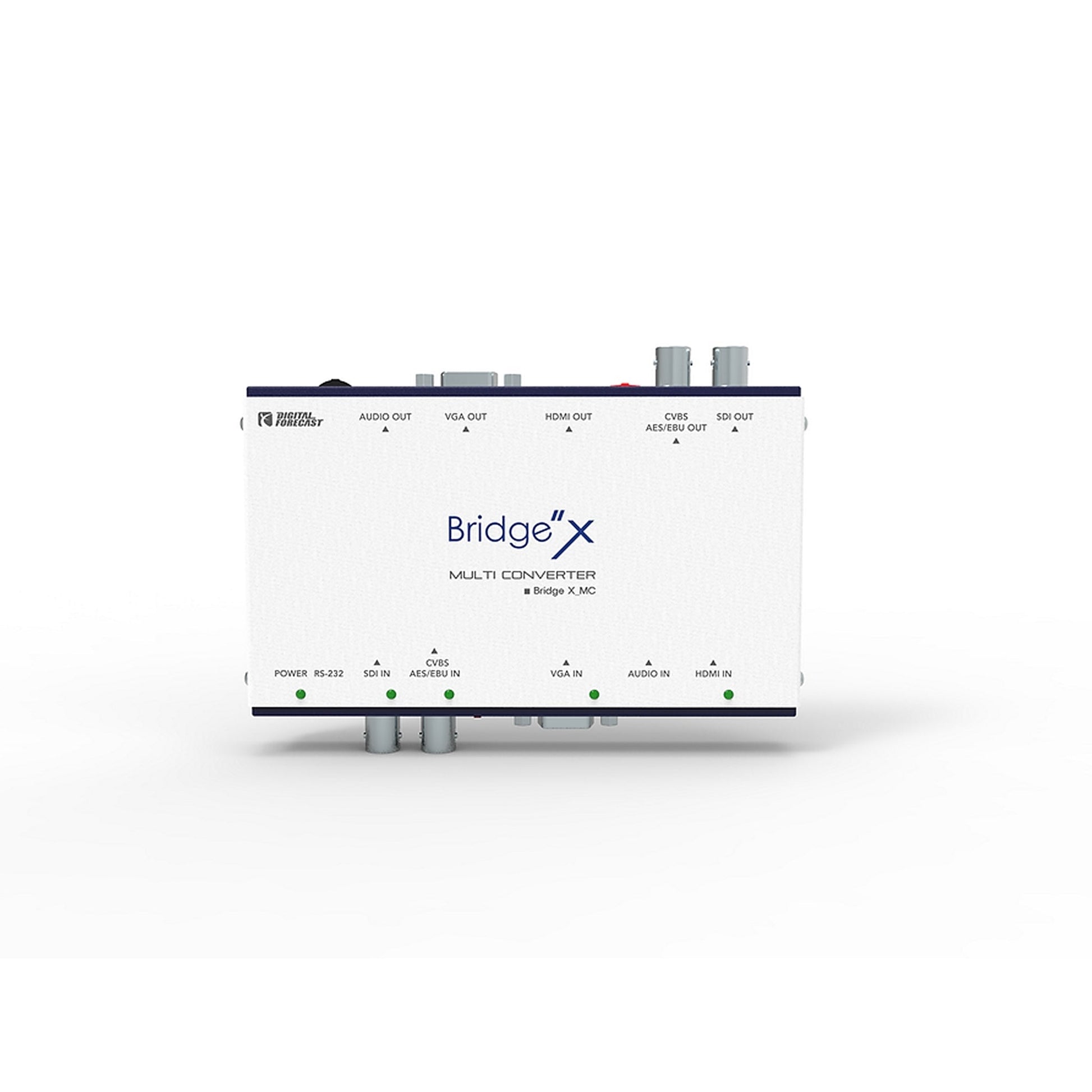

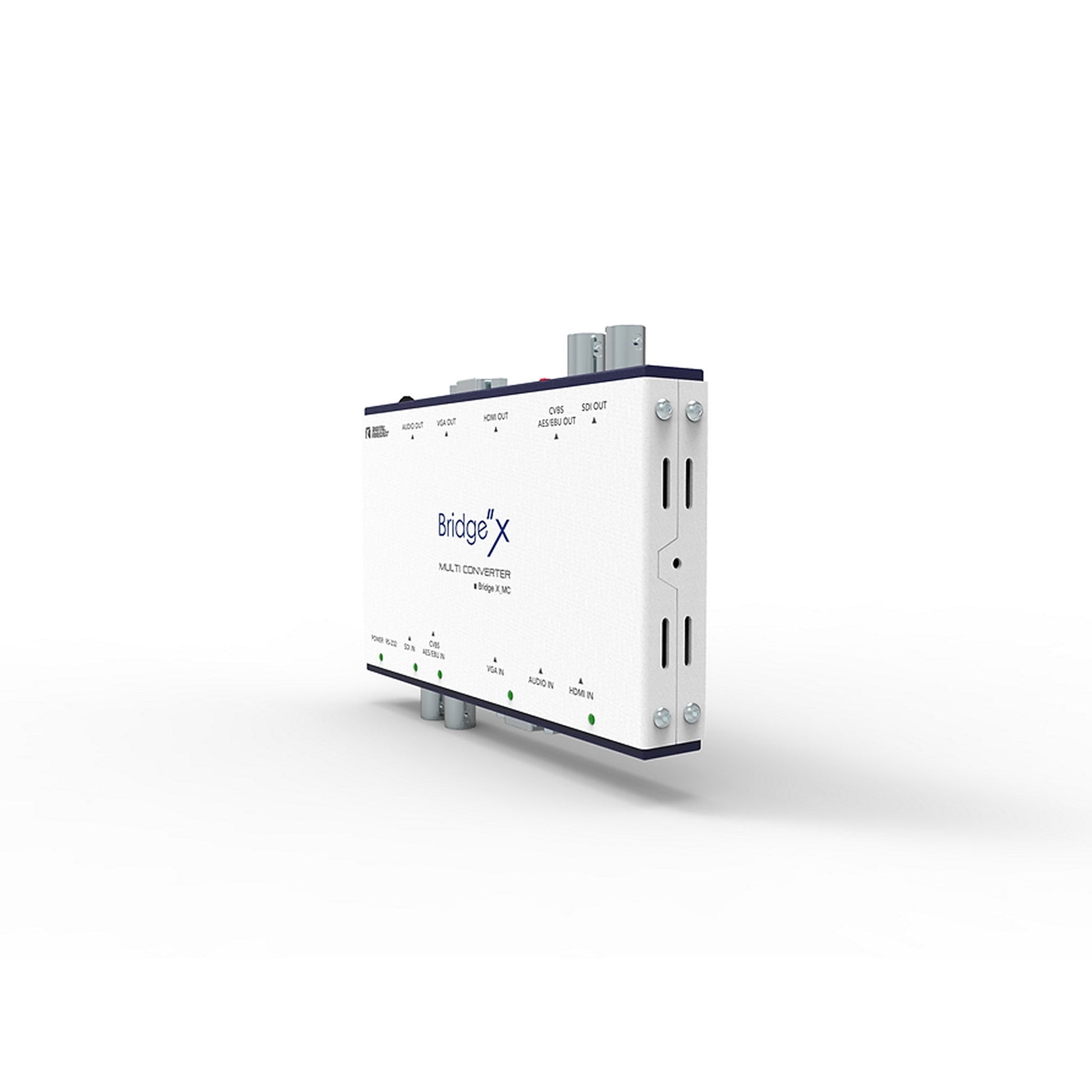

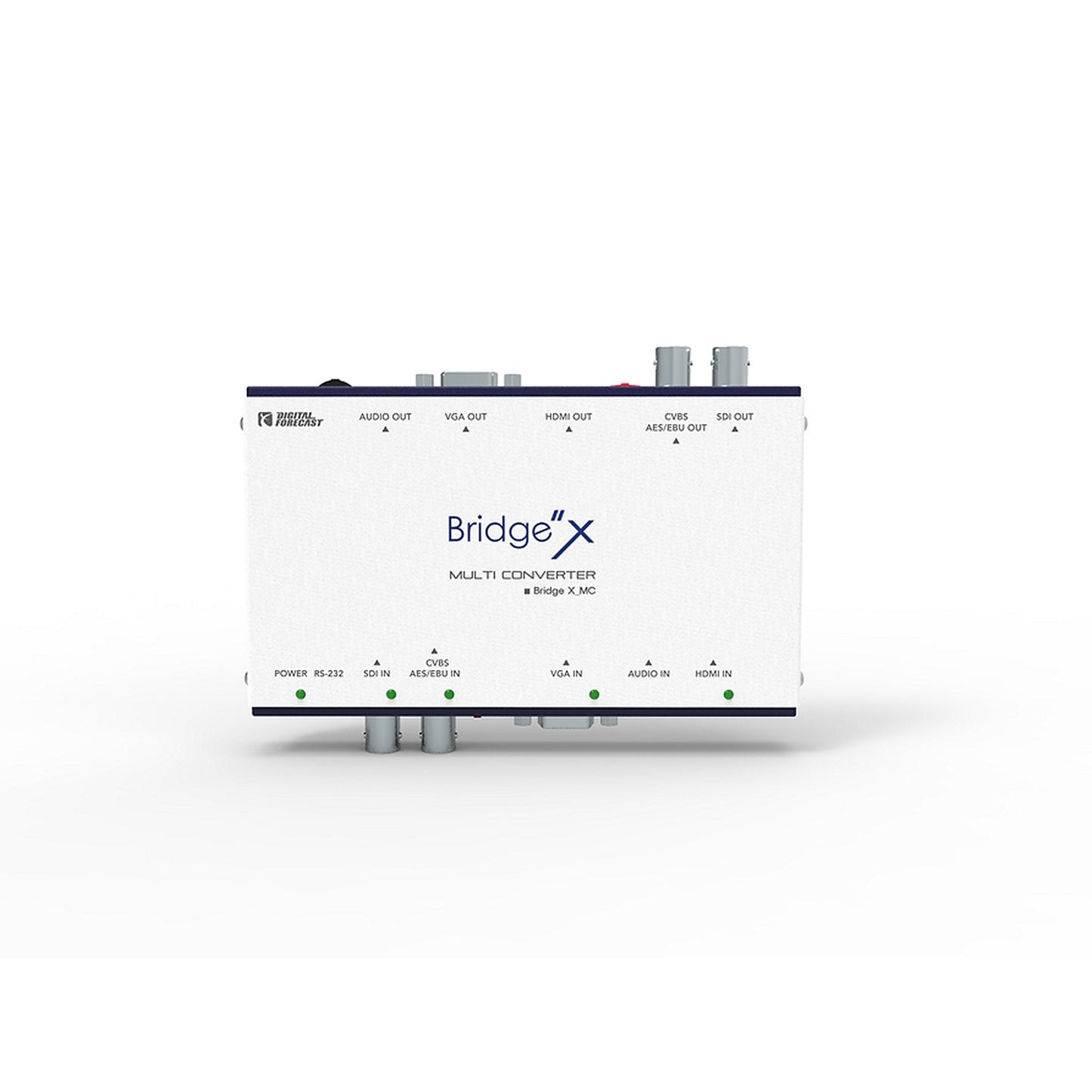

Digital Forecast Bridge X_MC Up/Down/Cross/Scan Multi Converter(Digital Forecast Bridge X_mc Up Down Cross Scan Multi Converter)

Digital Forecast Bridge X_MC Up/Down/Cross/Scan Multi Converter

Bridge X MC converts video transcoder for all analog and digital video/audio signals. It converts any input signals CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog Audio, HDMI to any of those output signals simultaneously. Multi format up/down/cross converting and Audio Mux, DeMux Function.

Key Features

• Up/Down/Cross/Scan converter
• Audio Mux Function
• HDMI in/output
• Audio Mux Function
• Audio DeMux Function
• User selectable output format
• User selectable output ARC
• Multiple standard video/audio signal
• (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog Audio, HDMI)

Technical Specifications

Physical
Dimension (W x H x D)
153 x 91 x 20.4 (mm)
Weight
210 g
Power Level
+12 VDC
Power Consumption
10 Watts
Humidity
0 to 95% RH, non-condensing
Digital Video
Supports HDMI v1.3 formats
Supports multi-rate SDI formats
NTSC (480i 59.94), PAL (576i 50)720p (60/59.94/50)
1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
1080p (60/59.94) 3G
