Eaton E90-W E90 Indoor Round Wall/Ceiling Speaker, 25/70V, White(Eaton E90 W E90 Indoor Round Wall Ceiling Speaker 25 70v White)

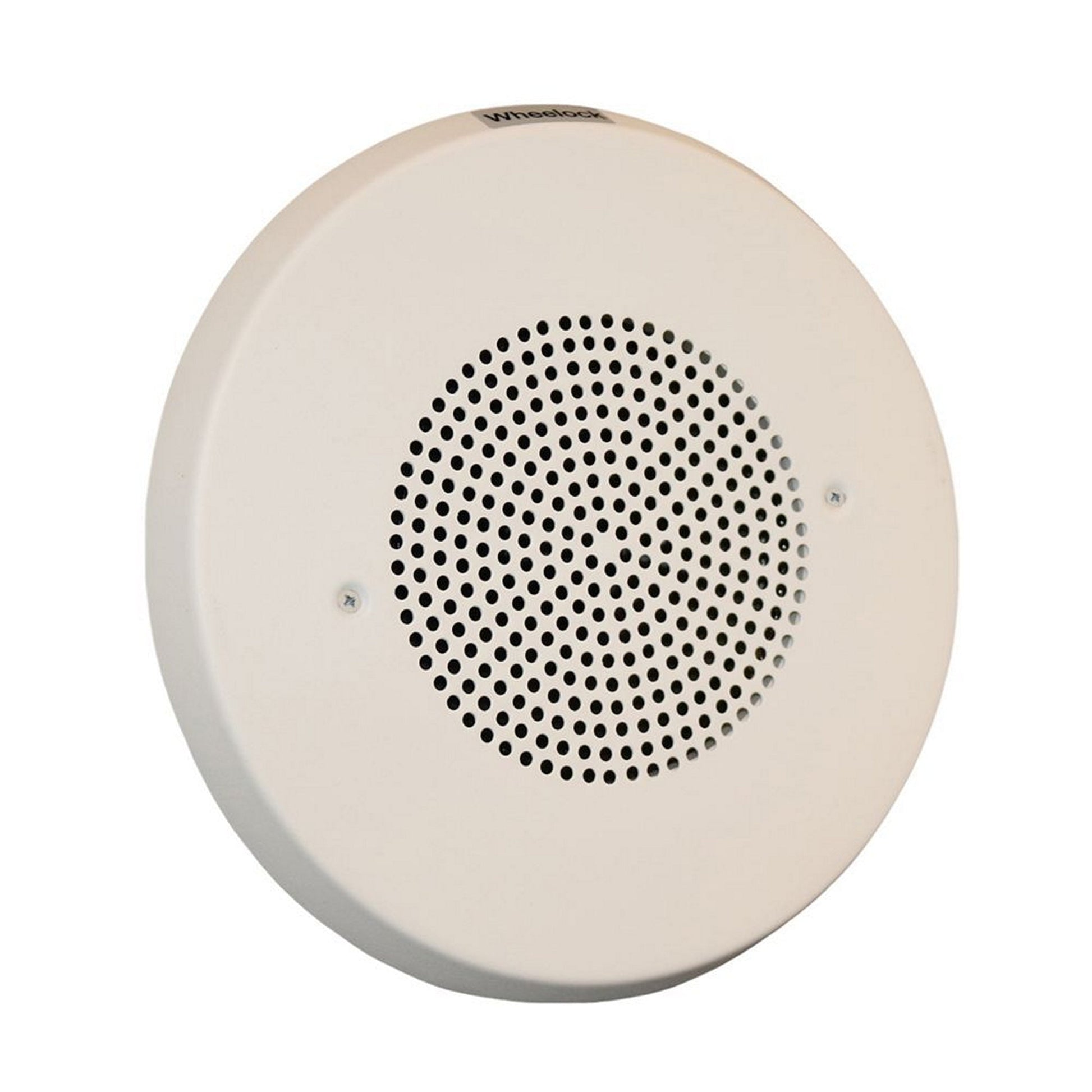

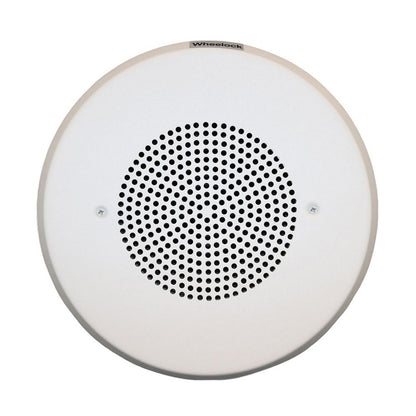

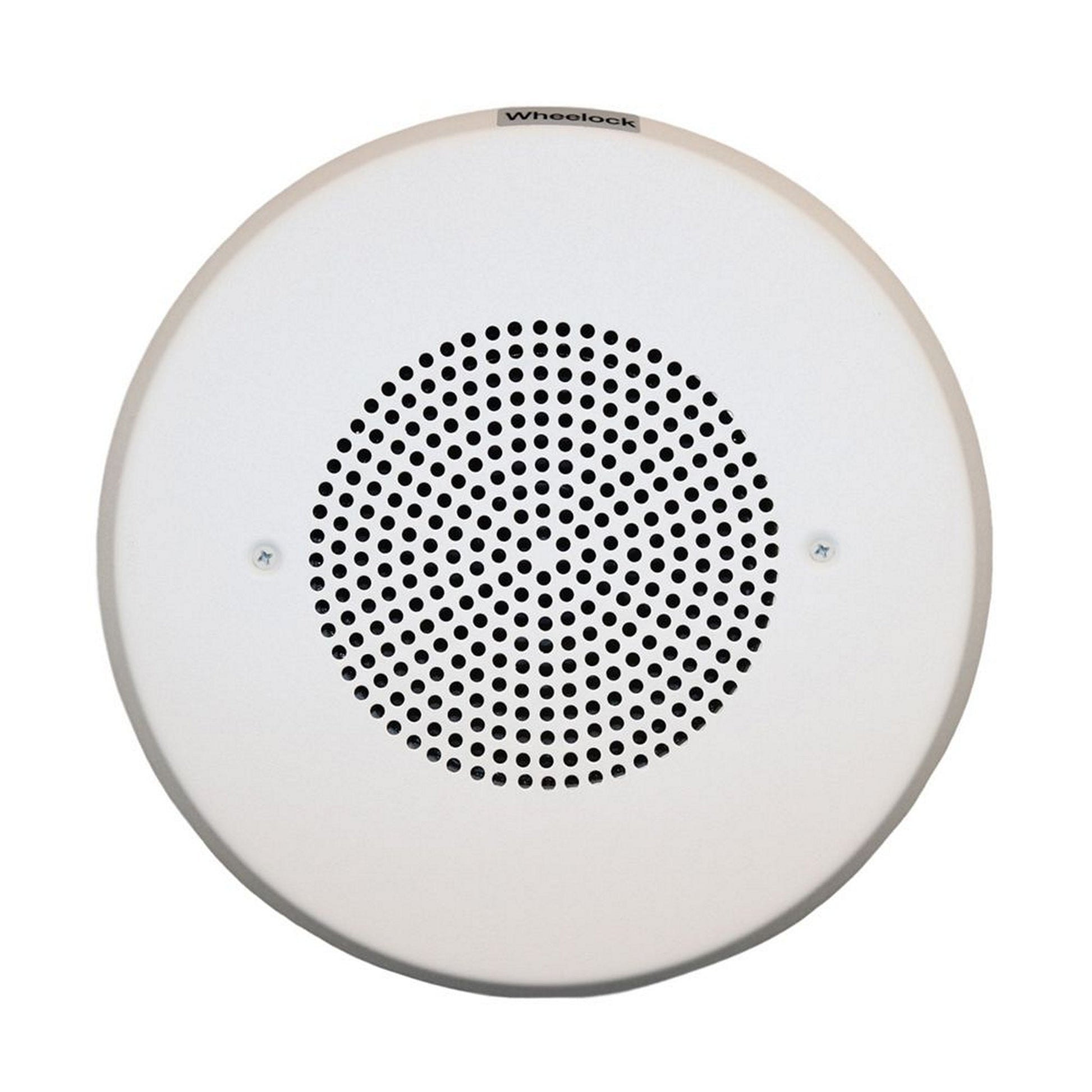

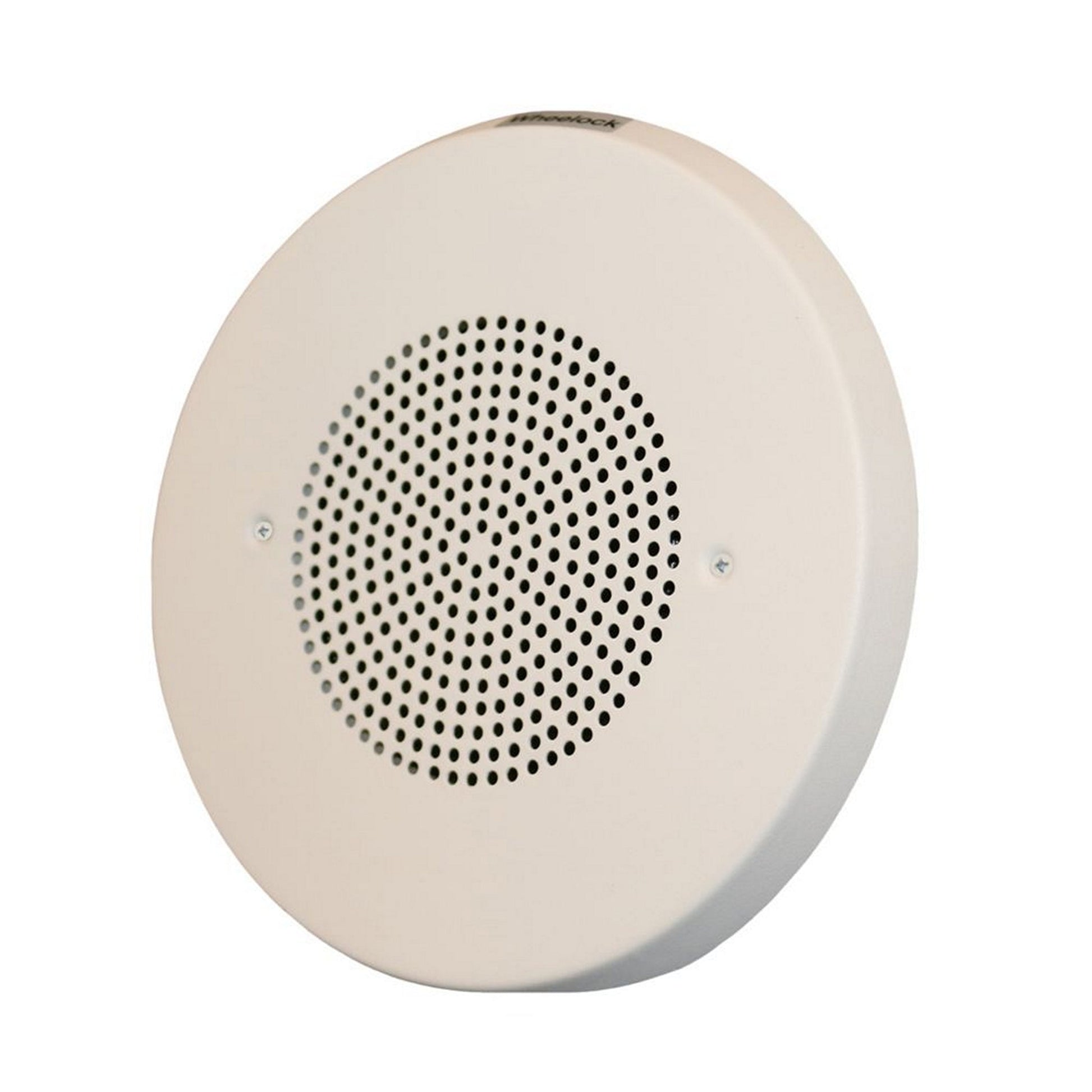

Eaton E90-W E90 Indoor Round Wall/Ceiling Speaker, 25/70V, White

The Wheelock E70 Wall and E90 Ceiling Speakers and Speaker Strobes are designed for high efficiency sound output for indoor applications. The E product line features intelligible communications with crisp, clear voice messages and tone signaling, ideal for mass notification, and voice evacuation. Providing a sleek aesthetic appearance, The Eaton Wheelock Series E High Speaker Strobes feature dual voltage (25/70 VRMS) capability and field selectable taps from 1/8 to 2 watts. The low-profile design incorporates a speaker mounting plate for faster and easier installation. Each model has a built-in level adjustment feature and an aesthetic two (2) screw grille cover.

Key Features

• Offer an easy way to comply with ADA recommendations concerning photosensitive epilepsy
• All inputs employ IN/OUT wiring terminals for fast installation using #12 to #18 AWG wiring
• Incorporate the Low Current draw RSS Strobes
• The E Speaker Strobes are UL Listed for indoor use under Standard 1971 (Signaling Devices for the Hearing-Impaired)
• Listed for indoor use under Standard 1480 (Speaker Appliances)
• Sleek aesthetic appearance
• Feature dual voltage (25/70 VRMS) capability and field selectable taps from 1/8 to 2 watts
• Has a built-in level adjustment feature and an aesthetic two (2) screw grille cover
• UV stabilized plastic

Technical Specifications

Color
White
Depth (mm)
10.922
Form Factor
Wall Mount
Height
7.3”
Height (mm)
185.42
Weight (Approximate)
1.50 lb
Width
7.3”
Width (mm)
185.42
Warranty
Limited Warranty
3 Year
Miscellaneous
Country of Origin
China
