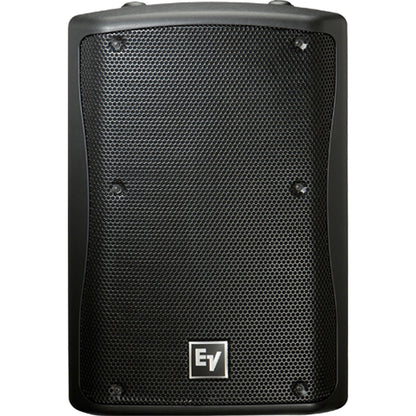

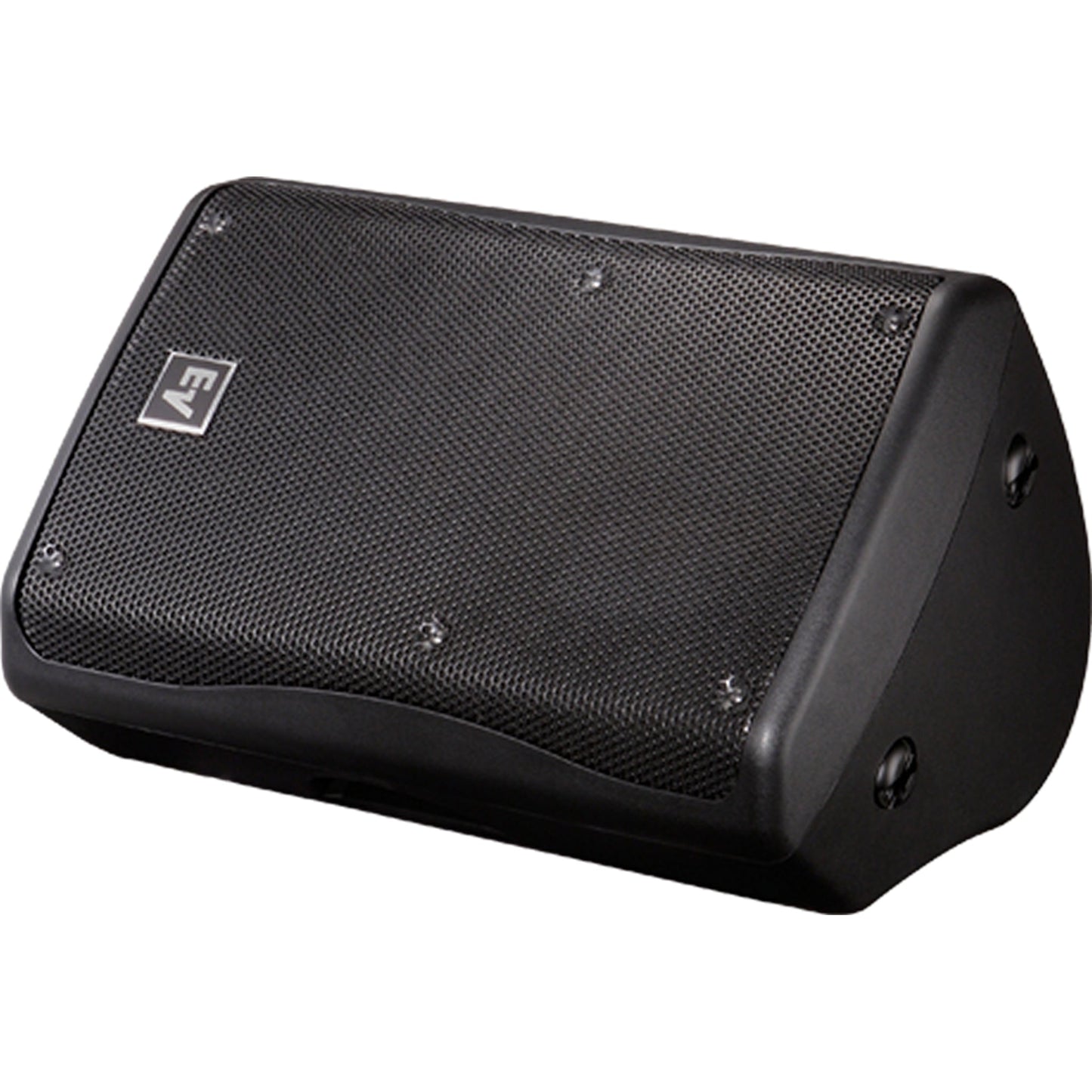

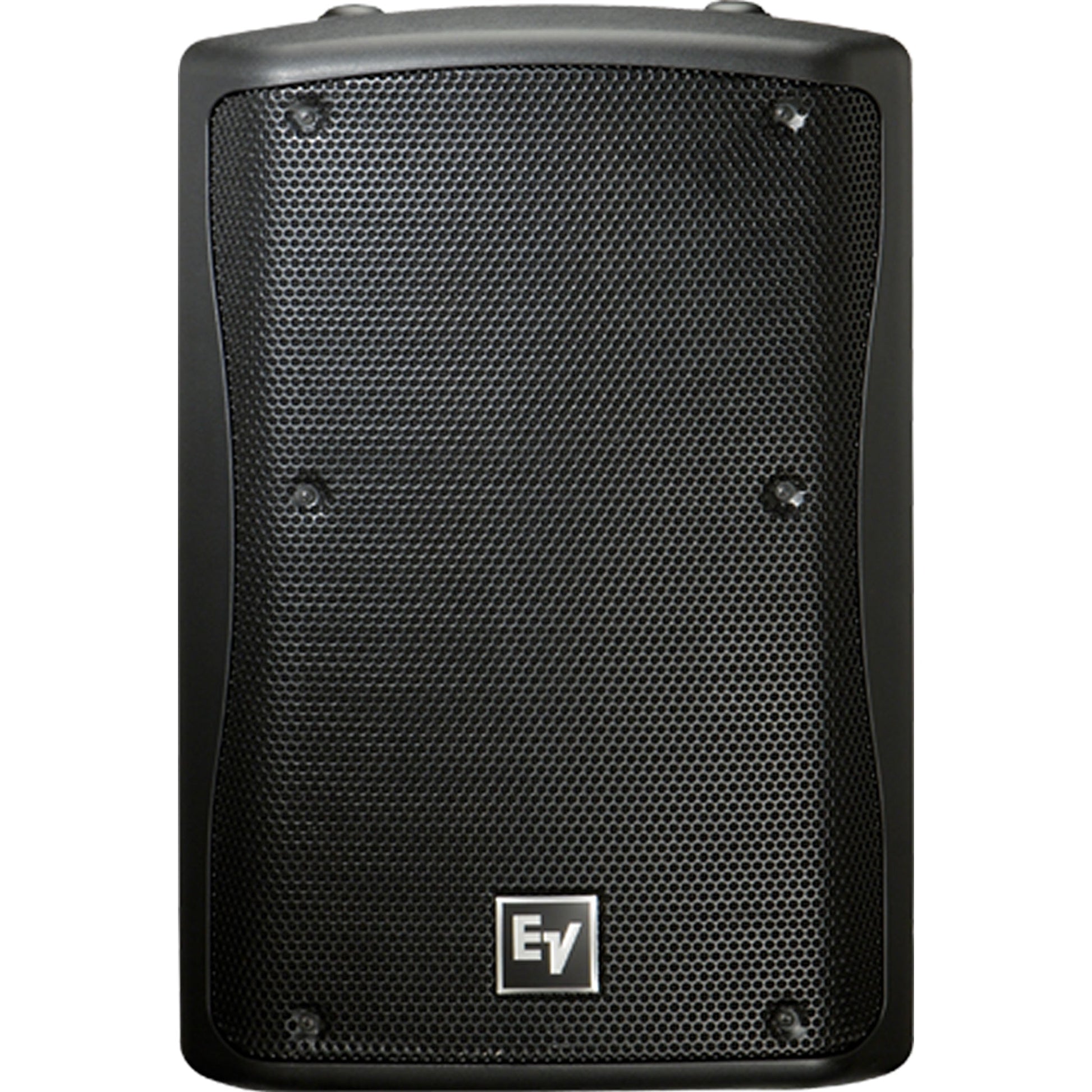

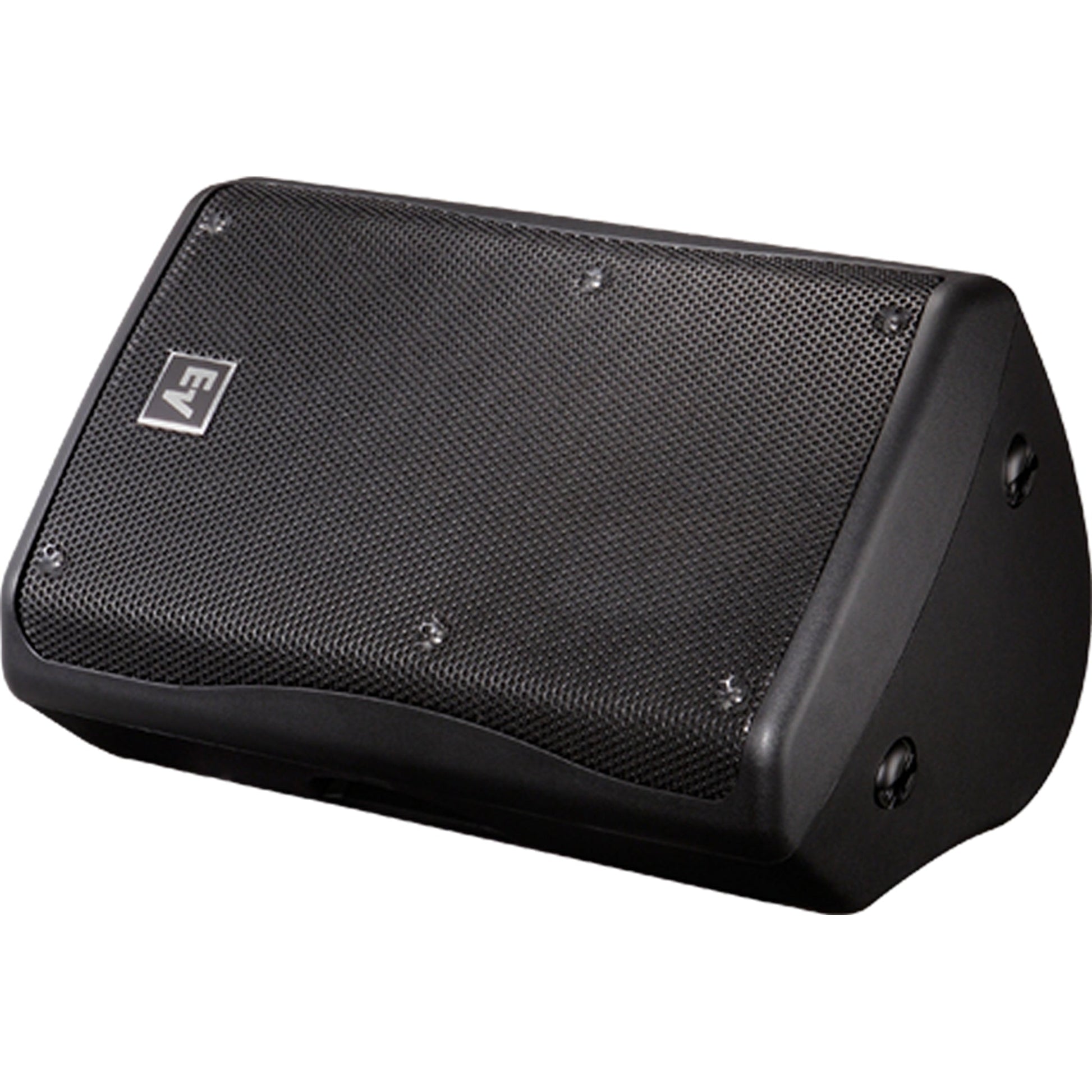

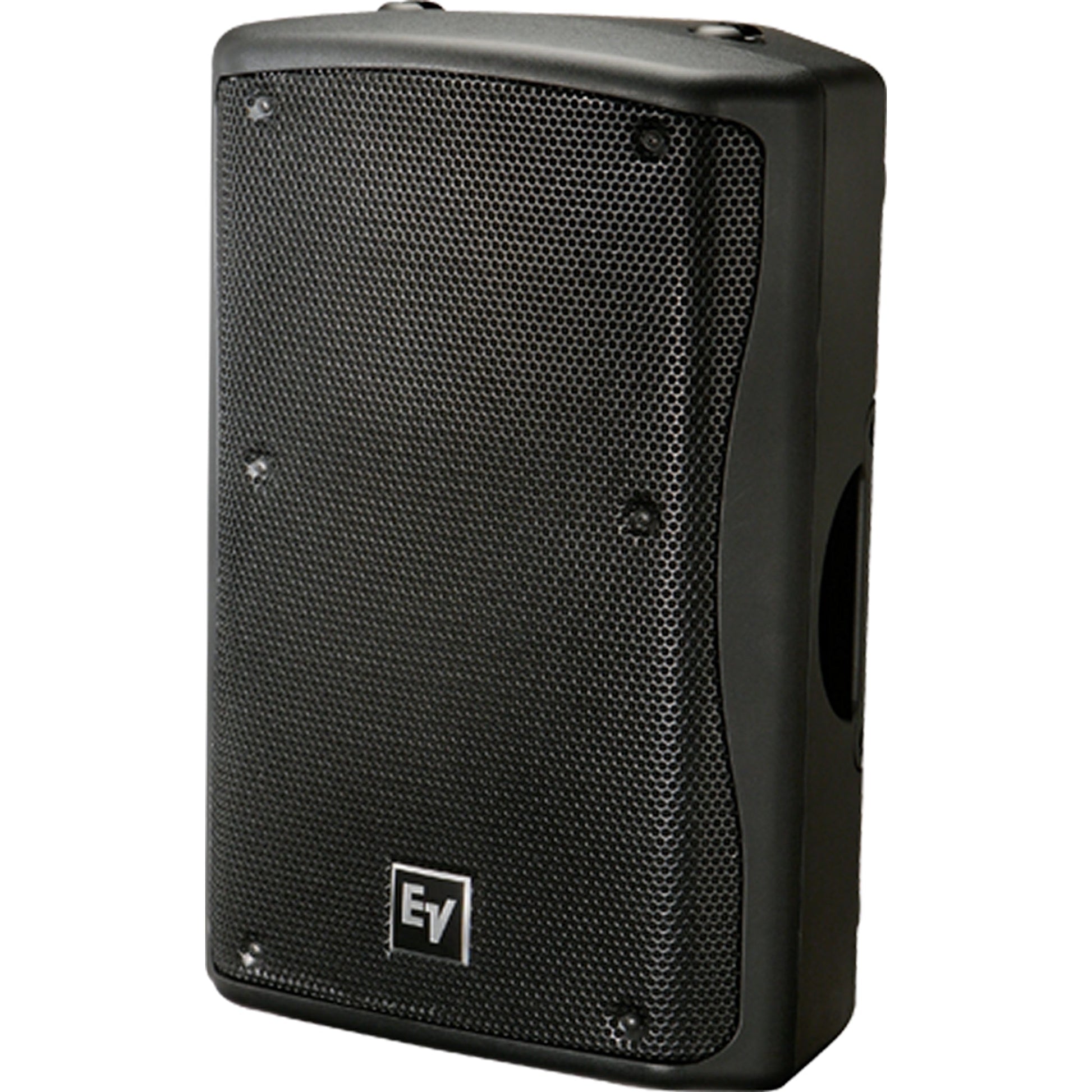

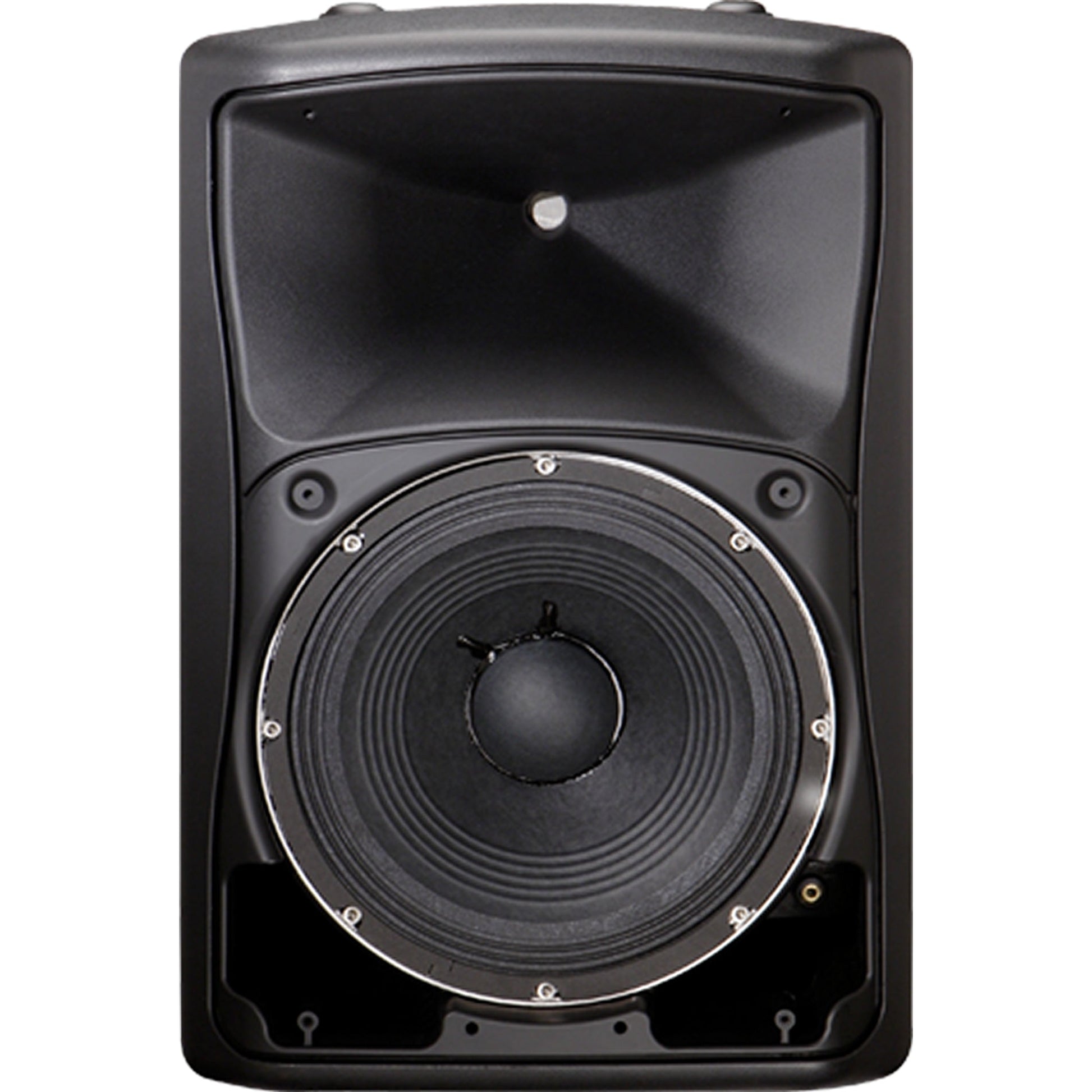

Electro-Voice ZX3-60B 600-Watt 12-Inch 2-Way 60 X 60 Loudspeaker System, Black(Electro Voice Zx3 60b 600 Watt 12 Inch 2 Way 60 X 60 Loudspeaker System Black)

Electro-Voice ZX3-60B 600-Watt 12-Inch 2-Way 60 x 60 Loudspeaker System, Black

12" passive loudspeaker

Key Features

• Versatile performance for mains, fills, or monitors
• DVX3121A woofer with forced-air cooling
• 2-inch ND2 titanium/neodymium HF driver
• Passive crossover
• 60º x 60º coverage horn
• High sensitivity, 131 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• High-impact polypropylene enclosure
• Compact monitor-friendly wedge shape
• Up to four anchor-plate attachments
• M8 mounting inserts (7)
• Integrated handle

Technical Specifications

Frequency Range (-10 dB)
48 - 20000kHz
Weatherized
Yes
Flying
Yes
Minimum Impedance
6.2 OHM
HF Transducer
2-inch ND2
Speaker Type
Full-Range
Woofer Size
12inch
Powered or Passive
Passive
Frequency Response (-3 dB)
58 - 15000Hz
Max. SPL/1m (calc)
131dB
LF Transducer
12-inch DVX3121A
System Power Handling (Continuous/Program/Peak)
600//2400Watts
Power Rating
2400W
LF Power Handling
500Watts
HF Power Handling
40Watts
Crossover Frequency
2000Hz
Enclosure Material
High Impact Polystyrene Composite
Grille
Polyester Powder Coated, 18GA Galvanized Steel
Sensitivity 1 W/1 m
97dB
Height
24.13" (613mm)
Recommended High-Pass Frequency
50Hz
Width
15.63" (397mm)
Internal Crossover
Yes
Depth
14.25" (362mm)
Weight Net
43.65lbs (19.8kg)
Nominal Impedance
8 OHM
Input Connections
2 conductor SJO cable and gland nut
