EMG 35TW 4-String Dual Mode Reverse Single Coil Mode Bass Pickup(Emg 35tw 4 String Dual Mode Reverse Single Coil Mode Bass Pickup)

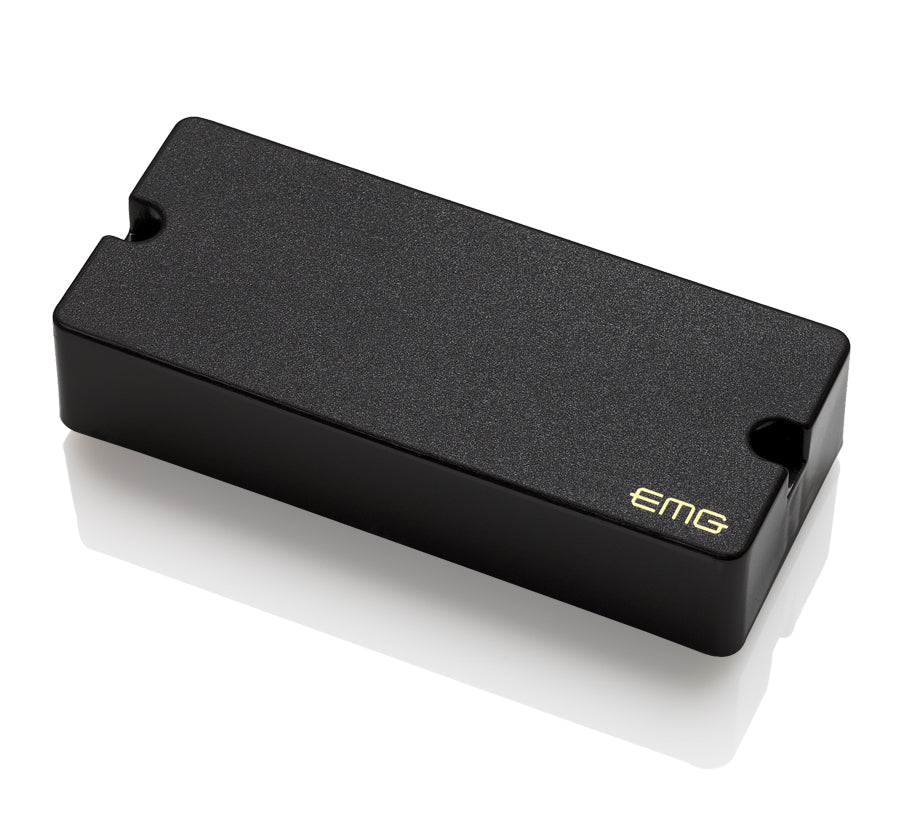

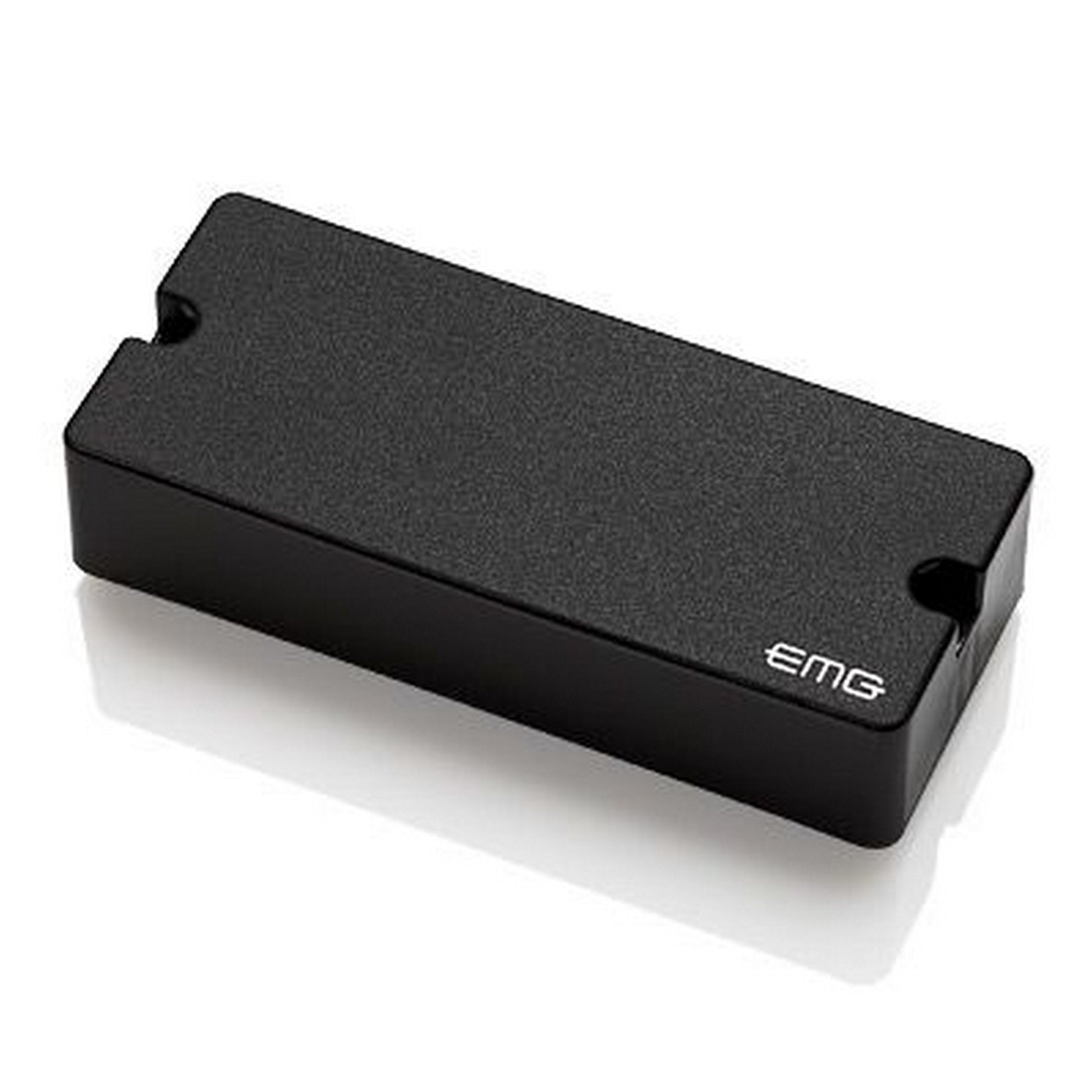

EMG 35TW Reverse Single Coil Bass Pickup

The EMG 35TW is a versatile bass pickup that offers two distinct tonal options within a single 3.5" soapbar housing. Utilizing both ceramic and steel magnets, this pickup provides players with the flexibility to switch between a warm single-coil sound and a powerful humbucker tone. The integration of EMG's renowned preamp circuit ensures consistent performance across both modes.

In single-coil mode, the 35TW functions as a JCS pickup, delivering a rich and warm tone suitable for various musical styles. When switched to humbucker mode, it transforms into EMG's popular CS (ceramic steel) dual-coil, producing a big, aggressive sound with a pronounced mid-range. This dual-mode capability allows bassists to easily adapt their sound to different genres and playing techniques.

The included push/pull pot facilitates seamless switching between single-coil and humbucker modes, providing on-the-fly tonal adjustments without the need for additional equipment. This design ensures that players can achieve the desired sound quickly and efficiently during performances or recording sessions.

Key Features

• Dual-mode operation: Single-coil and humbucker tones in one pickup
• Ceramic and steel magnets for enhanced tonal versatility
• EMG's proprietary preamp circuit for consistent output
• Push/pull pot included for easy mode switching
• Standard 3.5" x 1.5" soapbar housing for easy installation

Technical Specifications

Model: 35-TW Reverse Single Coil
Logo Color: Copper
Magnet Type: Ceramic & Steel
Resonant Frequency: 5.40 kHz
Output Voltage (Finger, Thumb): 1.00 V
Output Voltage (Thump): 3.00 V
Output Noise (60 Hz): -107 dBV
Output Impedance: 10 kΩ
Current @9V: 160 µA
Battery Life: 1500 hours
Maximum Supply: 27 V DC

What's Included

• EMG's exclusive Solderless Install System:
  • 1 25k tone pot
  • 1 push/pull pot
  • 1 battery bus
  • 1 stereo output jack
  • 1 pair mounting screws
  • 1 pickup cable
  • 2 connect cables
  • 1 output cable
  • 1 battery cable
