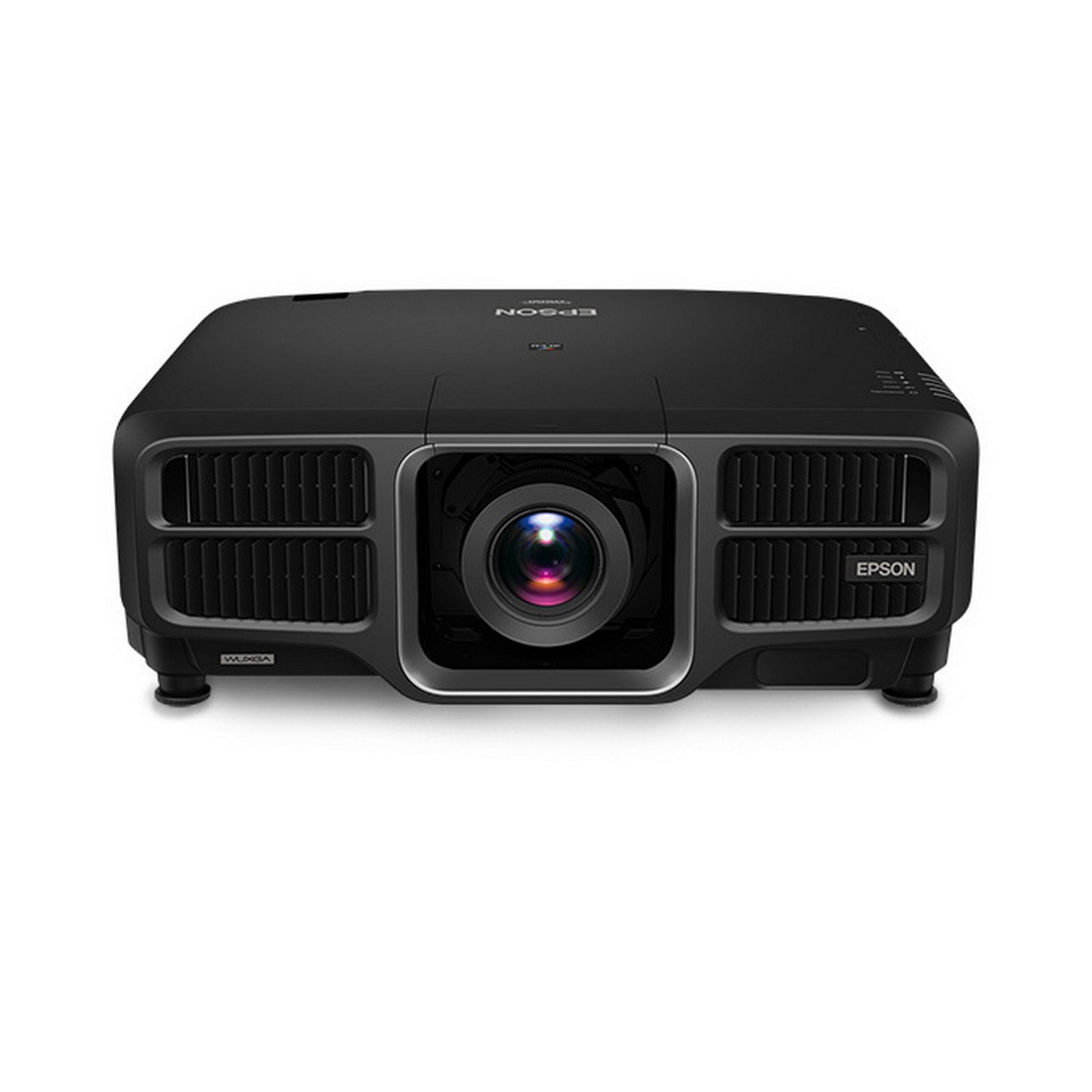

Epson® Epson Pro L1505UHNL WUXGA 3LCD Laser Projector With 4K Enhancement Without Lens(Epson Pro L1505uhnl Wuxga 3lcd Laser Projector With 4k Enhancement Without Lens)

Epson Pro L1505UHNL WUXGA 3LCD Laser Projector with 4K Enhancement Without Lens

The Pro L1505UHNL combines a laser light source, inorganic components and 3LCD technology for powerful, uncompromising images. This premium large-venue projector features native WUXGA performance with Epson 4K Enhancement Technology. Delivering 12,000 lumens of color/white brightness, the Pro L1505UHNL offers bright, vivid color, while its laser light source engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours. This sleek, black projector includes Edge Blending and 360-degree projection for a variety of installation applications. Its integration capabilities include 3G-SDI and HDBaseT connectivity, plus nine optional powered lenses (sold separately).

Key Features

• Bright, vivid color - 12,000 lumens color/white brightness
• Exceptional Full HD widescreen display - native WUXGA (1920 x 1200) with 4K Enhancement for presentations, videos, digital signage and more
• Solid-state laser light source - virtually maintenance-free 20,000-hour laser light source with no lamps
• Dynamic projection capabilities - advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
• Advanced connectivity - 3G-SDI, HDBaseT, HDMI, DVI-D, VGA, 5-BNC and Stereo Mini
• Nine optional interchangeable lenses (sold separately) - with powered lens shift and lens memory
• Installation flexibility - 360-degree projection and Portrait Mode for added versatility
• Remote management and control tools - included software allows for web-based monitoring and control of Epson networked projectors
• Image correction camera - automatically adjusts color and brightness to match other projectors in multiple-screen applications
• Brightness lock feature - allows users to securely set maximum brightness level

Technical Specifications

Specifications Projector
Projection System
High-aperture Epson 3-chip, 3LCD technology
Projection Method
Front / rear / ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
2,304,000 dots (1920 x 1200) x 3
Color Brightness - Color Light Output
12000 lumens
White Brightness - White Light Output
12000 lumens
Aspect Ratio
Supports 4:3, 16:9, 16:10
Resolution
1920 x 1200 (WUXGA)
Resize
1280 x 1024, 1400 x 1050
Brightness Uniformity
(typical) 90%
Pixel Arrangement
Cross stripe
Throw Ratio Range
(For Standard Lens Only) 1.57 - 2.56
Size - projected distance
60”-500”
Contrast Ratio
2,500,000:1
Color Reproduction
Up to 1 billion colors
Light Source Life
Normal
20,000 hours
Extended
30,000 hours
Effective Scanning Frequency Range
Pixel Clock, Horizontal, Vertical
Pixel Clock
13.5 MHz - 162 MHz (up to UXGA 60 Hz)
Horizontal
15 KHz - 92 KHz
Vertical
50 Hz - 85 Hz
Horizontal
15 kHz - 92 kHz
Vertical
50 Hz - 85 Hz
General
Temperature
32 Degrees to 113 Degrees F (0 Degrees to 45 Degrees C)
Operating Temperature
32 Degrees to 113 Degrees F (0 Degrees to 45 Degrees C)
Weight
52.2 lb (with standard lens, not included)
Security
Security cable hole
Lens lock
Kensington lock provision
