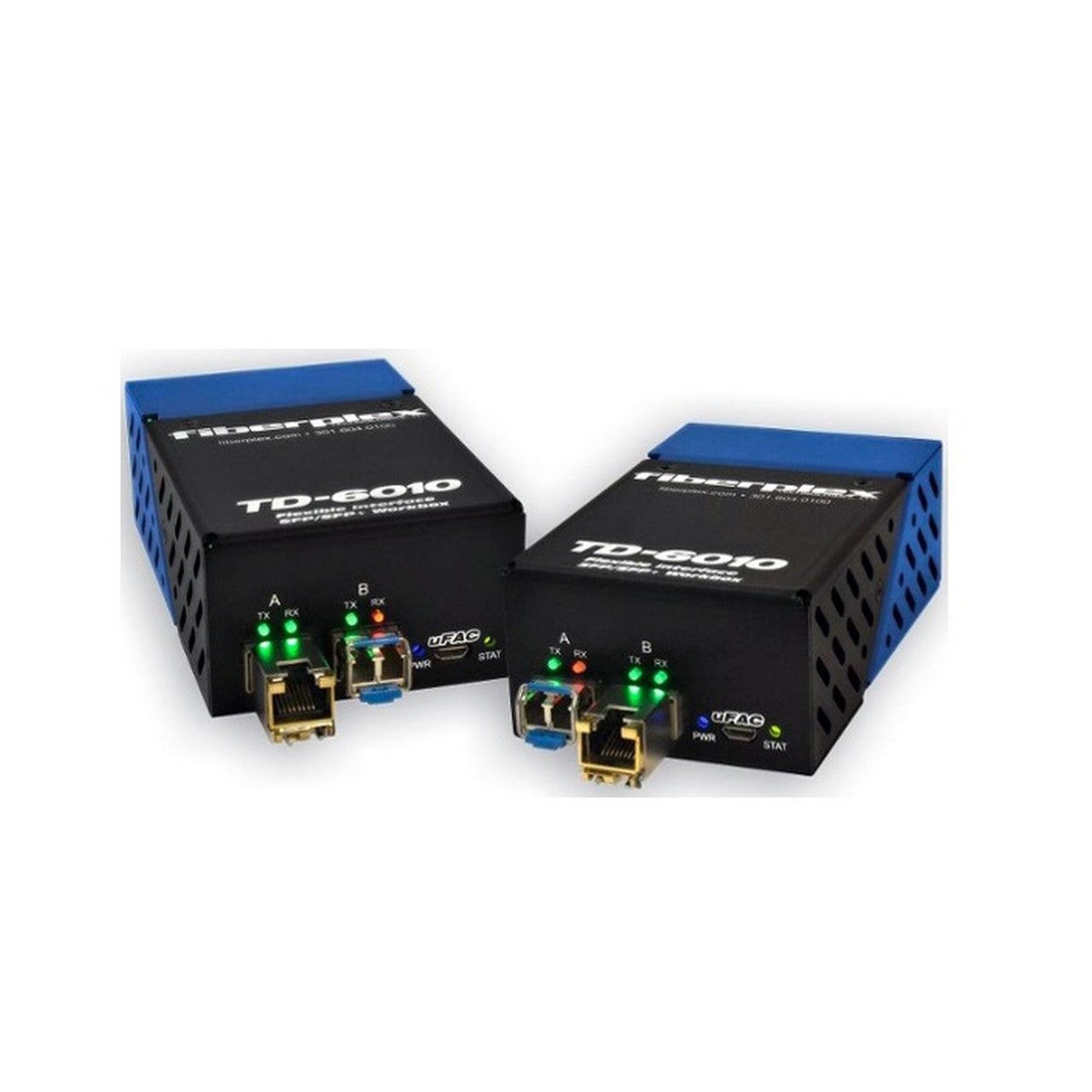

Fiberplex TKIT-ETH-M Preconfigured 10/100/1000 Base-T Ethernet To Multimode Optical Conversion Pair(Fiberplex Tkit Eth M Preconfigured 10 100 1000 Base T Ethernet To Multimode Optical Conversion Pair)

Fiberplex TKIT-ETH-M Preconfigured 10/100/1000 Base-T Ethernet to Multimode Optical Conversion Pair

The FiberPlex Technologies `TKIT' bundles takes the incredible flexibility of the TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific application. Includes AC Power Adapters. All TKIT boxes come equipped with a USB 2.0 Micro-B Connection for monitor control. It is a USB port intended to monitor and control the installed SFP. It is for future functionality only, Fiberplex currently does not have software available for this.

Key Features

• Up to 1.25Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Compact RJ-45 connector assembly
• 1000 BASE-T operation in host systems with SERDES interface
• 10/100/1000Mbps compliant in host systems with SGMII interface

Technical Specifications

Storage Temperature (C)
-40 - 85C
OperatingTemperature (C)
0 - 50C
Interface
Full speed USB 2.0 compliant MicroB Device
Optical Modules
2 SFP+ MSA (SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 - 12.5 gigabits
