IC Realtime IH-ESL72 Electric Strike Door Lock(Ic Realtime Ih Esl72 Electric Strike Door Lock)

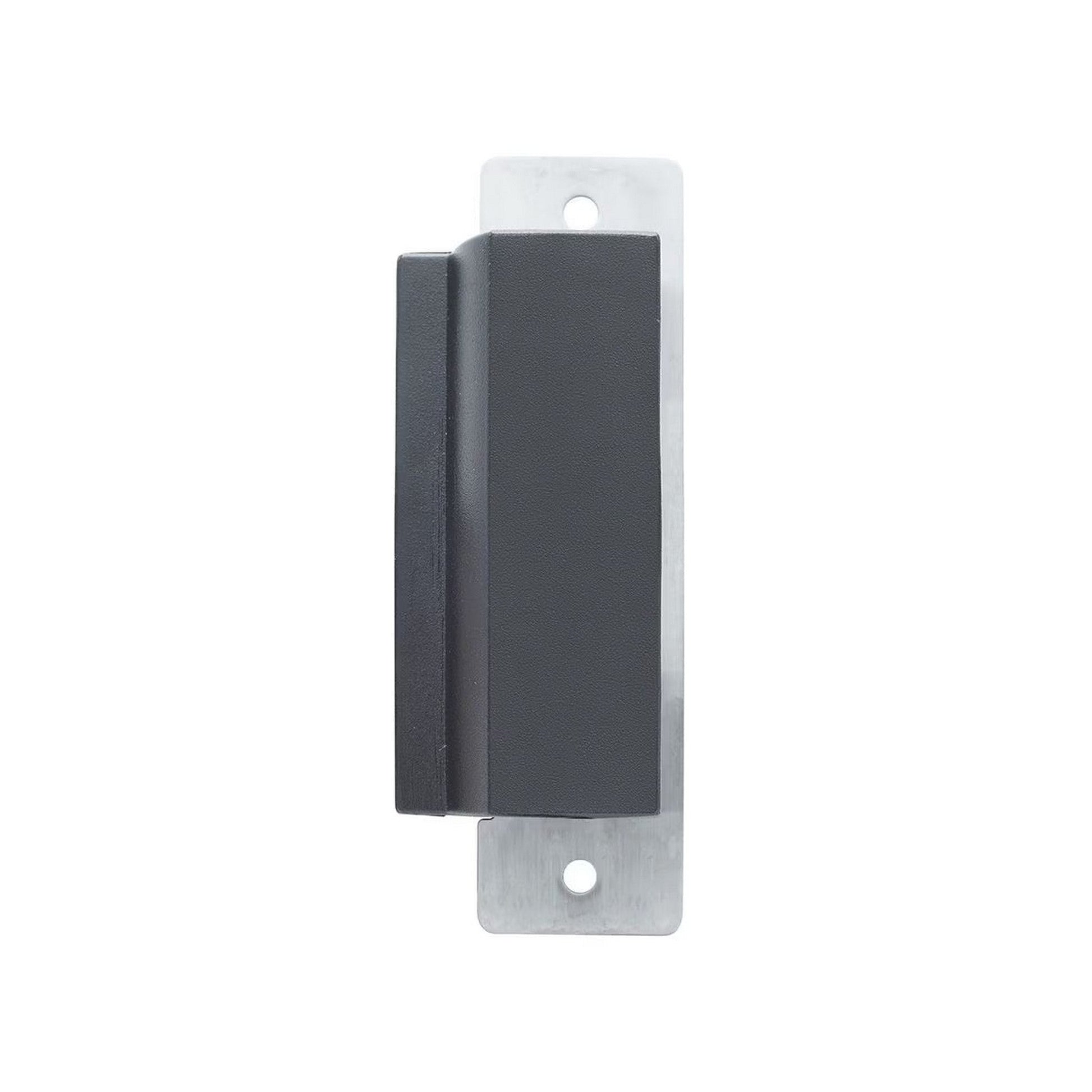

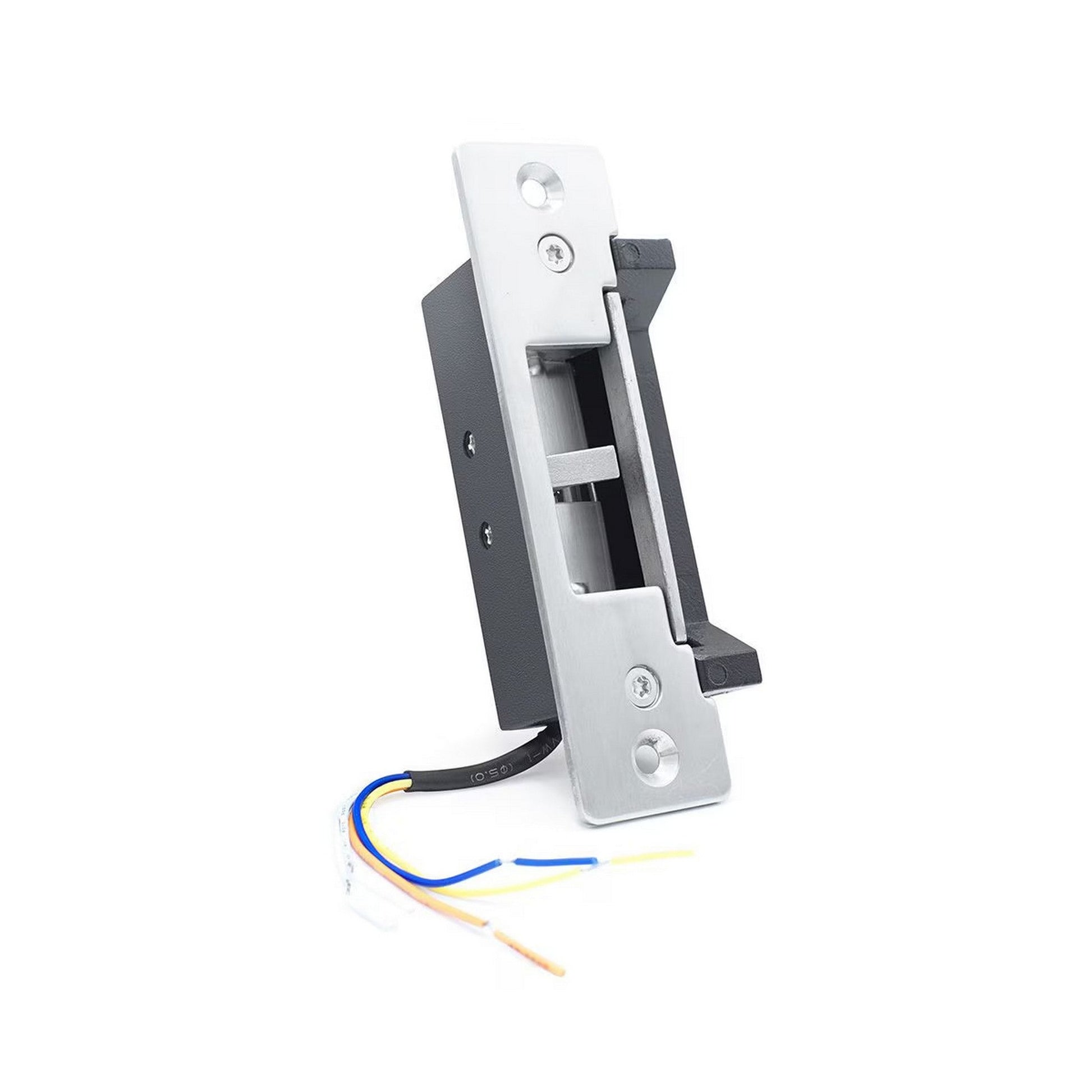

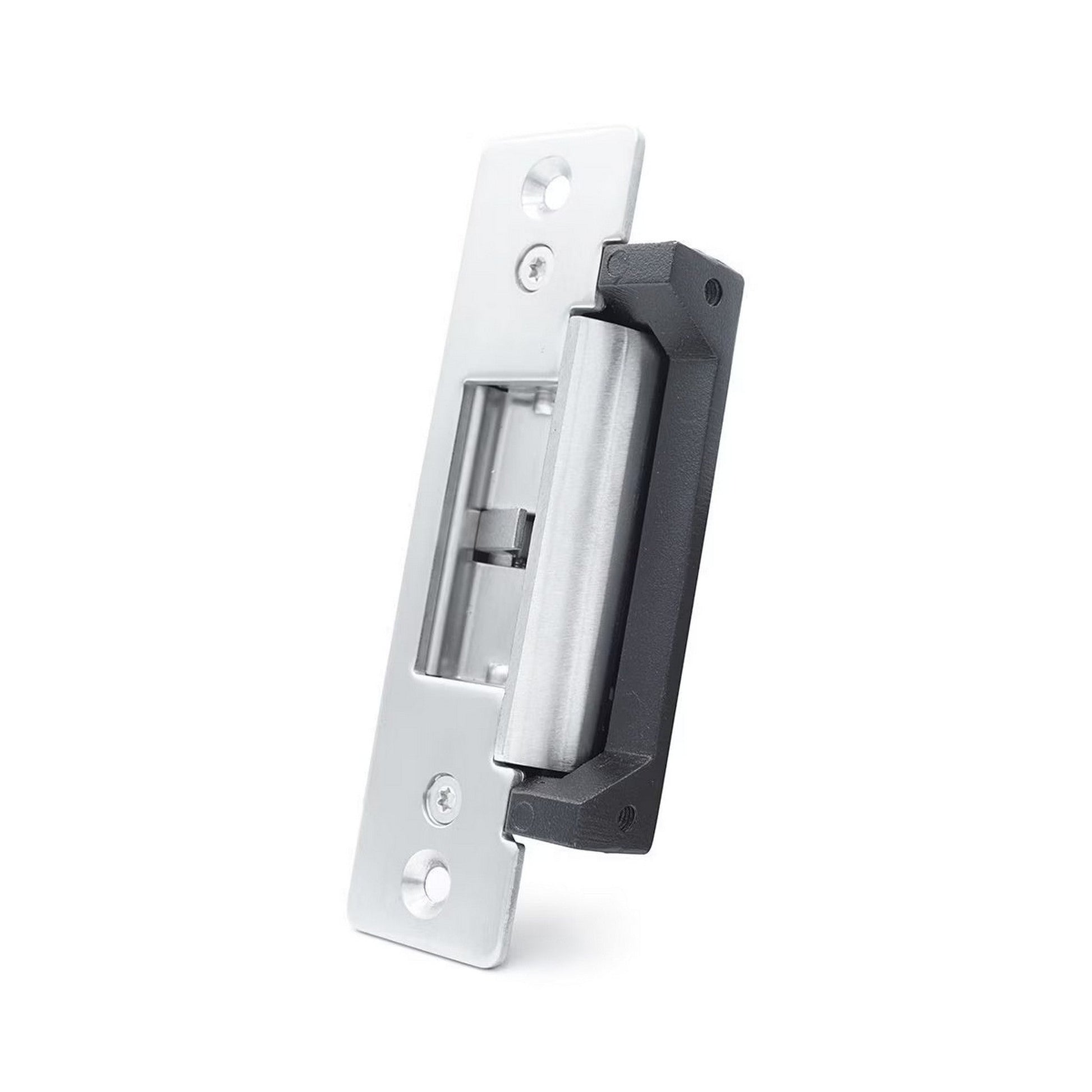

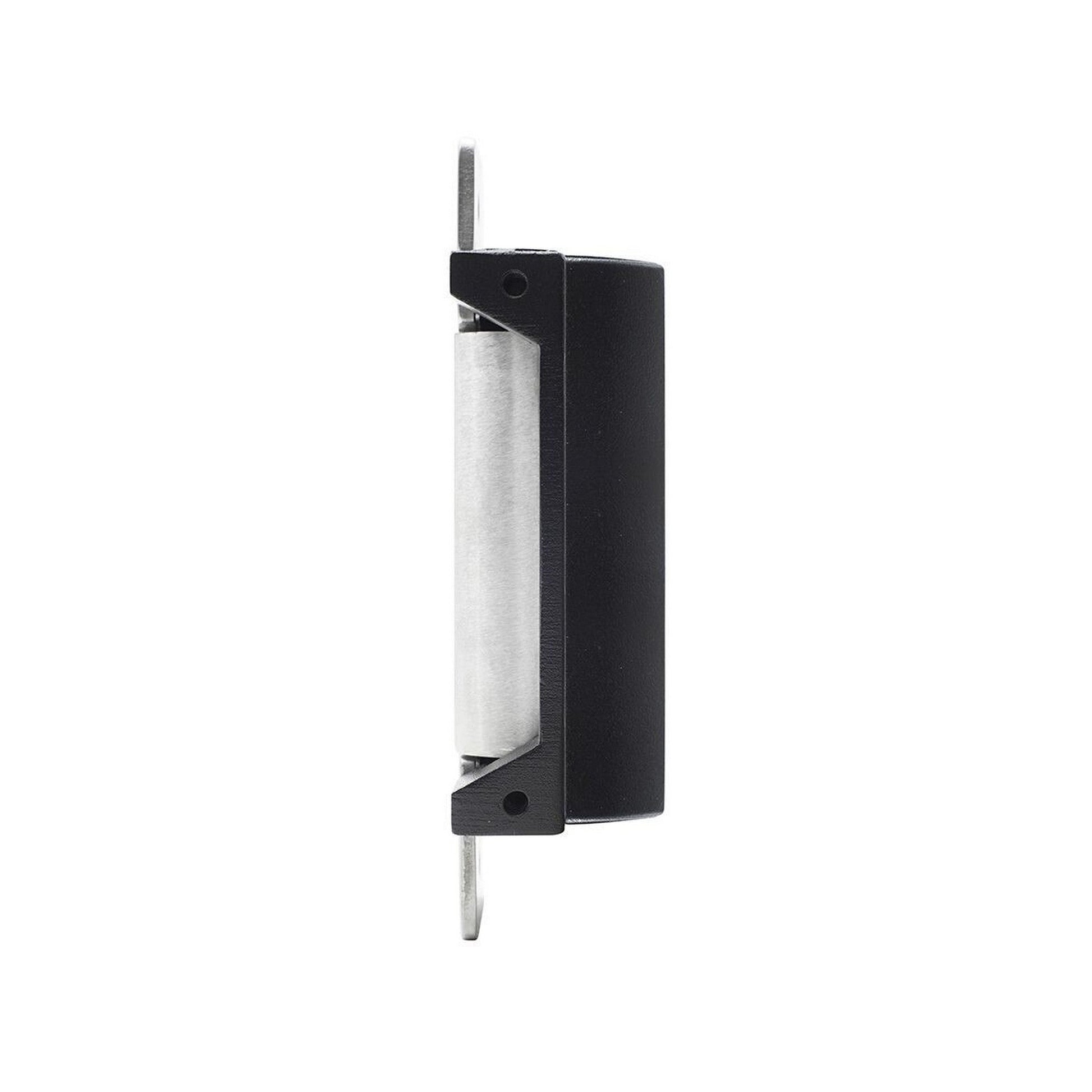

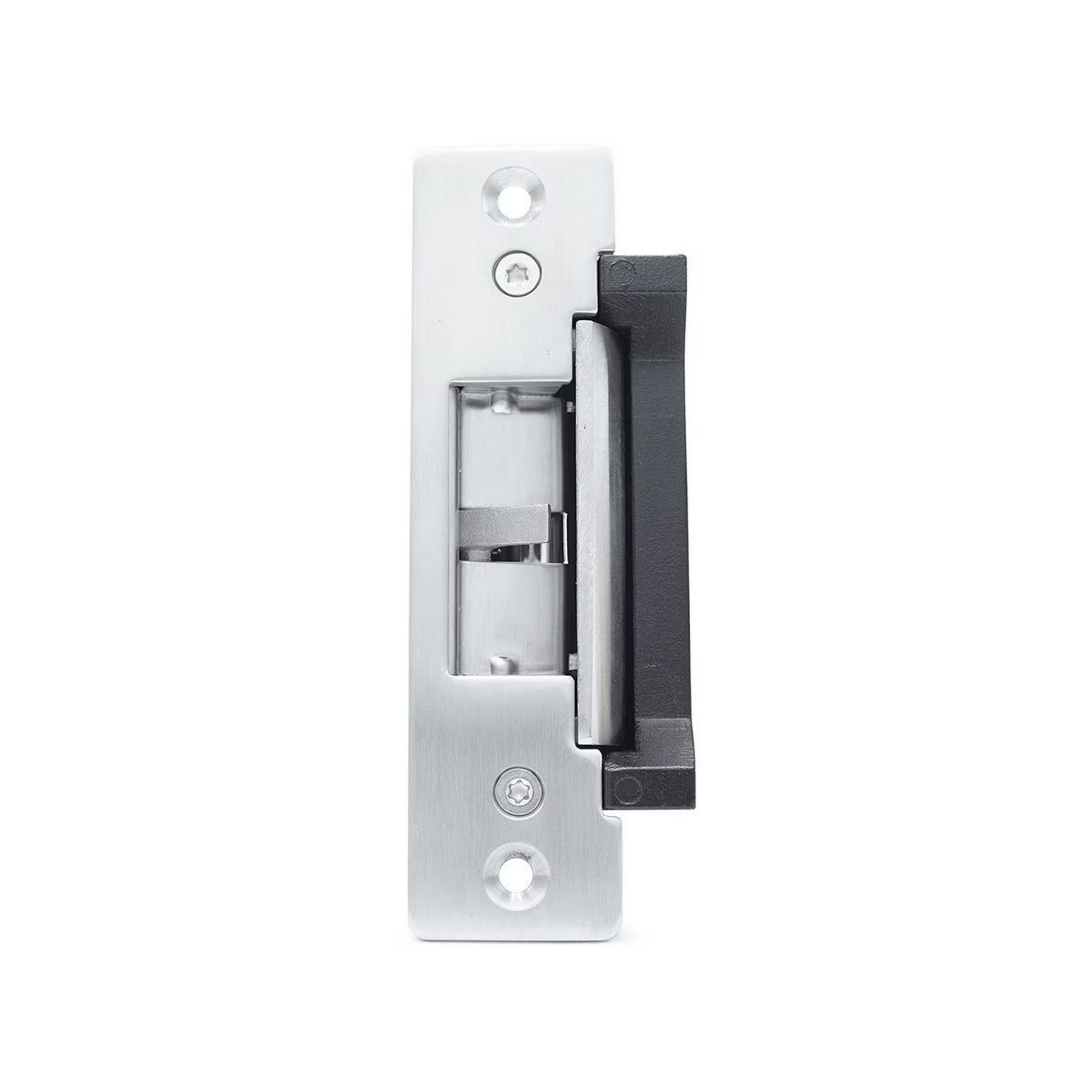

IC Realtime IH-ESL72 Electric Strike Door Lock

The IC Realtime IH-ESL72 Electric Strike Door Lock is a robust and reliable solution for securing doors with fail-secure functionality. Designed to withstand up to 1100 lbs of anti-pull force, this electric strike provides unparalleled security in various environments. Whether for commercial, industrial, or residential use, its precision stainless steel casing ensures long-lasting durability. With a compact design measuring just 6.5 x 1.3 x 1.4 inches, the IH-ESL72 strikes a perfect balance between strength and functionality.

With an operating temperature range from -30°C to +60°C (-22°F to +140°F), this electric strike lock performs flawlessly in both extreme heat and cold. Featuring a high level of vandal resistance and a power consumption of 320mA at DC12V, it ensures optimal performance without compromising security. The stainless steel construction enhances its durability, making it ideal for challenging environments.

The IC Realtime IH-ESL72 is easy to install and comes with a fail-secure design, ensuring the door remains locked during power outages or system failures. It is the perfect solution for applications where security and reliability are paramount.

• Fail-Secure Operation
• Supports Up To 1100 lbs of Anti-Pull Force
• Stainless Steel Precision Casting
• Compact Dimensions: 6.5 x 1.3 x 1.4 inches
• Operating Temperature Range: -30°C to +60°C
• Power Supply: DC12V
• Power Consumption: 320mA
• Vandal Resistance: 1100 lbs (500kg)

Dimensions: 6.5 x 1.3 x 1.4 inches (165 x 32 x 35mm)
Weight: 2 lbs
Power Supply: DC12V
Power Consumption: 320mA

Operating Conditions: -30°C to +60°C (-22°F to +140°F)
Operating Humidity: 95%
Vandal Resistance: 1100 lbs (500kg)

Casing: Stainless steel precision casting

• IC Realtime IH-ESL72 Electric Strike Door Lock
• Mounting Hardware
• User Manual
