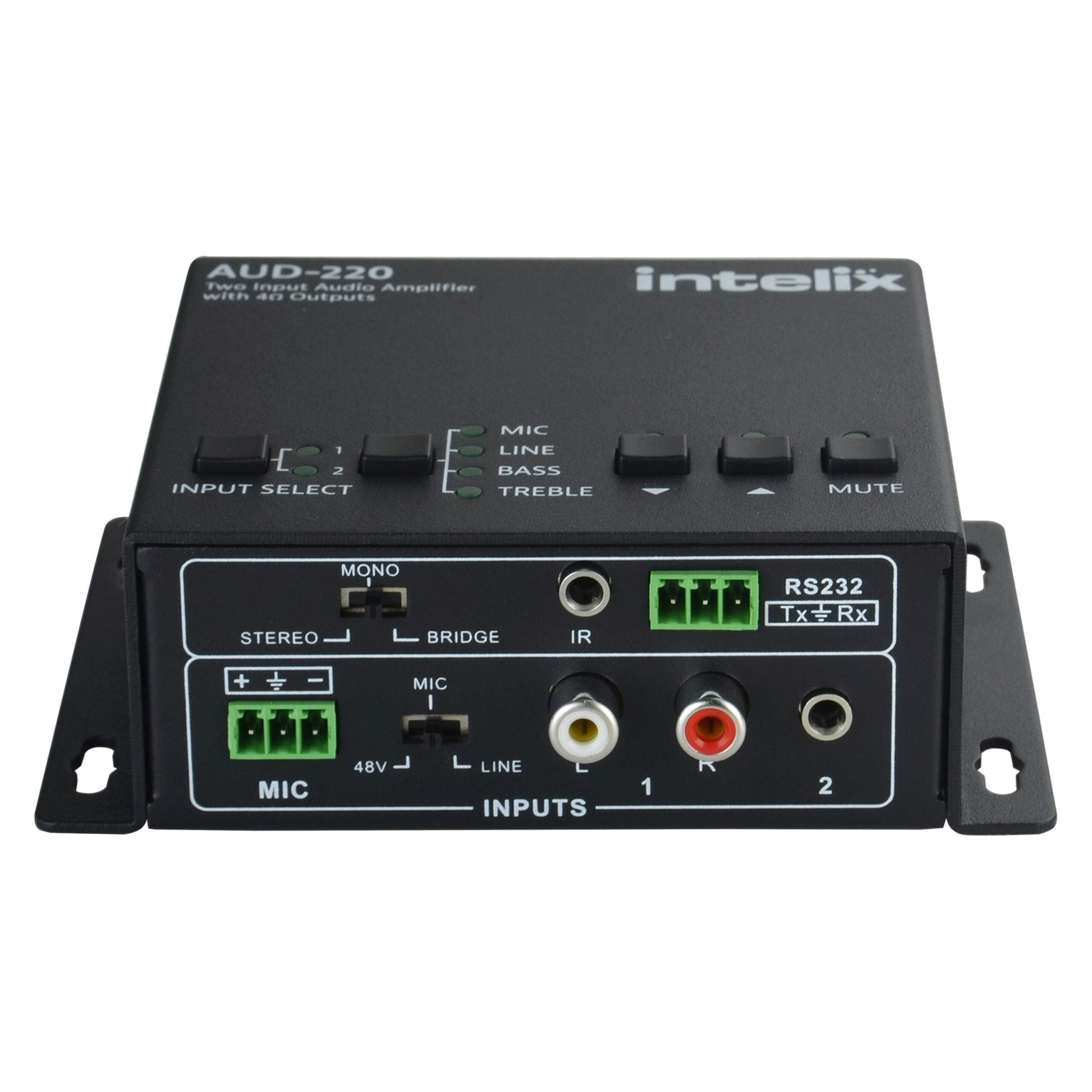

Intelix AUD-220 2 Input Audio Amplifier(Intelix Aud 220 2 Input Audio Amplifier)

Intelix AUD-220 2 Input Audio Amplifier

The Intelix AUD-220 is a 2x20 watt Class D amplifier with 8 speaker output. The amplifier features two analog audio inputs and a balanced microphone input with ducking functions. Additional features of the AUD-220 include input and microphone volume control, bass and treble adjustments, microphone mixing with source audio, and three modes of microphone input support (48 dB gain, 48 dB gain with 48V phantom power, and line level). The AUD-220 has three methods of control: push summary, RS232, and IR with the optional AUD-220-IR accessory kit.

Key Features

• Two analog audio inputs
• Microphone input with ducking or mixing
• Bass, treble adjustments
• Line input and/or microphone muting
• Stereo, 2x mono, or bridged mono speaker output
• Line level loop output to daisy chain
• Front panel and optional IR control
• Applications
  Commercial audio systems and solutions
  Ideal for corporate facilities, churches, schools
