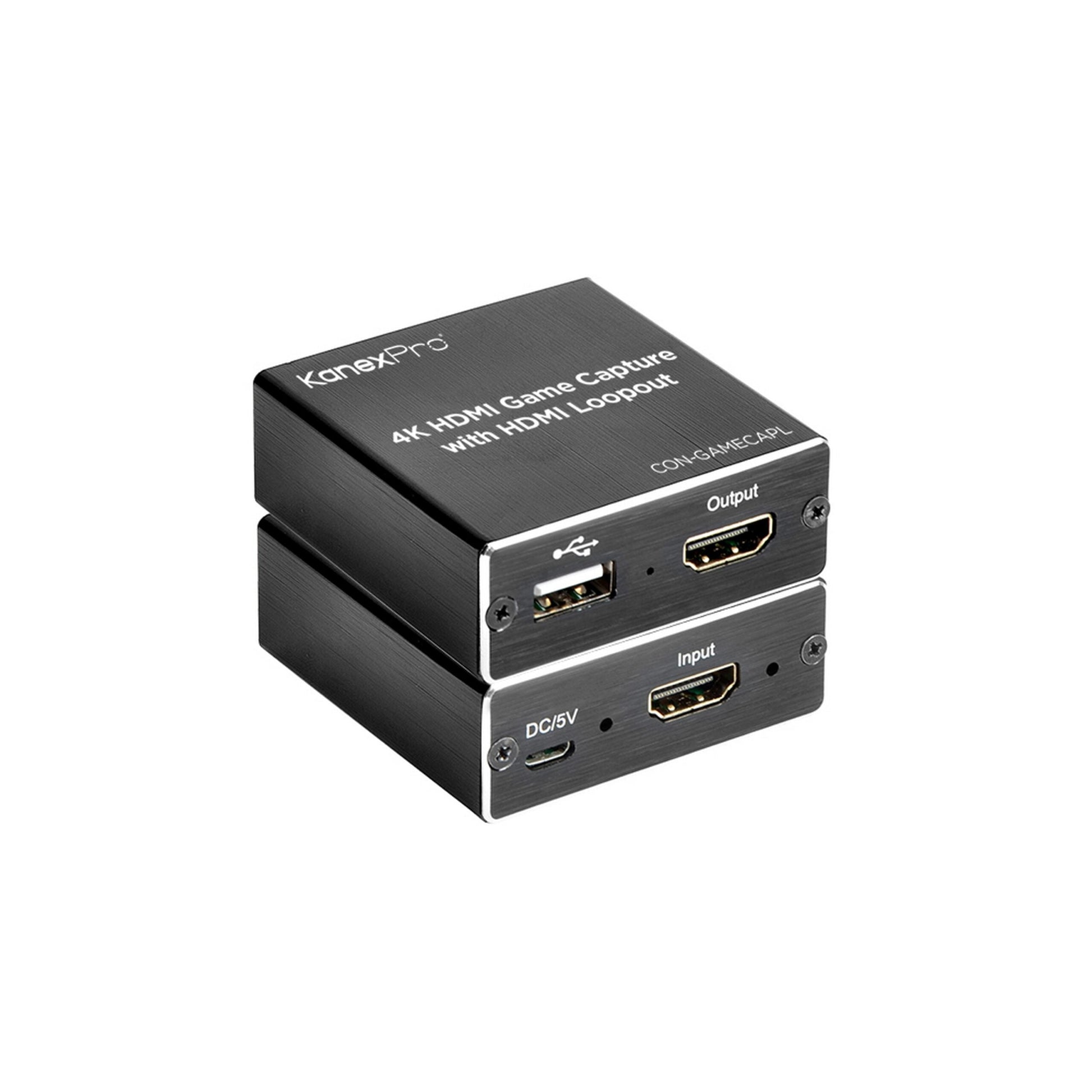

KanexPro CON-GAMECAPL HDMI 4K USB 2.0 Gaming Capture Dongle(Kanexpro Con Gamecapl Hdmi 4k Usb 2 0 Gaming Capture Dongle)

KanexPro CON-GAMECAPL HDMI 4K USB 2.0 Gaming Capture Dongle

The KanexPro CON-GAMECAPL is a video capture device that can capture both HDMI video and HDMI audio, sending audio and video signals to a computer in order to preview or record video content. Suitable for video game console capture, educational recordings, medical imaging, or streaming with the use of an action camera. Featuring a Loop out port, you can connect to both a television display and a computer at the same time allowing you to both stream and play at the same time with no loss of performance.

Key Features

• Supports input max resolution 3840-2160@30Hz;
• Supports output max resolution 3840-2160@30Hz;
• Supports 8/10/12bit deep color;
• Supported by most video acquisition software, such as VLC, OBS, Amcap, etc;
• Supported by Windows, MacOS
• Conforms to USB Video and UVC standards;
• Conforms to USB Audio UAC standards;
• Self Powered, external power not required
• 3ft HDMI Cable Included

Technical Specifications

HDMI resolution
Max input can be 3840-2160@30Hz
Support video for
8/10/12bit Deep color
Video output format
YUV?JPEG
Video output resolution
Max output can be 3840-2160@30Hz
Support audio format
L-PCM
Input cable distance
15m, AWG26 HDMI High Speed cable
Max working current
0.4A/5VDC
Operating Temperature range
(-10 to +55)
Dimension (L x W x H)
64x28x13 (mm)
Weight
21.4g
