Klipsch KI-262 Series 12-Inch Trapezoidal 2-Way Loudspeaker, Single Unit

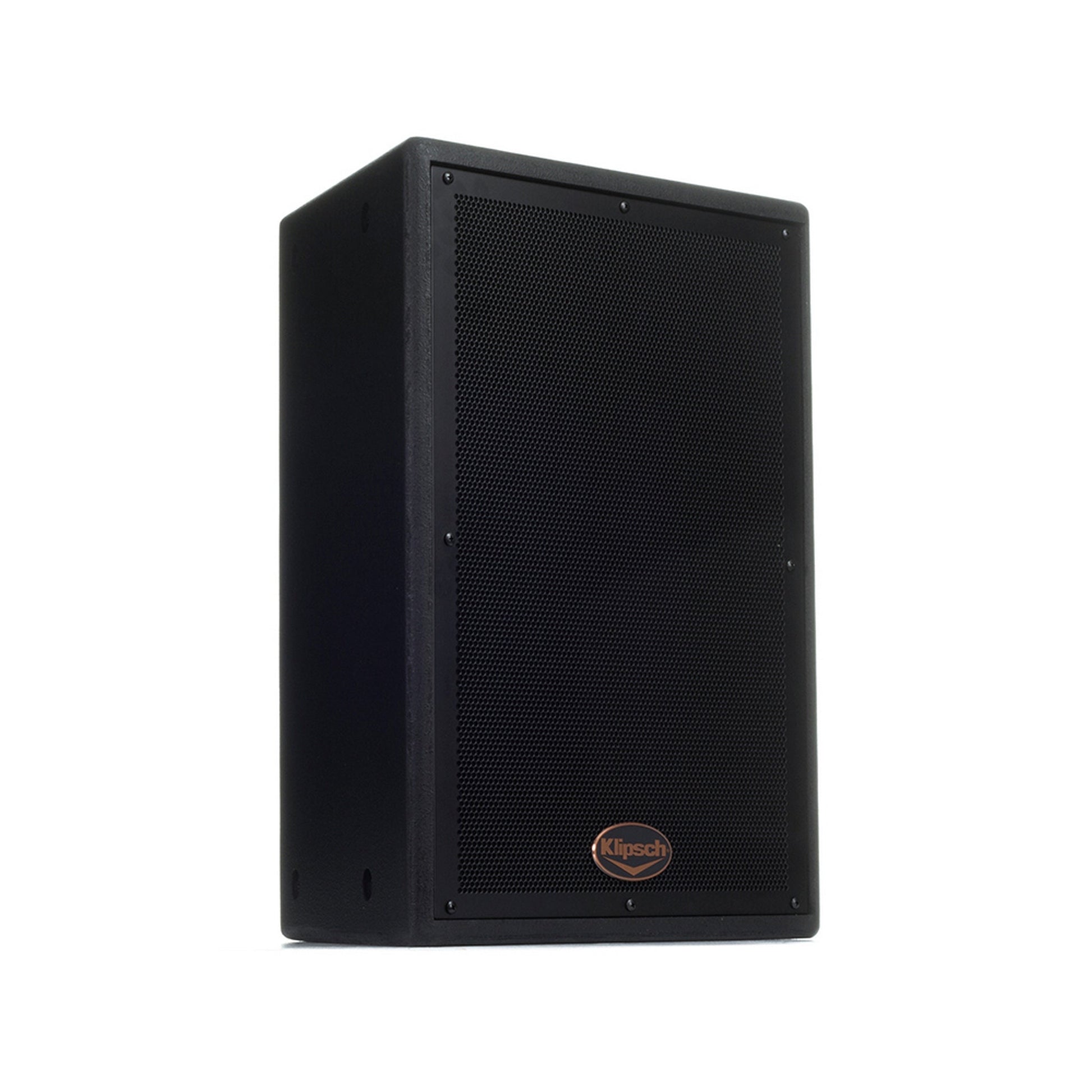

The Klipsch KI-262-SMA-II is a 12-inch, two-way trapezoidal loudspeaker designed for permanent installations in commercial and performance venues. Engineered for applications where compact size, uniform power response, and ease of installation are critical, this speaker is ideal for theaters, auditoriums, clubs, churches, and A/V production environments. Its Tractrix ® horn-loaded design ensures high efficiency and controlled directivity, delivering clear and consistent sound across the listening area.

Constructed with a 3/4" 7-ply birch plywood cabinet and a 1" MDF motorboard, the KI-262-SMA-II offers durability and acoustic integrity. The enclosure features dado "lock-joint" and rabbet construction techniques on CNC-fabricated panels for long-term reliability. Sixteen built-in 3/8"-16 threaded fly points and two 5/16"-18 threaded holes provide flexible mounting options, allowing for seamless integration into various sound reinforcement systems.

Key Features

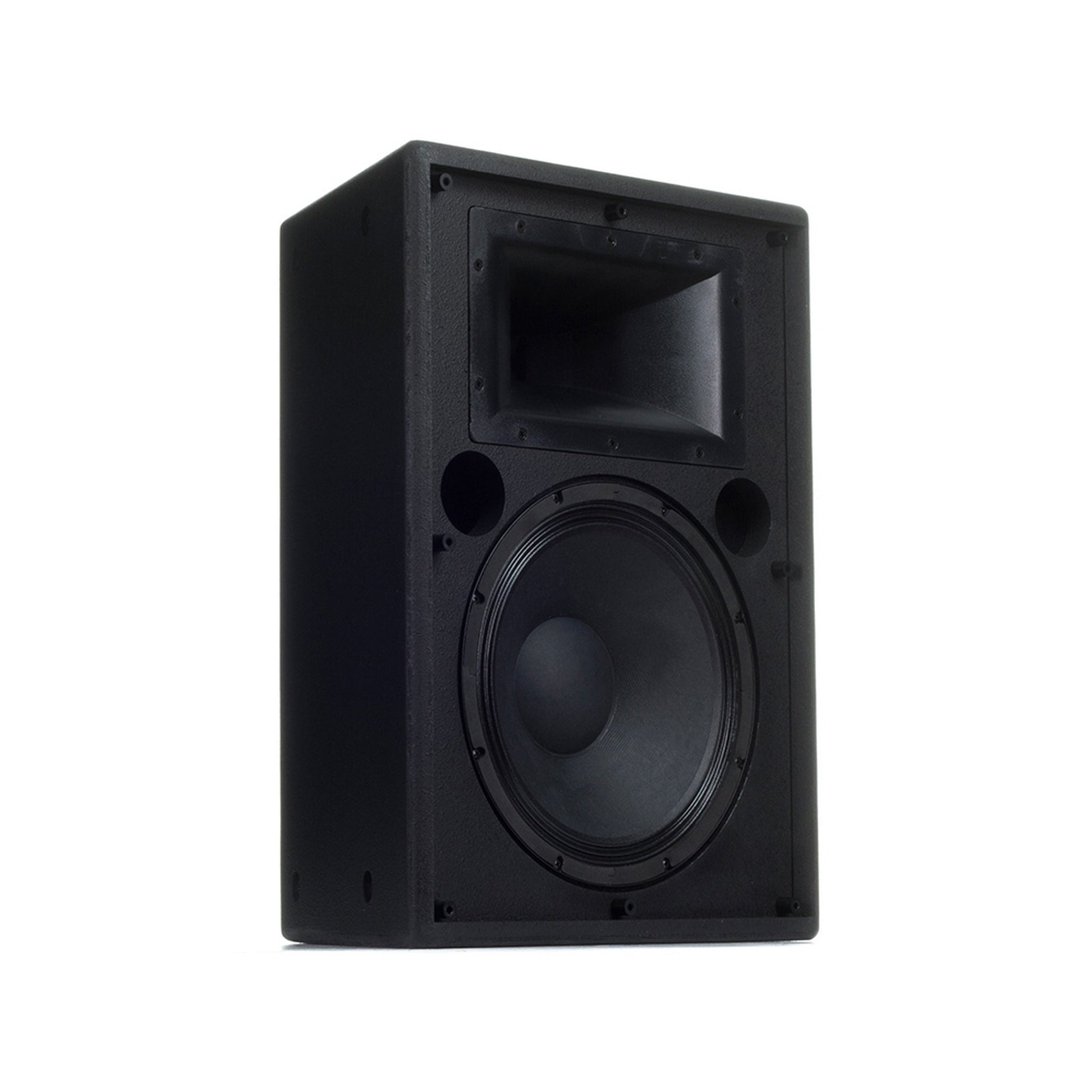

• Drivers: 12" K-281-EP woofer and 1.75" K-70-G titanium compression driver on a K-604 horn
• Frequency Response: 71 Hz – 20 kHz
• Power Handling: 400 watts RMS; 1600 watts peak
• Sensitivity: 105 dB
• Maximum SPL: 121 dB continuous; 127 dB peak
• Nominal Impedance: 8 ohms (minimum 4.1 ohms @ 152 Hz)
• Coverage Pattern: 60 ° horizontal x 40 ° vertical
• Enclosure Material: 3/4" 7-ply birch plywood cabinet with 1" MDF motorboard
• Mounting Options: Sixteen 3/8"-16 threaded fly points; two 5/16"-18 threaded holes for C-bracket

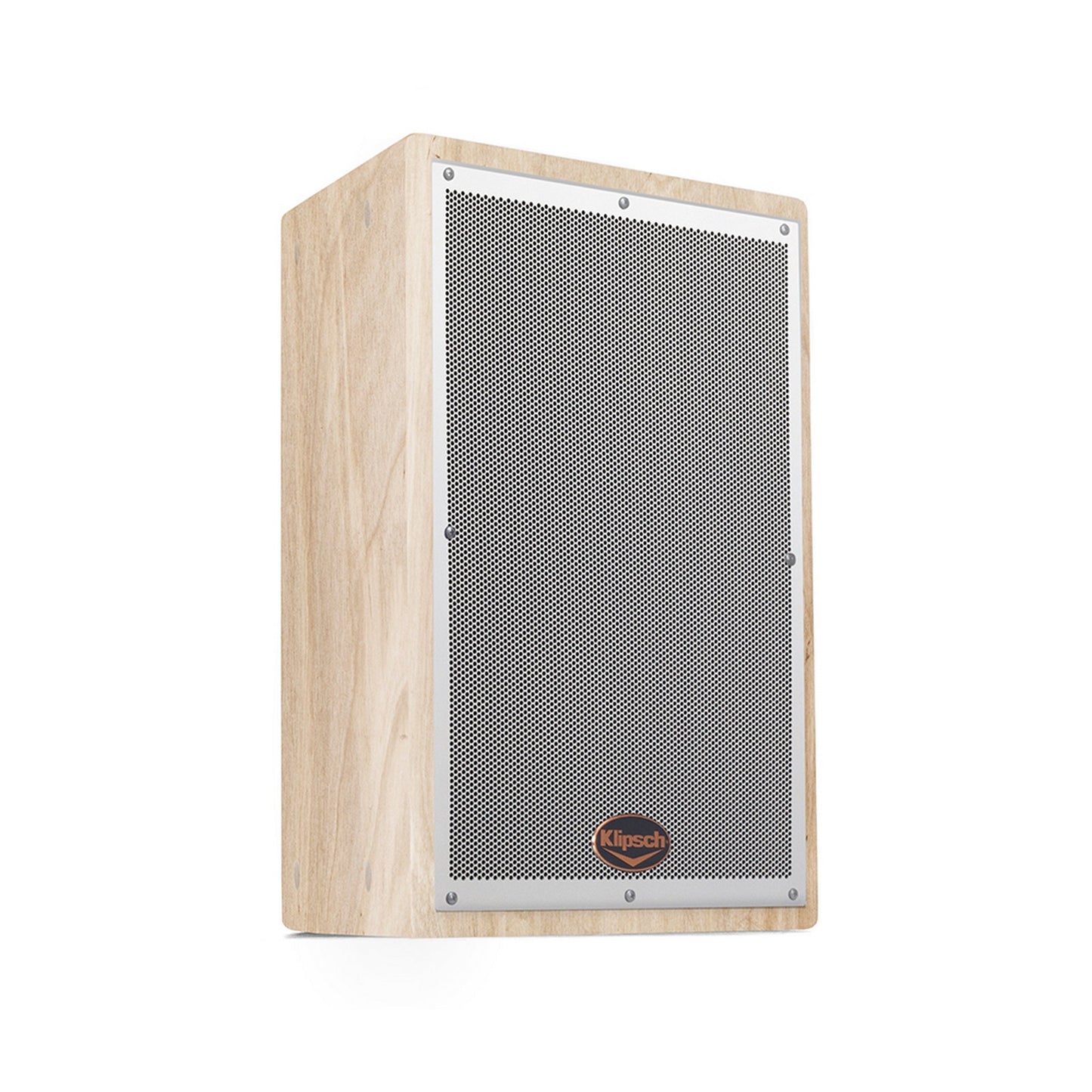

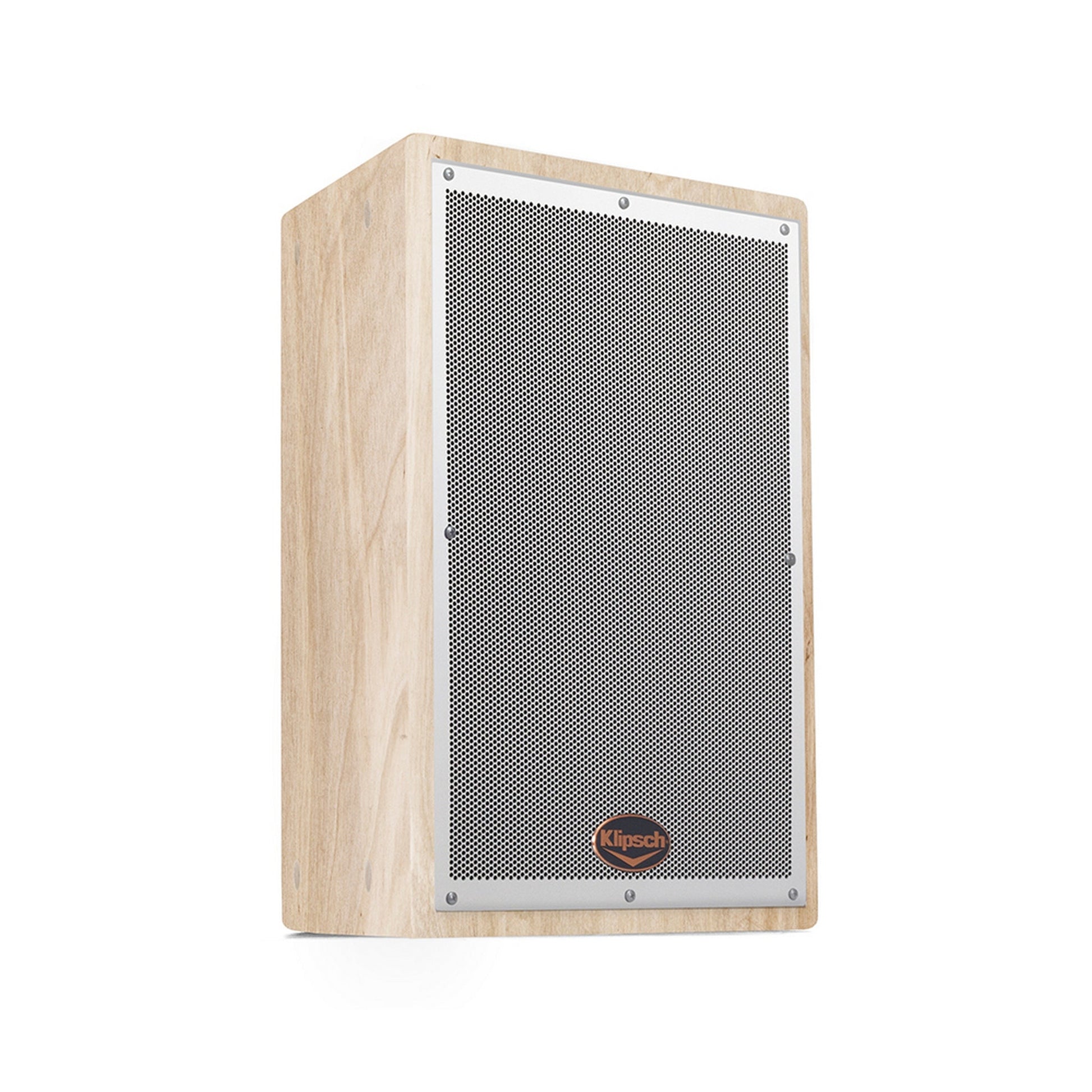

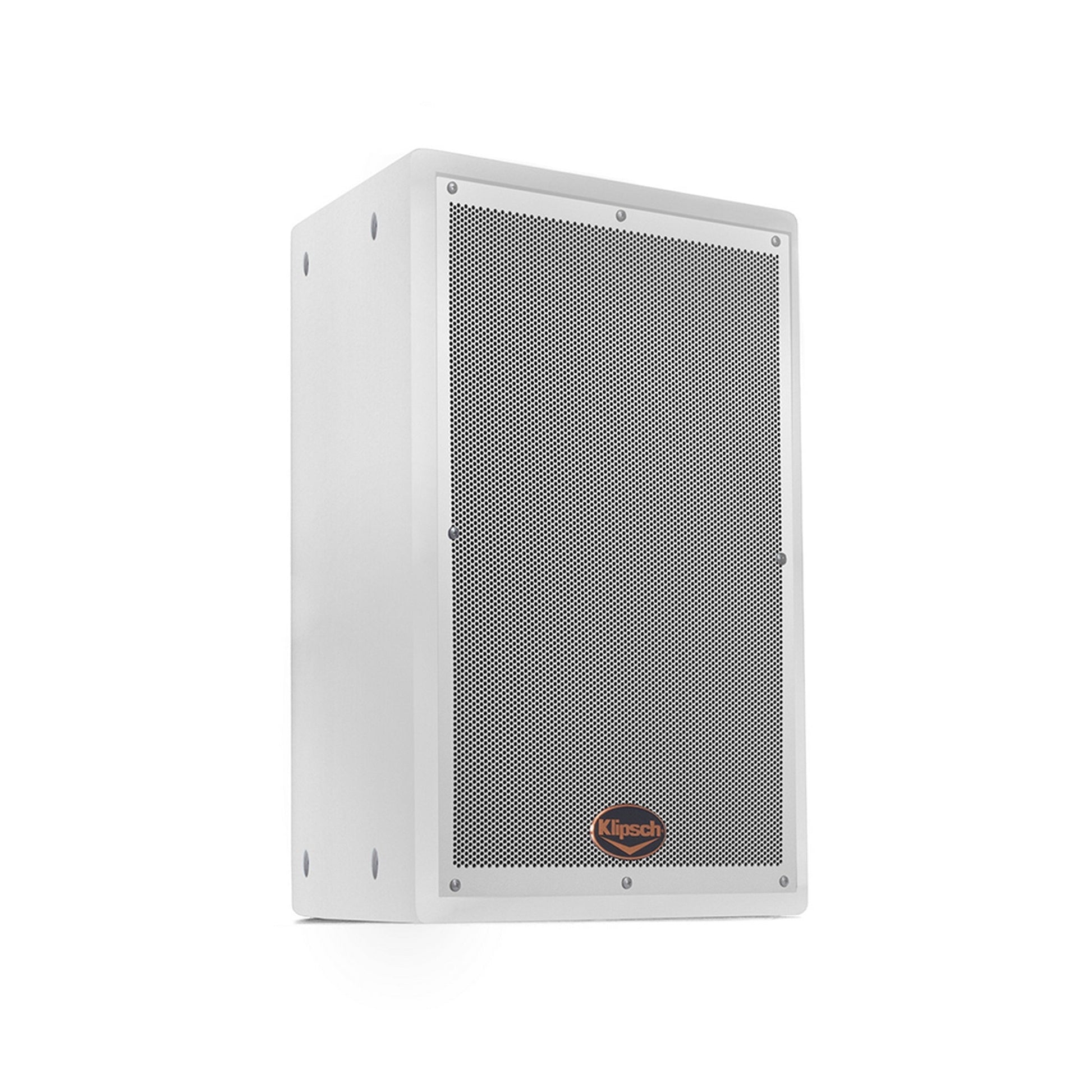

• Finish Options: Black, White, or Raw Birch

Technical Specifications

• Dimensions (H x W x D): 23" x 17" (front) / 6.8" (rear) x 12.6"
• Weight: 49 lbs

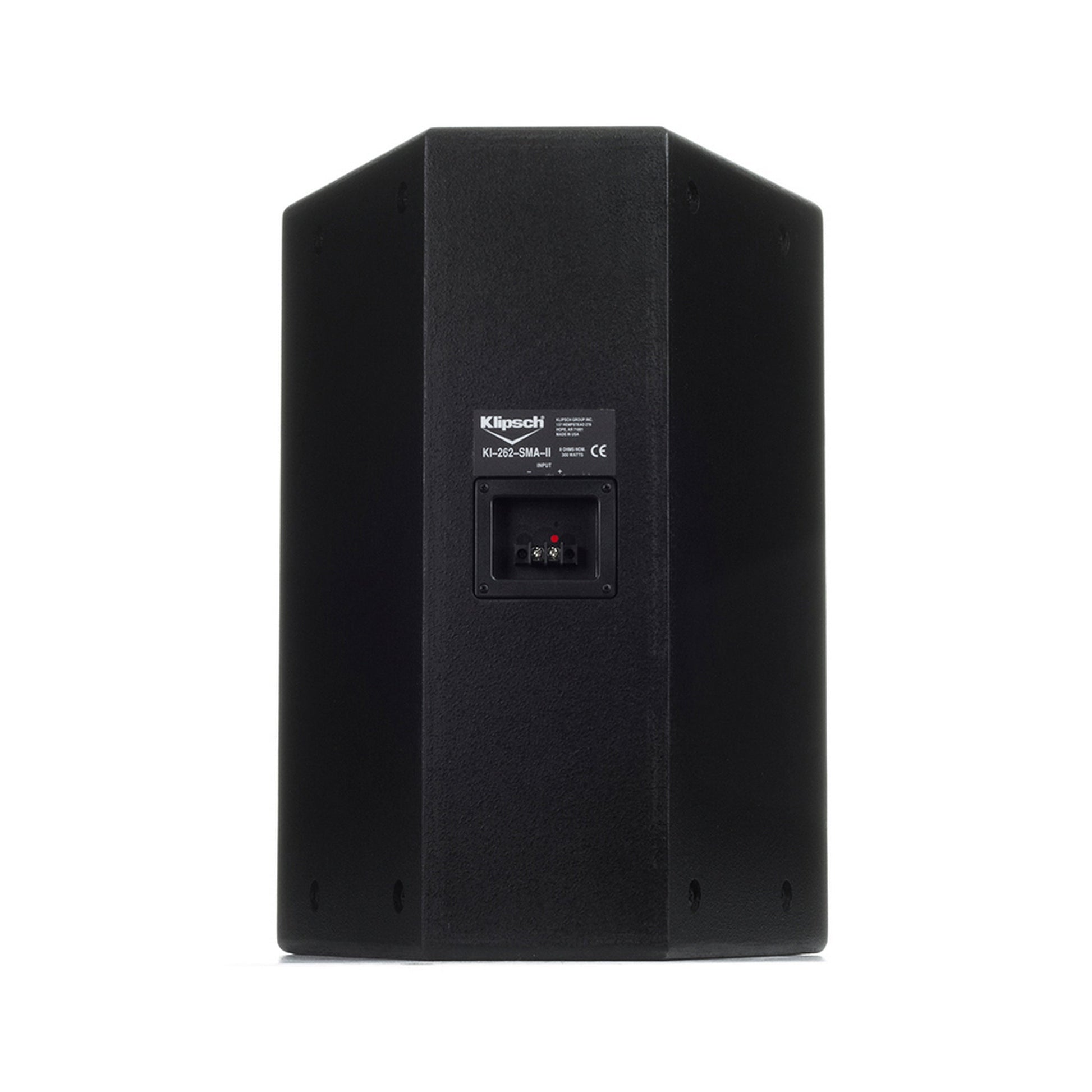

• Input Connection: Two-point barrier strip

Included in the Box

• Klipsch KI-262-SMA-II Loudspeaker
• Protective Grille
• User Manual
