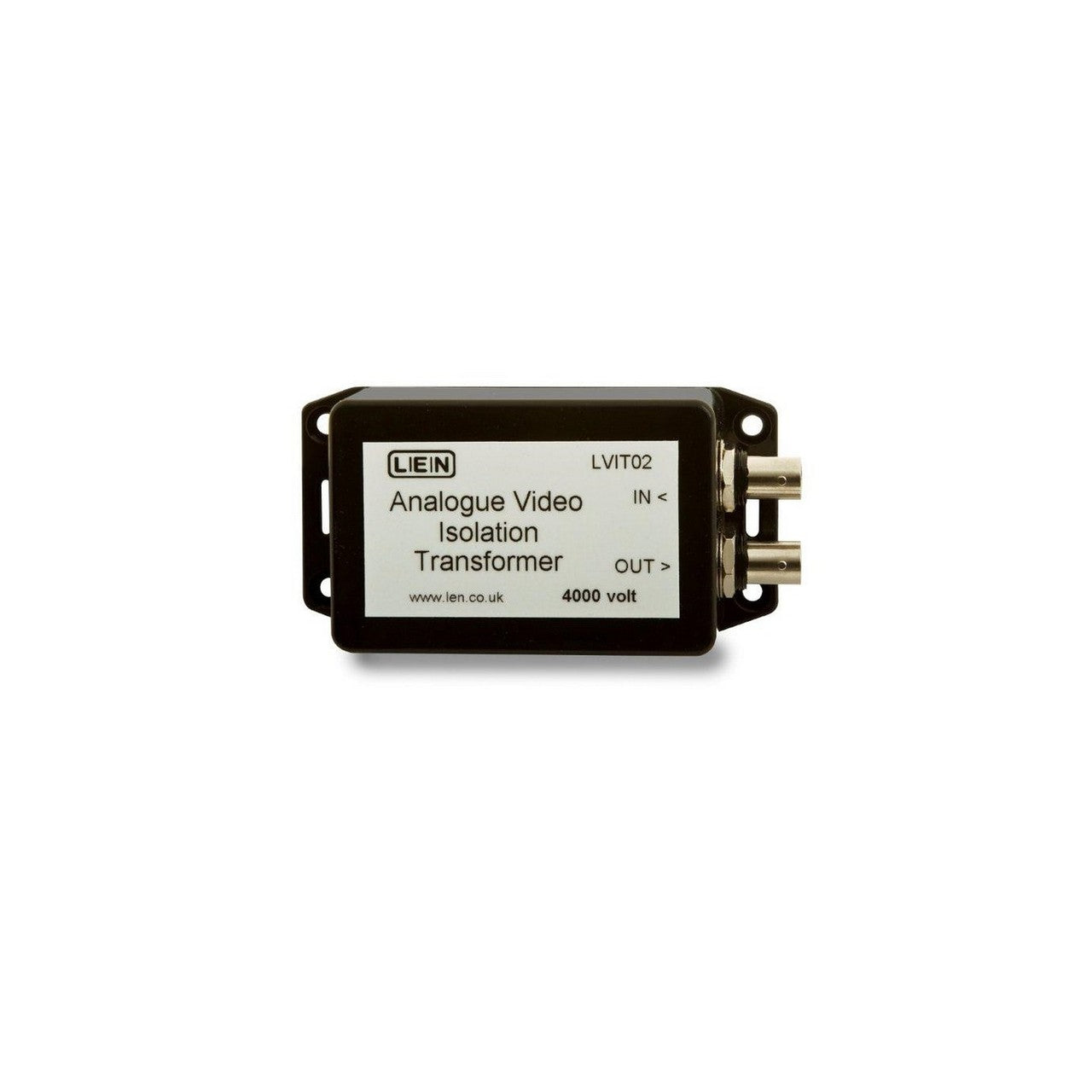

LEN LVIT02 Analog Video Hum Isolation Transformer Transparent PAL NTSC

The LEN Video Isolation Transformer acts as BOTH a Hum Eliminator AND a Ground Isolator whilst also improving on the performance of the traditional individual products.

The LVIT02 will remove severe interference caused by 50 or 60 Hz hum whilst a normal Humbucker will only remove moderate interference.

At the same time it acts as a high-performance Ground Isolator eliminating ground potential differences between equipment with a minimal phase and gain distortion. The LVIT02 has been developed to withstand the high breakdown voltages required of medical applications.

Key Features

• Eliminate severe interference (Hum eliminator)
• High breakdown voltage (Ground Isolator)
• Minimal differential phase or gain distortion
• Transparent to PAL and NTSC video
• Small size (8.5 x 5.6 x 3.9 centimetres)
• DC Block blocks DC signals

Technical Specifications

Breakdown voltage: Greater than 4kV.
Dimensions:
85 x 56 x 39 (l x w x h)mm excluding mounting flanges, 110mm length including flanges.
Weight:
170g.
