Lowell DSQ-805-72 Surface Mount Speaker, 12W, 8 Inch(Lowell Dsq 805 72 Surface Mount Speaker 12w 8 Inch)

Lowell DSQ-805-72 Surface Mount Speaker, 12W, 8 Inch

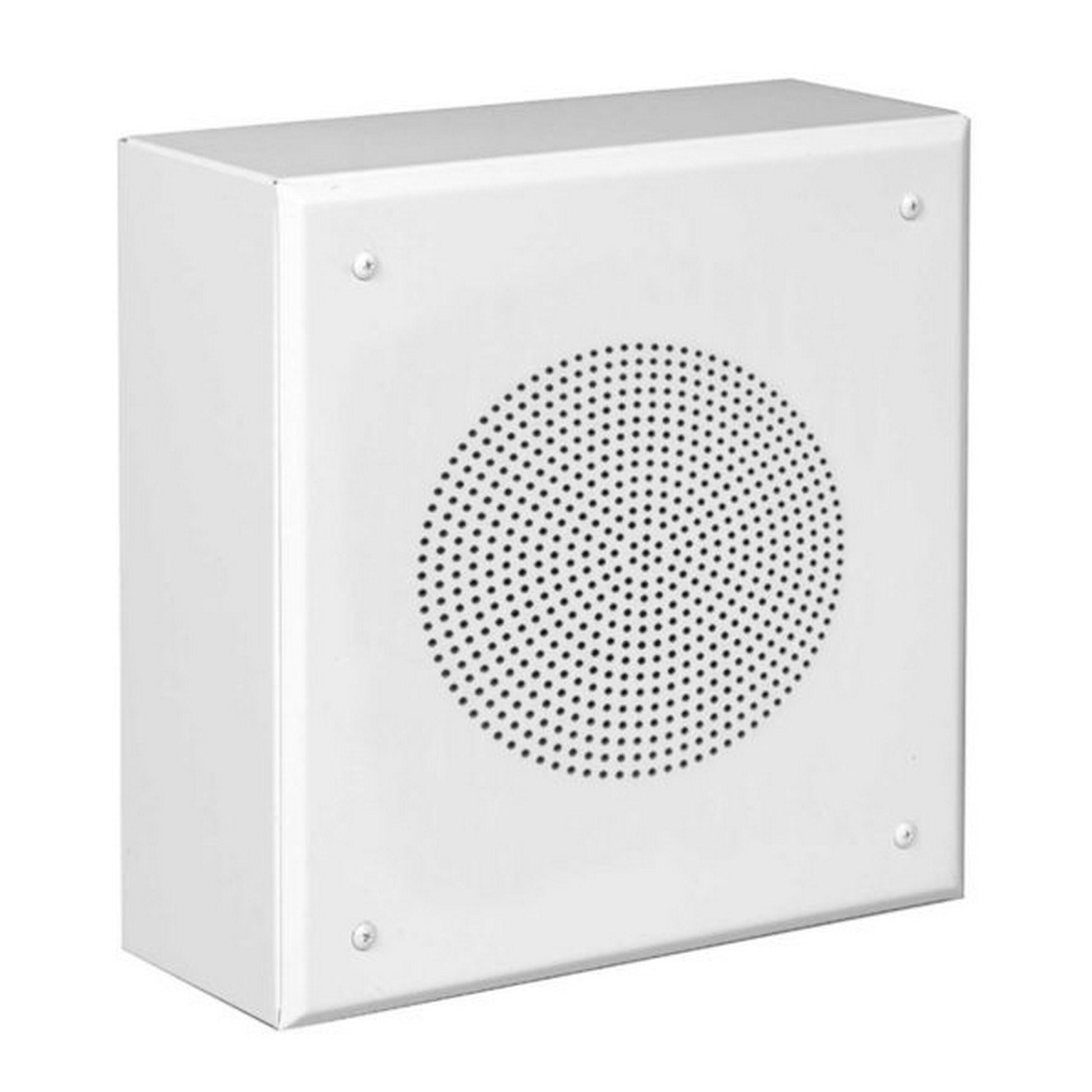

Surface-mount speaker -- ready-to-install speaker for background music and paging in classrooms, offices, retail locations and anywhere an attractive surface-mount speaker system is required. Includes 8 inch driver, transformer, backbox with straight front and grille.

Technical Specifications

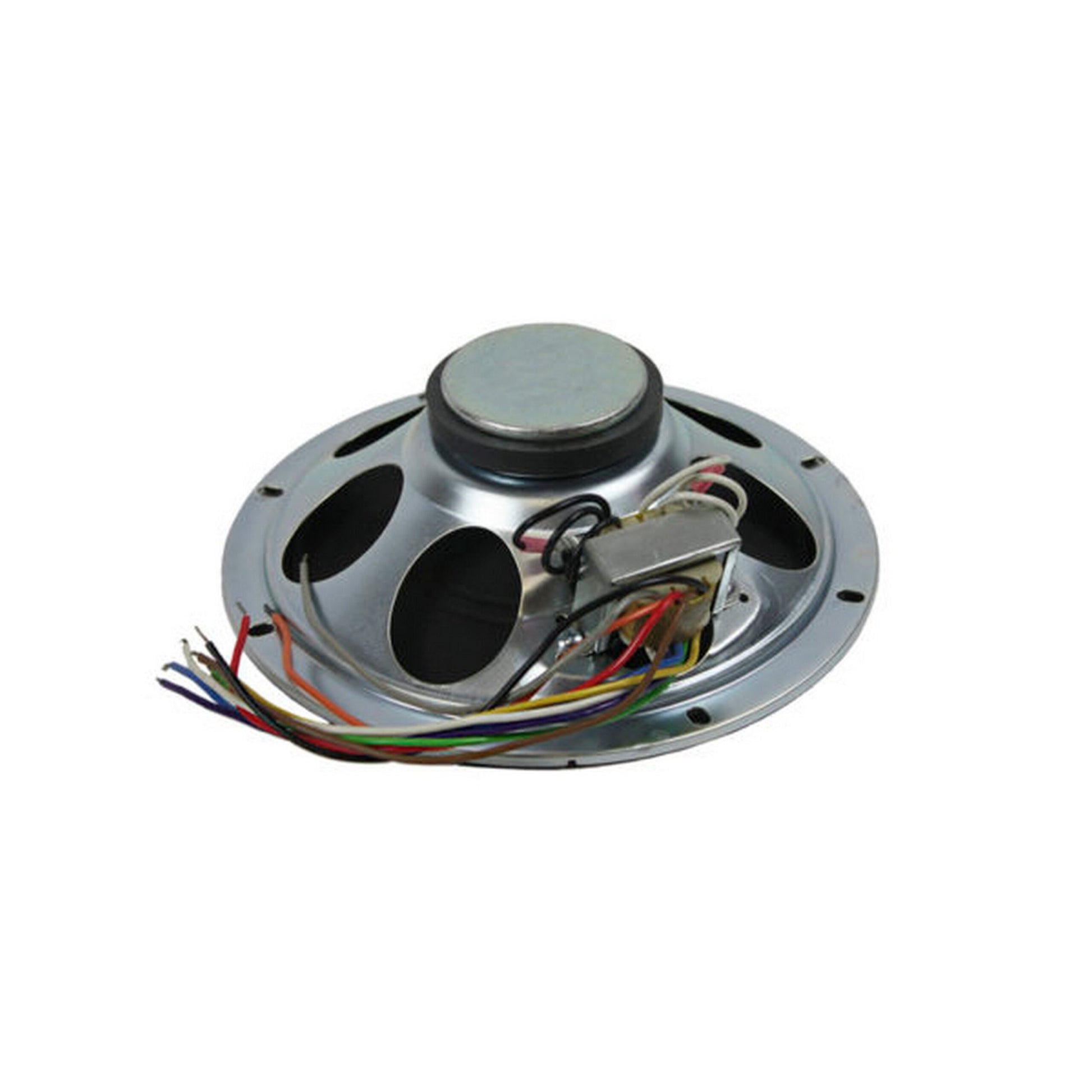

Driver (805A)
8 in. 12W dual cone driver with 5 oz. magnet
Transformer (TLM-572)
25V/70V transformer. Taps at .25, .5, 1, 2, 5W

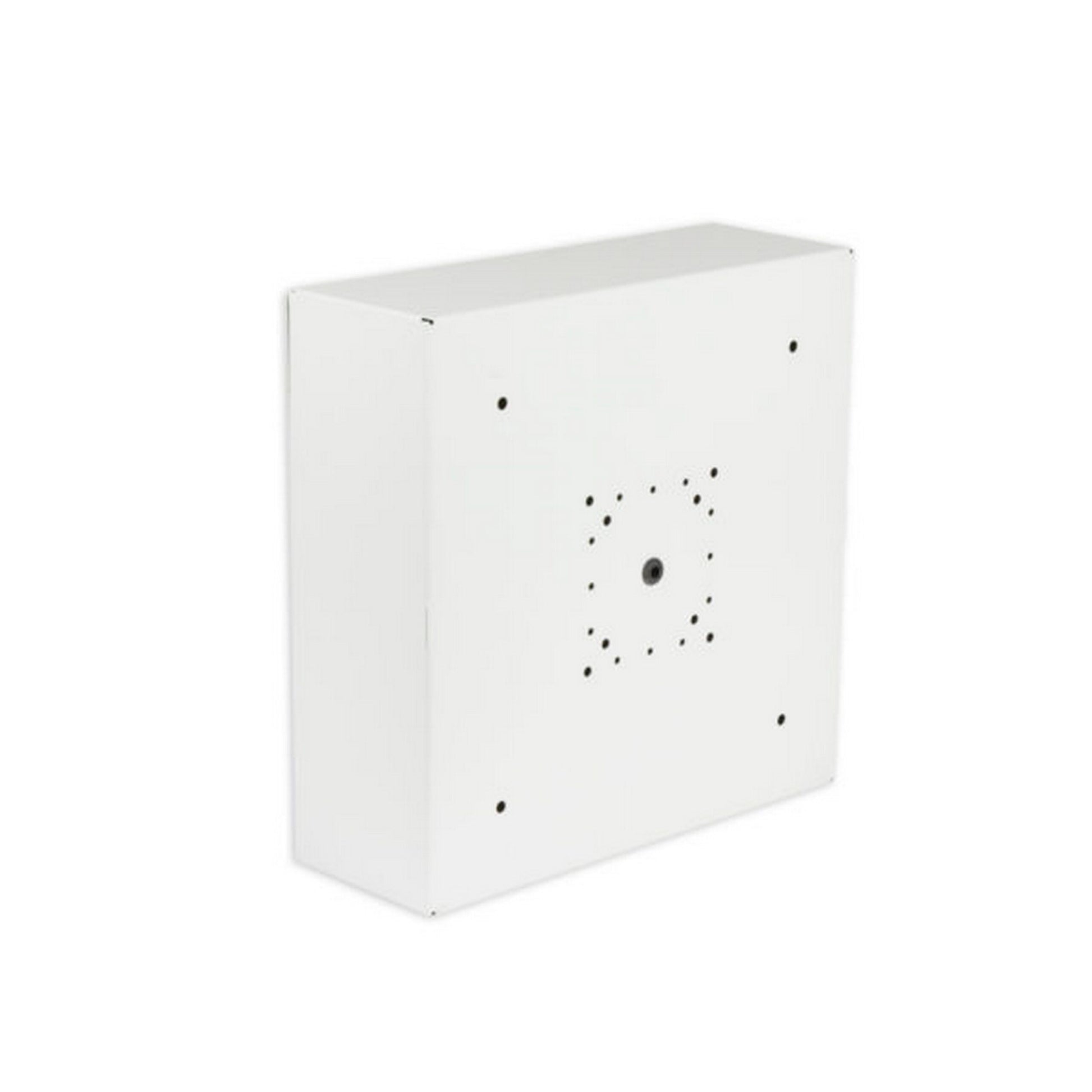

Enclosure
Steel. 11.5 in. x 11.5 in. x 4 in. White.

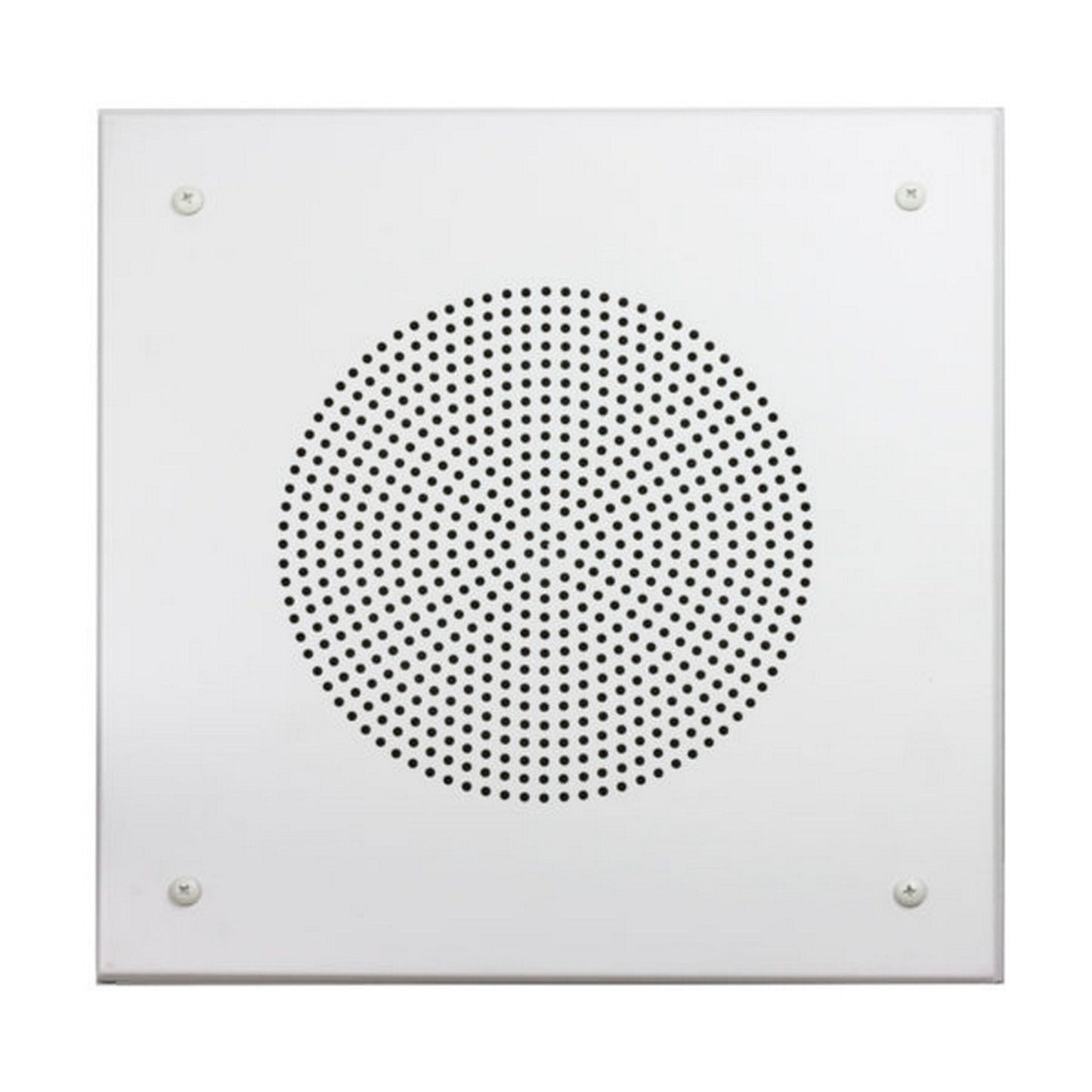

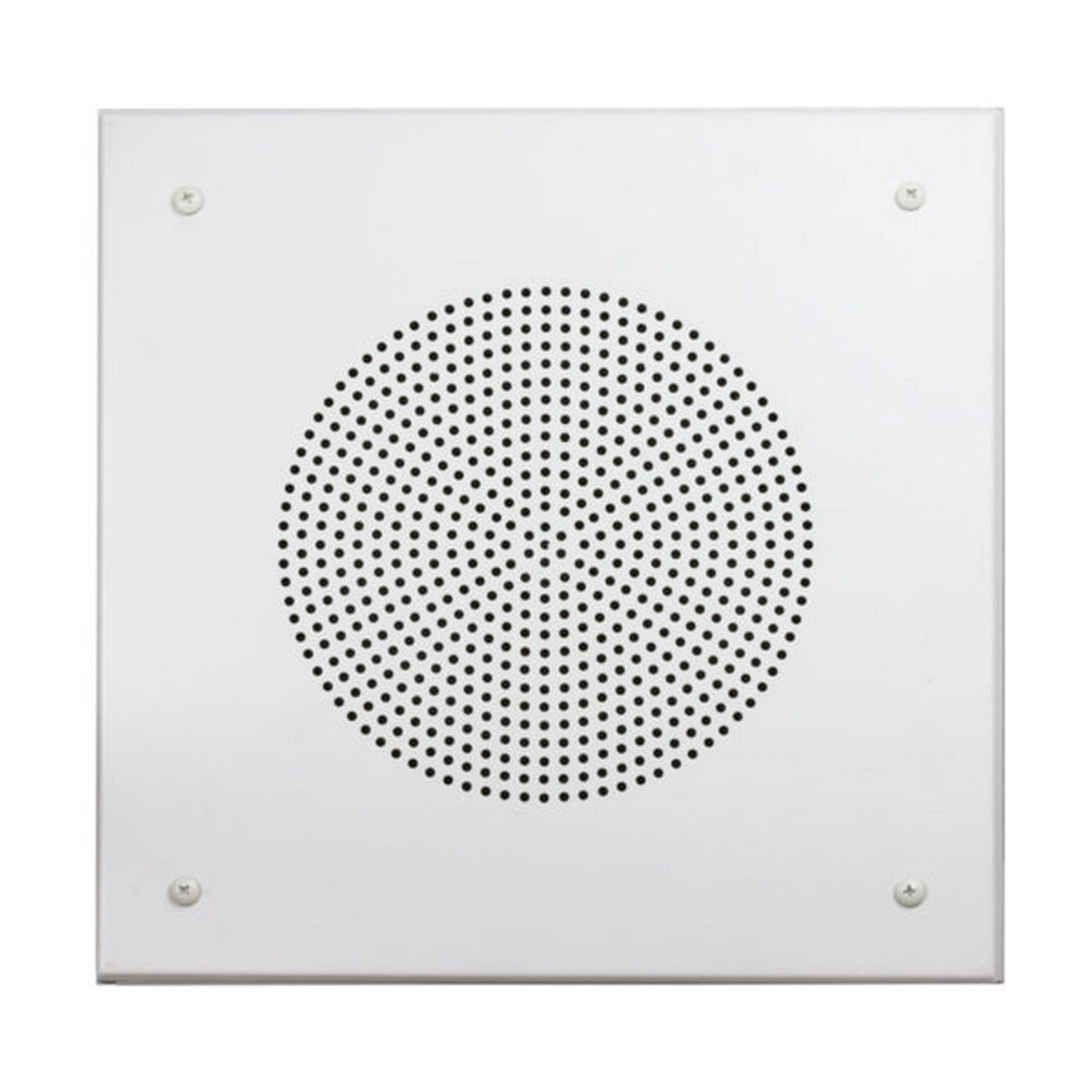

Grille
Steel with beveled edge and circular hole pattern. White.
Mounting Aids
Universal mounting hole pattern. Top/bottom knockouts for 500 Series wiremold.
System
Frequency Response 122Hz-7.4kHz (-6dB) and 65Hz-20kHz (-12dB). Average Sensitivity 95.1dB (1W/1M). Dispersion 110 degrees conical.
CERTIFICATION & COMPLIANCE
Certified U.S. steel (grille, enclosure)
Made in Missouri, U.S.A.
