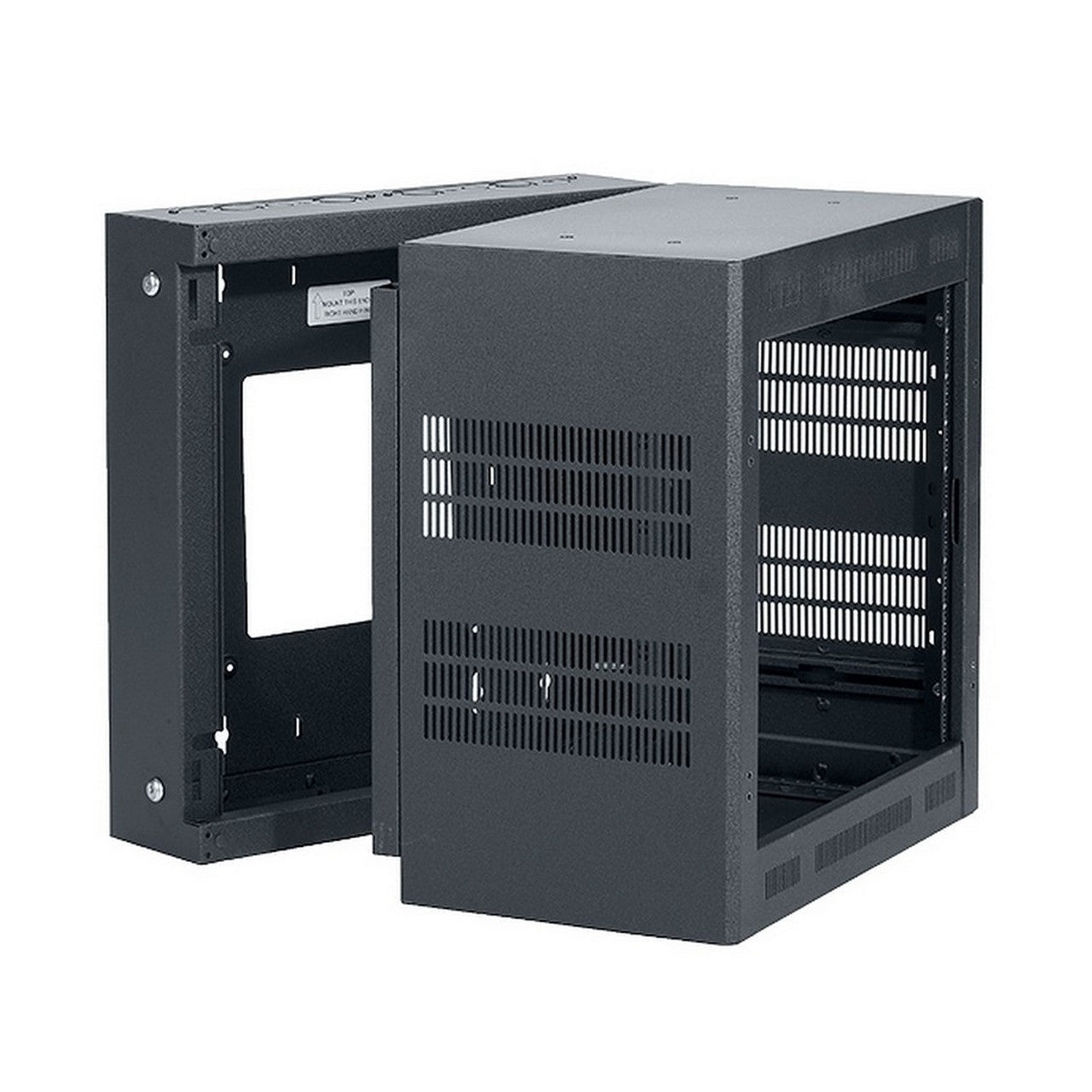

Lowell LWR-1019 10U Wall Rack(Lowell Lwr 1019 10u Wall Rack)

Lowell LWR-1019 10U Wall Rack

Heavy duty sectional wall rack features a front section that swings open to access wires and equipment.

Key Features

• Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, removable knockout panels on top/bottom, and two keyed side locks.
• Front Mounting Section: Fully gusseted corners, triple formed wrap design mounts to backbox from inside with two heavy duty spring-loaded L-pins (self seating, positive locking).
• Welded sides with vents
• Beveled front corners
• Knockouts for wireless antennas
• One pair adjustable mounting rails tapped 10-32, printed RU scale
• Integral top/bottom rails on E.I.A. spacing for mounting or lacing
• Black wrinkle powder epoxy finish
• Load capacity 150 lbs.
• Pilot Point screws with captive washers

Technical Specifications

Rack Space
10U
Rack Height
23.625 in.
Rack Width
23.06 in.
Rack Depth
19.05 in.
Useable Depth
16.00 in.
