Lowell RCCD-4636 Remote Cabinet With Deep-Door 4U+6U X 36 Inch Height(Lowell Rccd 4636 Remote Cabinet With Deep Door 4u6u X 36 Inch Height)

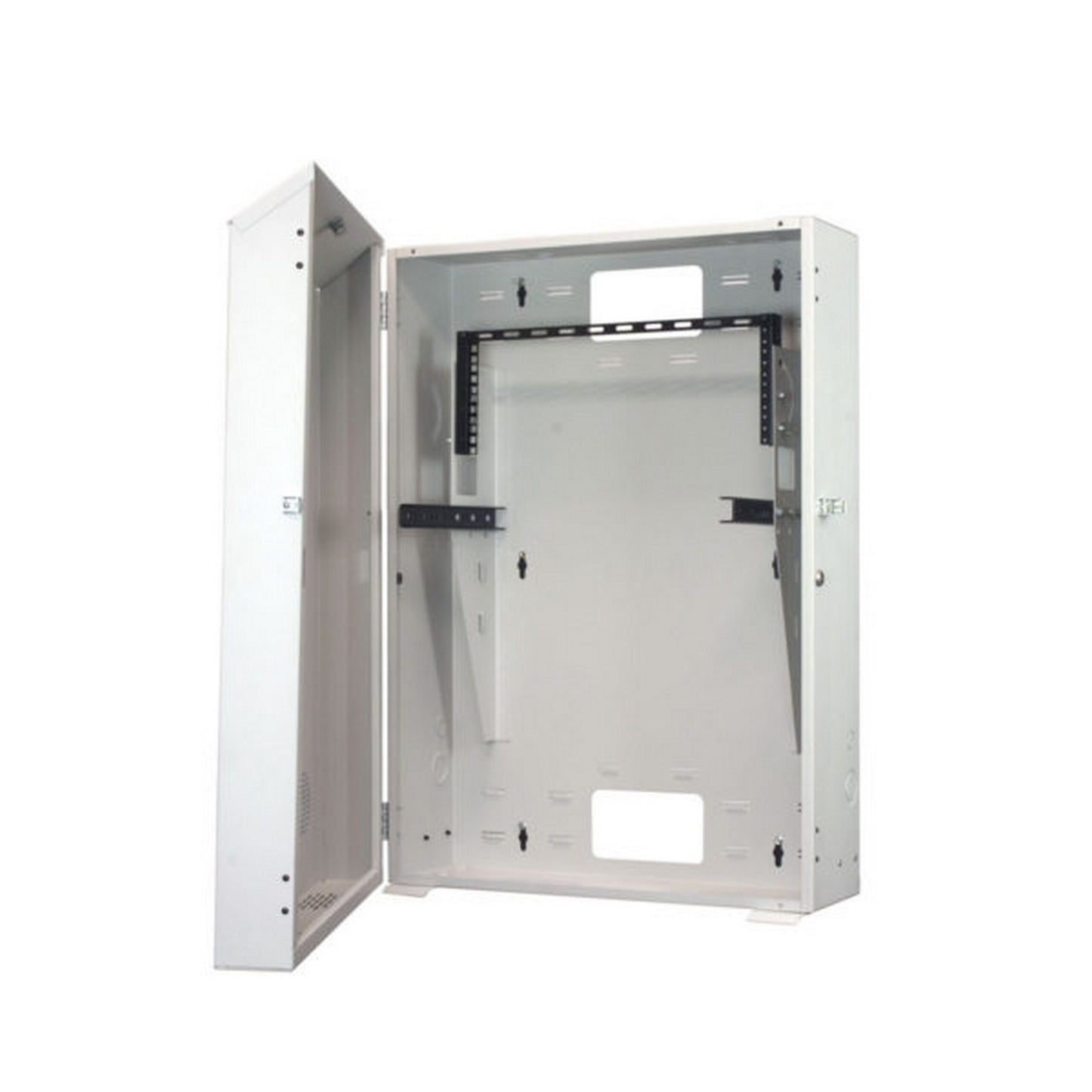

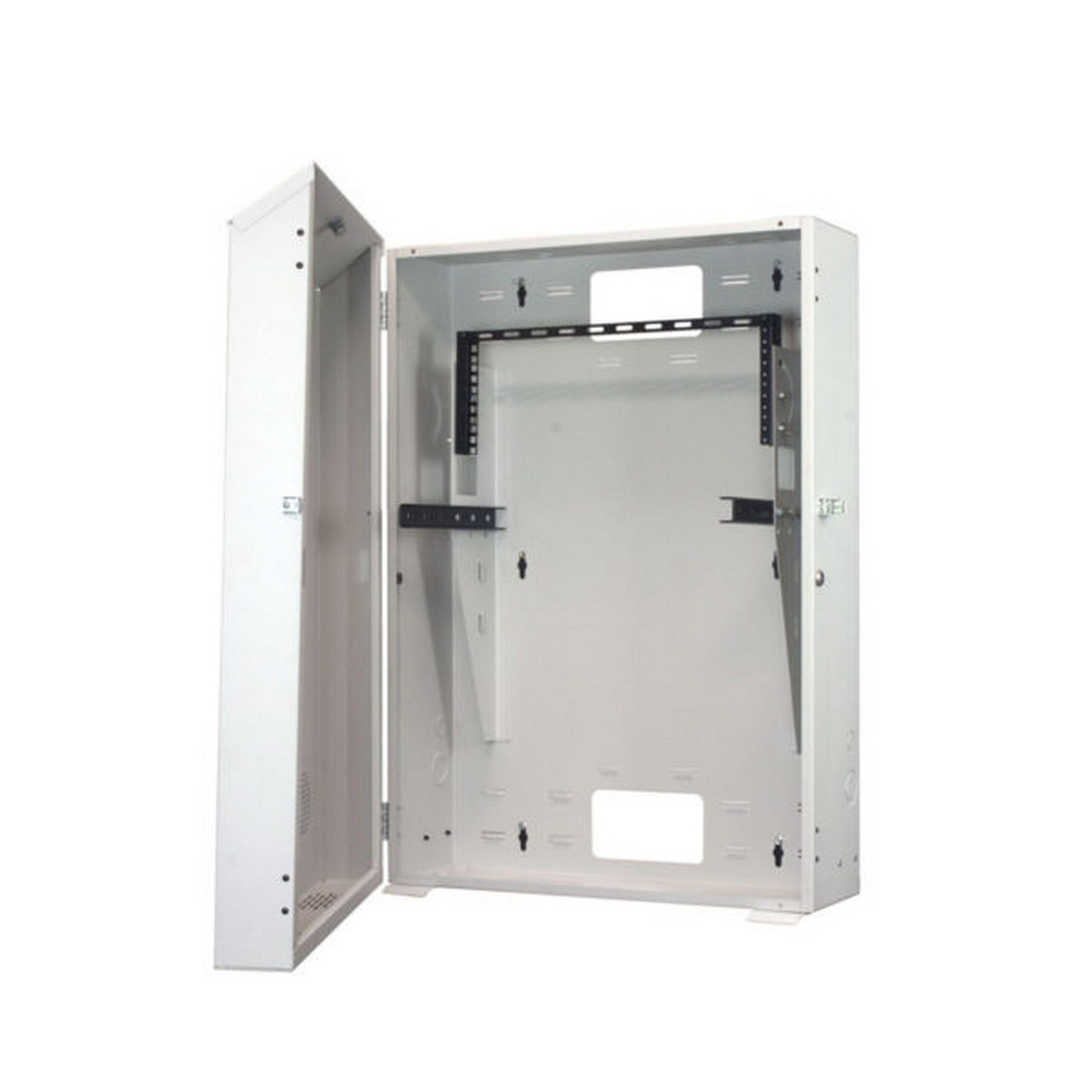

Lowell RCCD-4636 Remote Cabinet with Deep-Door 4U+6U x 36 Inch Height

Wall-mount cabinet maximizes rack space with dual bays - 4U upper bay with pivoting rails, 6U lower bay with adjustable rails. Upper bay can be reached without opening main compartment.

Key Features

• 16-gauge steel construction with rear cutouts to fit over wall obstructions and aid cable management.
• 11-gauge rails in the 4U top section accommodate (horizontally-mounted) panel, such as a shallow patch panel. Rails, tapped 10-32, pivot down for access.
• 11-gauge rails in the 6U bottom section vertically-mount 19” equipment. Rails, tapped 10-32, can be adjusted (vertically) to accommodate equipment up to 30.2”D.
• Deep door features beveled edges, vents, and sloped top with hinge for quick access to top section without opening main compartment. Key lock.
• Knockouts in top, base, side
• Multiple bridge lances
• Vents in base accommodate (optional) single fan kits
• Includes electrical box in base
• Side key lock
• Network Grey powder epoxy finish
• Load Capacity: 150 lbs.

Technical Specifications

UPPER BAY Rack Space (horizontal-mount)
4U x 4.97"D usable
LOWER BAY Rack Space (vertical-mount)
6U x 30.2"D usable
OVERALL Measurements
25.5”W x 36”H x 11.187”D
COMPLIANCE & CERTIFICATION
EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.
