Neutrik NAHDMI-W HDMI 2.0 Feedthrough Adapter, Nickel(Neutrik Nahdmi W Hdmi 2 0 Feedthrough Adapter Nickel)

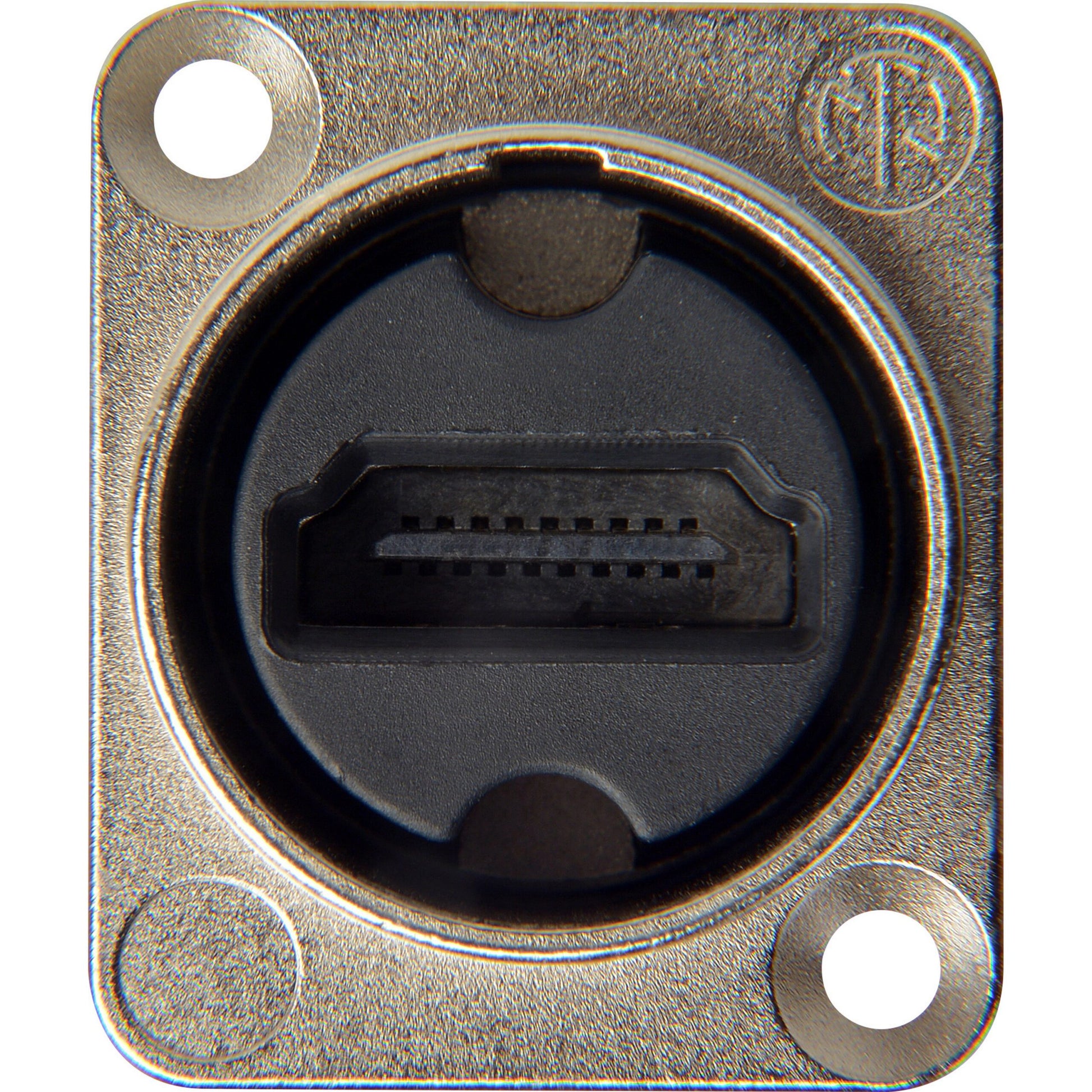

Neutrik NAHDMI-W HDMI 2.0 Feedthrough Adapter, Nickel

Neutrik NAHDMI-W HDMI 2.0 feedthrough adapter, black D-shape housing.

Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

Key Features

• To transmit any digital TV and PC video format including high-definition video (HDTV)
• HDMI 2.0 feed through adapter with 19-pole HDMI receptacle at both ends
• Dust and water resistant acc. to IP65 safety standard in combination with NKHDMI-*
• Optional screen to chassis grounding
• Universally accepted standard D-shape housing

Technical Specifications

Locking Device
Push-Pull
Mounting Direction
Front or rear mounting (max 2 mm panel thickness)
Chassis Shape
D
Lifetime
> 1000 mating cycles
Contact Plating
Au
Contacts
Brass (CuZn39Pb3)
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Black chromium
Flammability
UL 94 V-0
Standard Compliance
HDMI 2.0
Temperature Range
-25 Degrees C to +85 Degrees C
Item Includes
1x Neutrik NAHDMI-W HDMI 2.0 Feedthrough Adaptor - IP65 Rated - D-Shape - Nickel
