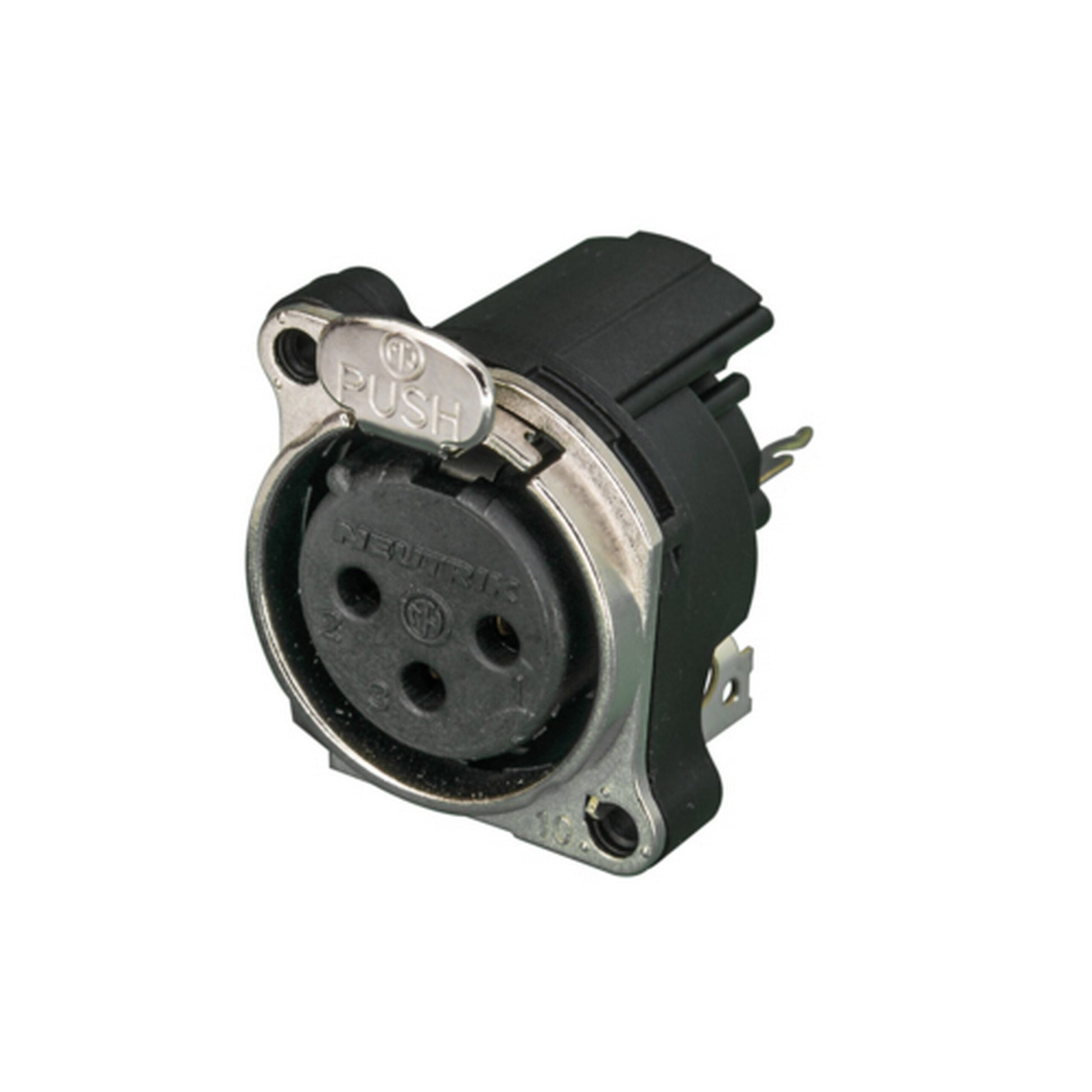

Neutrik NC3FBV1 3-Pin Female XLR Connector, PCB Mount(Neutrik Nc3fbv1 3 Pin Female Xlr Connector Pcb Mount)

Neutrik NC3FBV1 3-Pin Female XLR Connector, PCB Mount

3 poles female XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount. Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Key Features

• Smallest XLR receptacles, highest packing density
• Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
• Tulip type female contact
• Housing flammability UL94V-0

Technical Specifications

Title
NC3FBV1
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 6 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
Pin 1 connected direct to front panel and connector shell, no separate ground contact
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiring
vertical PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
B
Mounting
B-Screw
Material
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Ring
Zinc diecast (ZnAl4Cu1)
Flange
Metal
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 Degrees C to +80 Degrees C
