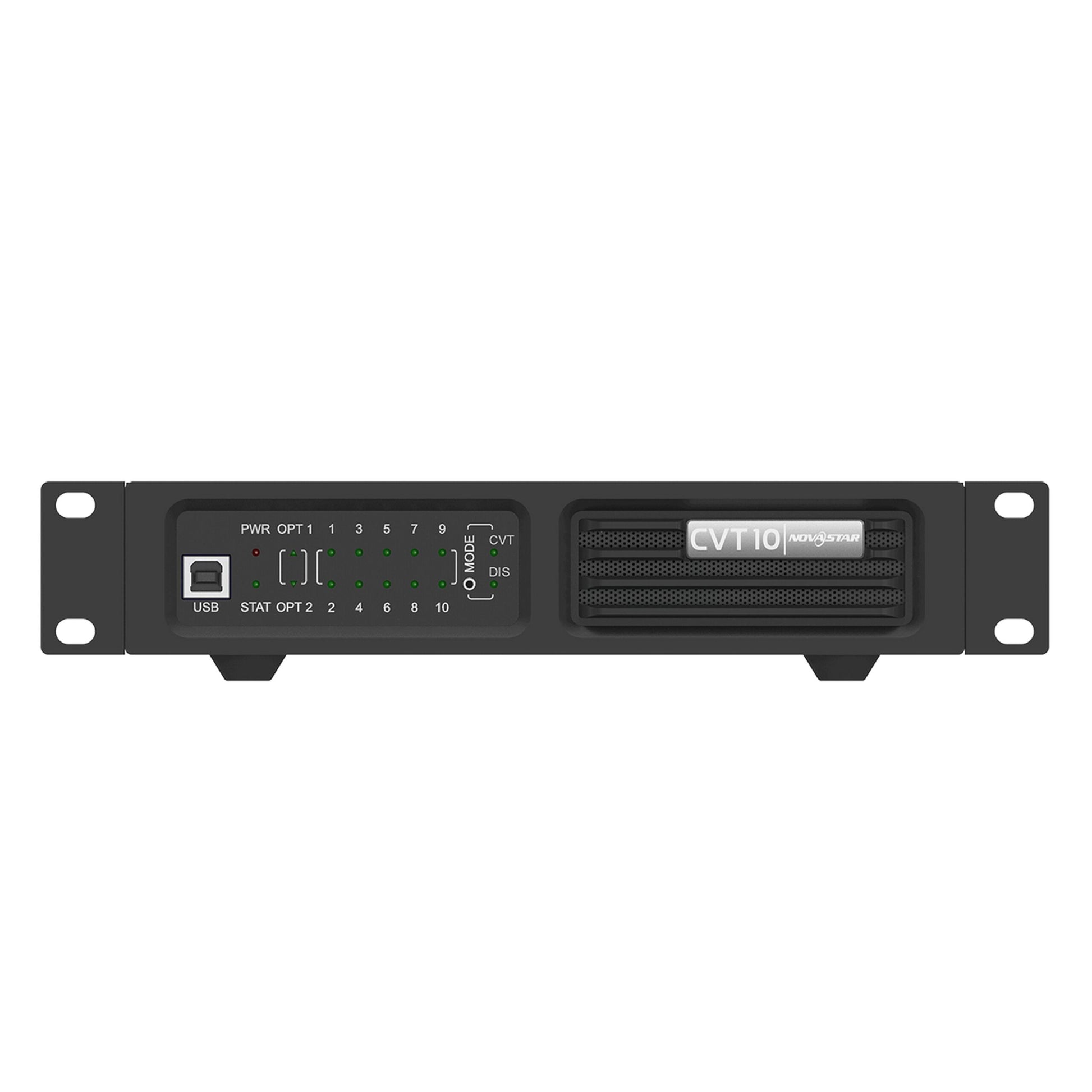

NovaStar CVT10-S Fiber Converter, Singlemode(Novastar Cvt10 S Fiber Converter Singlemode)

NovaStar CVT10-S Fiber Converter, Singlemode

The CVT10-S offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering full-duplex, efficient and stable data transmission that is not easily interfered with, it is ideal for long-distance transmission. Two CVT10 devices can be combined into one assembly that is one rack unit in width.

Key Features

• 2x optical ports with bandwidth of up to 10 Gbit/s
• 10x Gigabit Ethernet ports, bandwidth up to 1 Gbit/s
• Fiber in and Ethernet out: 8x Ethernet ports
• Ethernet in and fiber out: 10x Ethernet ports
• 2 types of power connectors: 3-pin and a PowerCON
• 1x type-B USB control port

Technical Specifications

Hot swappable optical module
Transmission rate
9.95 Gbit/s to 11.3 Gbit/s
Wavelength
1310 nm
Transmission distance
10 km
Weight & Dims
Dimensions
10 x 11.5 x 1.8 in
Weight
4.7 lbs
Power & Current
Input voltage
100-240 VAC, 50/60Hz
Consumption
22W
Thermal
Operating temperature
-20C ~ 70C
Operating humidity
10 ~ 95%
