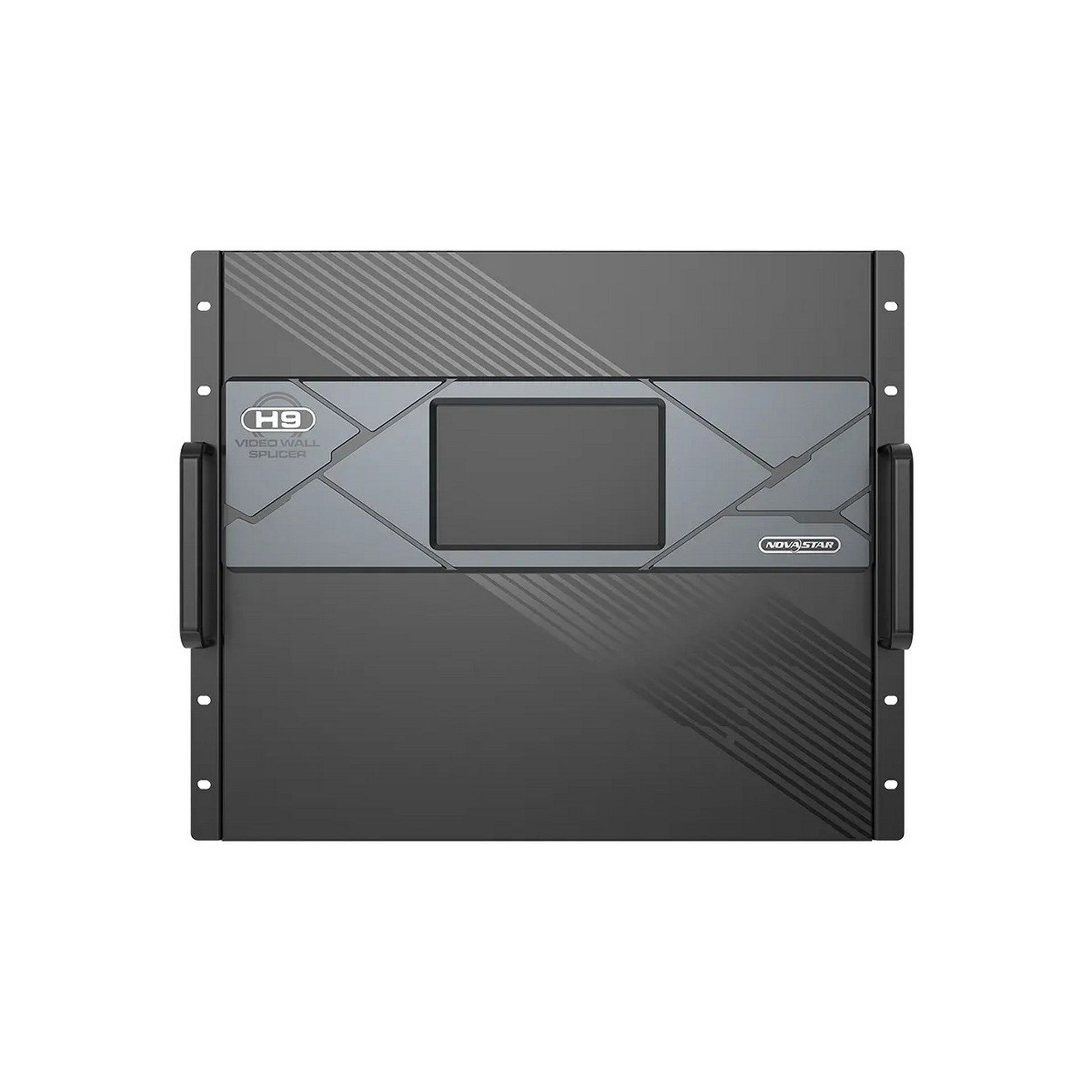

NovaStarH9 Video Wall Splicer: Advanced Display Control for Stunning Visual Experiences

The NovaStarH9 Video Wall Splicer is a cutting-edge solution designed to revolutionize large-scale display management. This powerful device offers seamless integration of multiple video sources, providing unparalleled control and flexibility for creating captivating visual experiences. With its ability to handle up to 4K@60Hz input and output resolutions, the H9 ensures crystal-clear image quality across expansive video walls.

Featuring advanced image processing capabilities, the H9 supports various input connectors including HDMI, DVI, and 3G-SDI, making it compatible with a wide range of video sources. Its robust output capacity allows for up to 16 Ethernet ports, enabling the creation of massive video walls with stunning clarity and synchronization. The H9's intuitive user interface and comprehensive control options make it an ideal choice for applications in control rooms, broadcast studios, digital signage, and high-end retail environments.

Key Features

Support for up to 4K@60Hz input and output resolutions Multiple input connectors: HDMI, DVI, 3G-SDI Up to 16 Ethernet output ports for expansive video walls Advanced image processing and scaling capabilities Intuitive user interface for easy operation Flexible control options via front panel, WebGUI, and NovaLCT software Dual power supplies for enhanced reliability

Technical Specifications

Inputs:

4x HDMI 2.0 (max. 4K@60Hz) 4x DVI (max. 1920x1200@60Hz) 4x 3G-SDI (max. 1920x1080@60Hz)

Outputs:

16x Ethernet ports (max. 4K@60Hz) 1x HDMI 1.3 monitoring (max. 1920x1080@60Hz)

Control:

1x USB (Type-B) 1x Ethernet

Overall Load Capacity:

Max. width: 16384 pixels Max. height: 8640 pixels Max. pixels: 15.7 million pixels

Image Processing:

Input resolution: Up to 4K@60Hz Output resolution: Up to 4K@60Hz Color depth: 8-bit Scaling: Up/down scaling

Power Supply:

AC input: 100-240V~, 50/60Hz Max. power consumption: 100W

Physical Specifications:

Dimensions (W×H×D): 482.6 mm × 139.5 mm × 411.5 mm Net weight: 9.3 kg

Operating Environment:

Temperature: 0°C to 45°C Humidity: 0% RH to 80% RH, non-condensing

Storage Environment:

Temperature: -10°C to +60°C Humidity: 0% RH to 95% RH, non-condensing

Certifications:

CE, FCC, IC, RoHS, UKCA, KC
