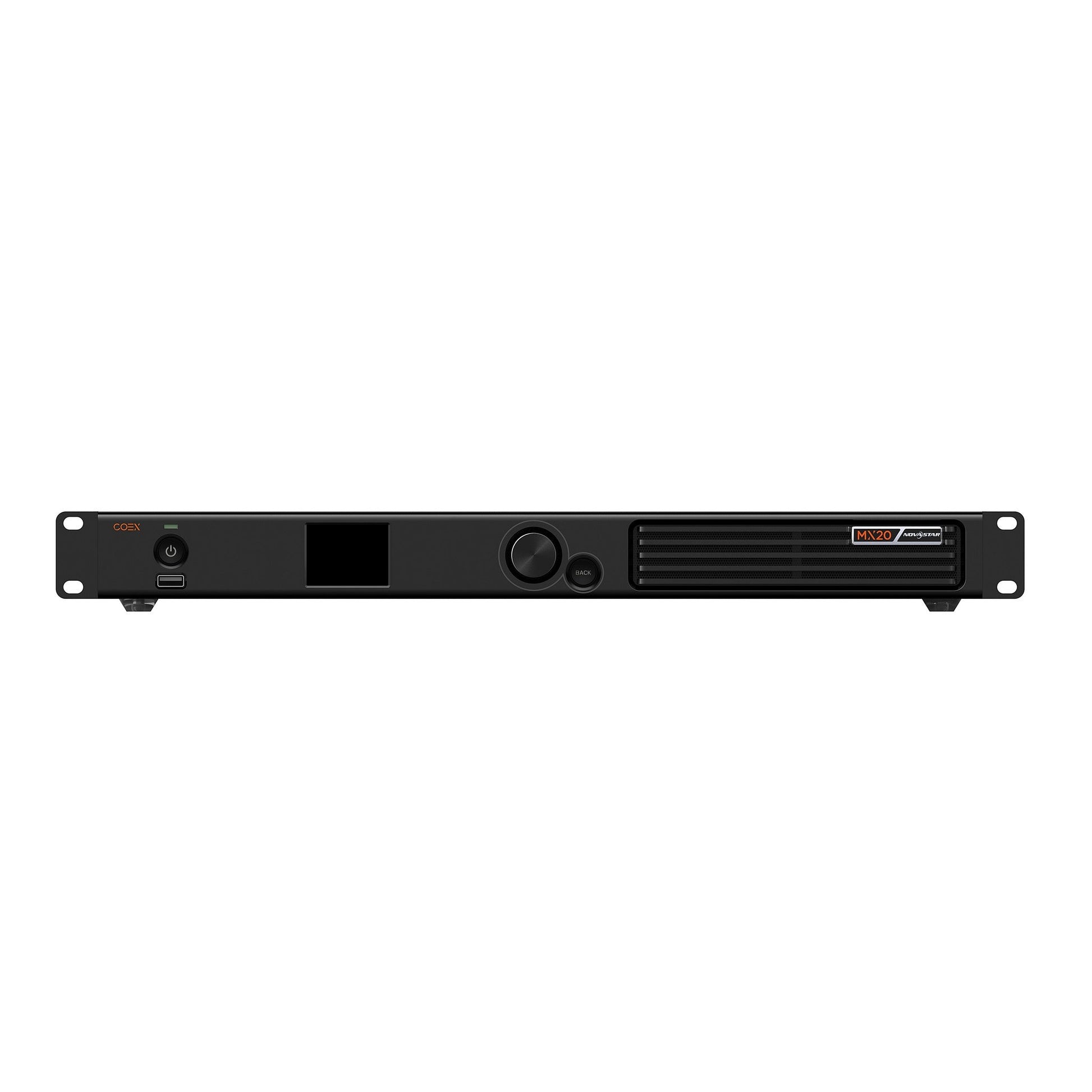

NovaStar MX20 All-in-One LED Display Controller - Powerful Performance & Flexibility

The NovaStar MX20 is a versatile and powerful all-in-one LED display controller, designed to streamline workflows and deliver exceptional performance in various applications. This innovative controller integrates video processing and control functions into a single, compact unit, eliminating the need for separate devices. It boasts a comprehensive selection of input and output options, ensuring seamless integration into diverse display setups. The MX20 is compatible with HDMI 1.3, 3G-SDI for high-definition video, and Gigabit Ethernet for network connectivity. Additionally, it features dual 10G optical ports for high-bandwidth transmission, offering a future-proof solution for demanding applications.

The MX20 is designed for user-friendly operation and control. It integrates seamlessly with the NovaStar VMP (Vision Management Platform) software, providing a comprehensive interface for managing LED displays. VMP software empowers users with features like screen configuration, content scheduling, and real-time monitoring, ensuring optimal performance and control over your display systems.

Key Features

All-in-one design: Integrates video processing and control in a single unit Versatile connectivity: Supports HDMI 1.3, 3G-SDI, Gigabit Ethernet, and 10G optical ports High-resolution support: Up to 1920x1080 @ 60Hz for stunning visuals Advanced video processing: Image scaling, low latency, and frame rate synchronization Seamless control: Integrates with NovaStar VMP software for comprehensive management HDCP 1.4 compliance: Ensures secure content transmission Robust construction: Reliable performance for demanding applications

Technical Specifications

Input

2x HDMI 1.3 (with loop output) 1x 3G-SDI (with loop output) Supports 10-bit and 8-bit video sources

Output

6x Gigabit Ethernet ports (maximum load of 3.9 million pixels) 2x 10G optical ports (1 primary, 1 backup)

Control

1x Genlock signal input (with loop through) 2x Ethernet control ports

Other Specifications

Suppoted File Systems: NTFS, FAT32 Power Supply: DC 12V
