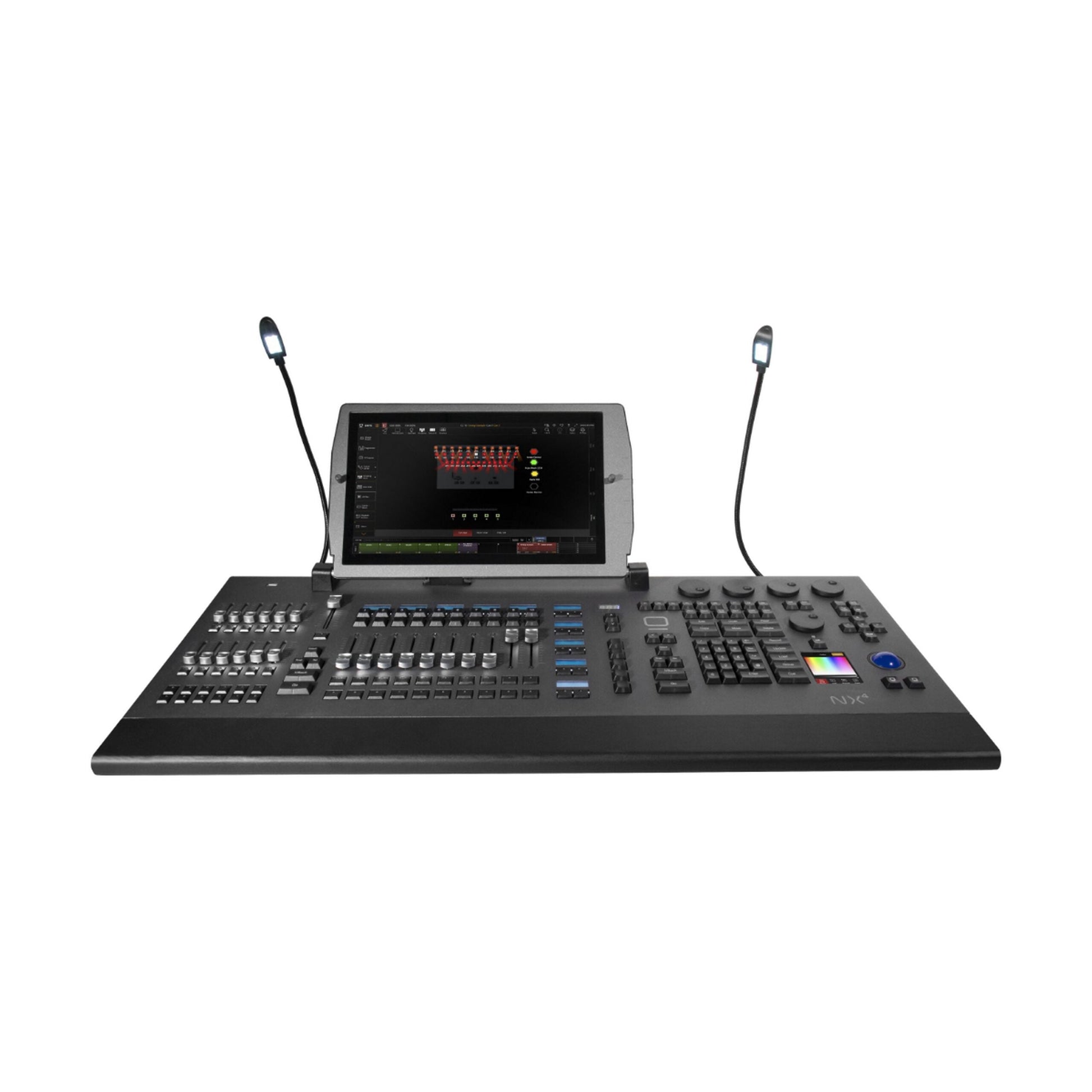

Obsidian Control NX4 64 Universe 1080p Touch Screen Control Surface(Obsidian Control Nx4 64 Universe 1080p Touch Screen Control Surface)

Obsidian Control NX4 64 Universe 1080p Touch Screen Control Surface

The NX 4 is a comprehensive feature packed control surface. With a well-arranged combination of motorized and manual faders as well as an array of playback summary the NX4 offers 44 total playbacks in a compact yet extremely powerful package. As a member of the innovative ONYX platform from Obsidian Control Systems the NX 4 is feature rich and never restricted in its capabilities. NX 4 includes a high brightness Full HD multi touch screen, 8 assignable parameter encoders, dedicated Intensity encoder, an assistive mini touch screen, full keypad and command section and a dedicated grand master.

Key Features

• Adjustable 15.6” Full HD multi touch screen, 2x external 4K Touch Displays
• 44 playbacks (10 Motorized, 12 Sub, 22 Playback Executors)
• 9 Encoders, Keypad, Trackball, 12 Function keys, assistive 3.5” touchscreen
• 64 Universe integrated processing, 4 DMX ports onboard
• Network, DMX, Timecode and Midi Connectivity

Technical Specifications

Physical Dimensions
Length
431 mm (16.9 in.)
Width
928 mm (36.5 in.)
Height
149mm (5.8 in.)
Weight
16.4 kg (36.1 lbs.)
Electrical Specifications
100-240 V nominal, 50/60 Hz, 140W
