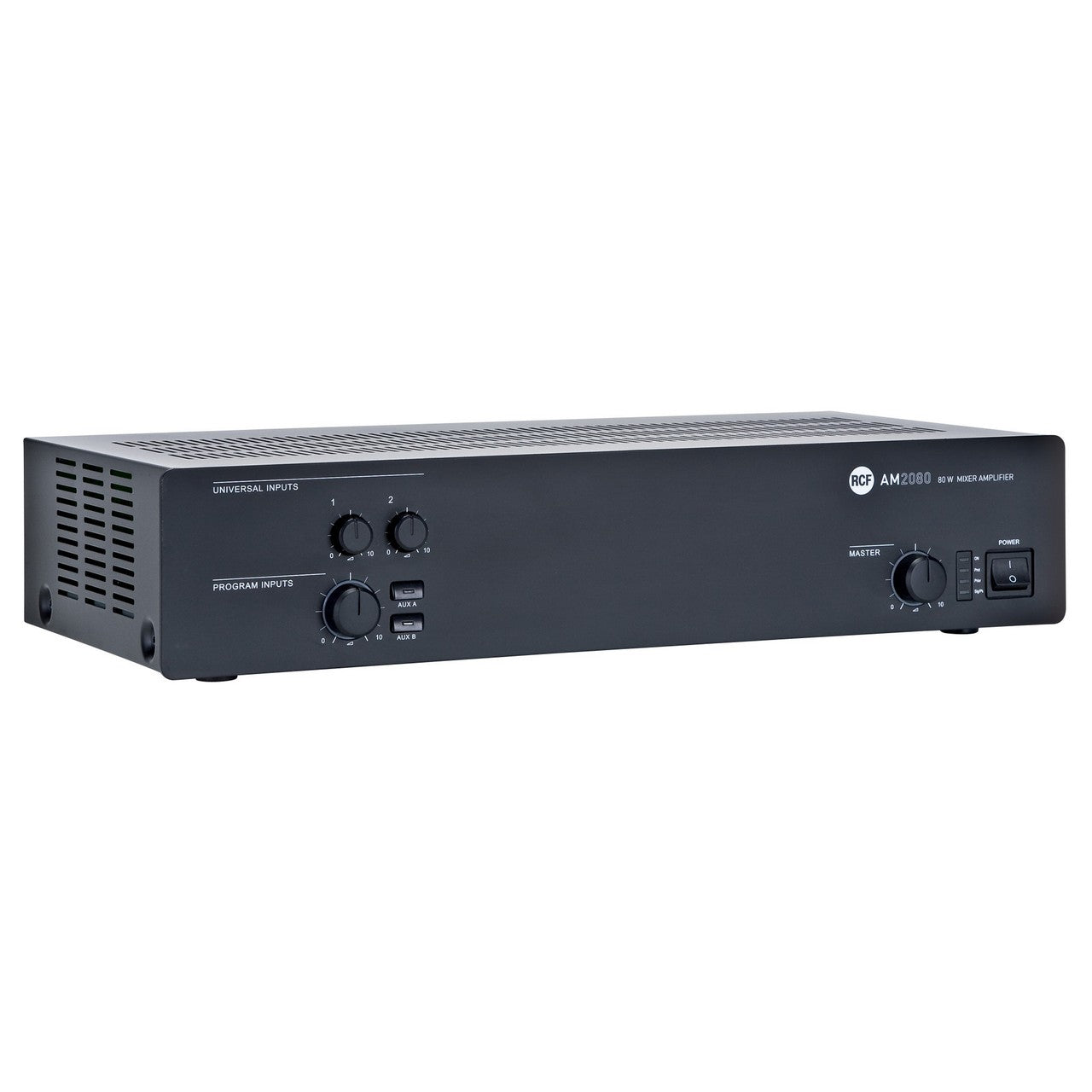

RCF AM2080 80W Digital Mixer Amplifier

AM 2080 is a mixer-amplifiers with 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power is a 80 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 - 70 V constant voltage line.

Key Features

• Full digital technology Mixer Amplifier 80 W RMS
• 100 V - 70 V and 4 Ohm outputs
• 2 universal inputs with phantom facility on screw terminal connections
• XLR connector on input 1
• RJ45 connectors on input 2 for connection to BM3001 microphone
• Configurable Priority settings, VOX facility on input 1
• Selectable aux inputs with two keys on the front panel for music source
• Aux inputs with volume and tone controls
• Music On Hold and PRE outputs
• Digital Chime and Siren built-in generator

Technical Specifications

Amplifier specifications
DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER
<0.3 %
FREQUENCY RESPONSE (-3DB)
50 Hz - 16 kHz
NUMBER OF CHANNELS
1
POWER OUTPUT (@ 100 V)
80 W RMS
POWER OUTPUT PER CHANNEL (@ 4 OHM)
80 W RMS
SIGNAL/NOISE RATE (”A” WEIGHTED)
>80 dB

Controls
CHIME TONE
Yes
CONFIGURATION
DIP switch, Front panel
MUSIC ON HOLD
Yes
PRIORITY
Yes

Processing
HIGH-PASS FILTER
150 Hz
TONE CONTROLS
Yes

Input section
BALANCED
5
LINE CONNECTORS
RCA
LINE INPUTS
2
MIC+LINE CONNECTORS
Euroblock, XLR
MIC+LINE INPUTS
2
MIC+LINE PHANTOM
30 V DC
VOX (MIC+LINE)
Yes
MONO
4
PAGING COMMAND
Contact
PAGING CONNECTORS
RJ45
PAGING INPUTS
1
STEREO
2
TOTAL NUMBER OF INPUTS
5
UNBALANCED
1

Output section
SIGNAL OUTPUT CONNECTORS
RCA
POWER OUTPUT CONNECTORS
Euroblock
SIGNAL OUTPUT NUMBER
2

Physical specifications
CABINET/CASE MATERIAL
Metal
COLOR
Black
RACK MOUNTING
19", 2U

Power requirement
OPERATING VOLTAGE
220-240/115 V~ 50/60Hz
POWER CONSUMPTION
160 W
VOLTAGE SELECTION
Internal

Protections
COOLING
Convection
DC DELAY
Yes
FUSES
Yes
SHORT CIRCUIT
Yes
THERMAL
Yes

Size
DEPTH
230 mm / 9.06 inches
HEIGHT
88 mm / 3.46 inches
WEIGHT
3.77 kg / 8.31 lbs
WIDTH
442 mm / 17.4 inches

Standard compliance
CE MARKING
Yes
