RDL D-CIJ3D Consumer Input Jacks, Stereo(Rdl D Cij3d Consumer Input Jacks Stereo)

RDL D-CIJ3D Consumer Input Jacks, Stereo

The D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

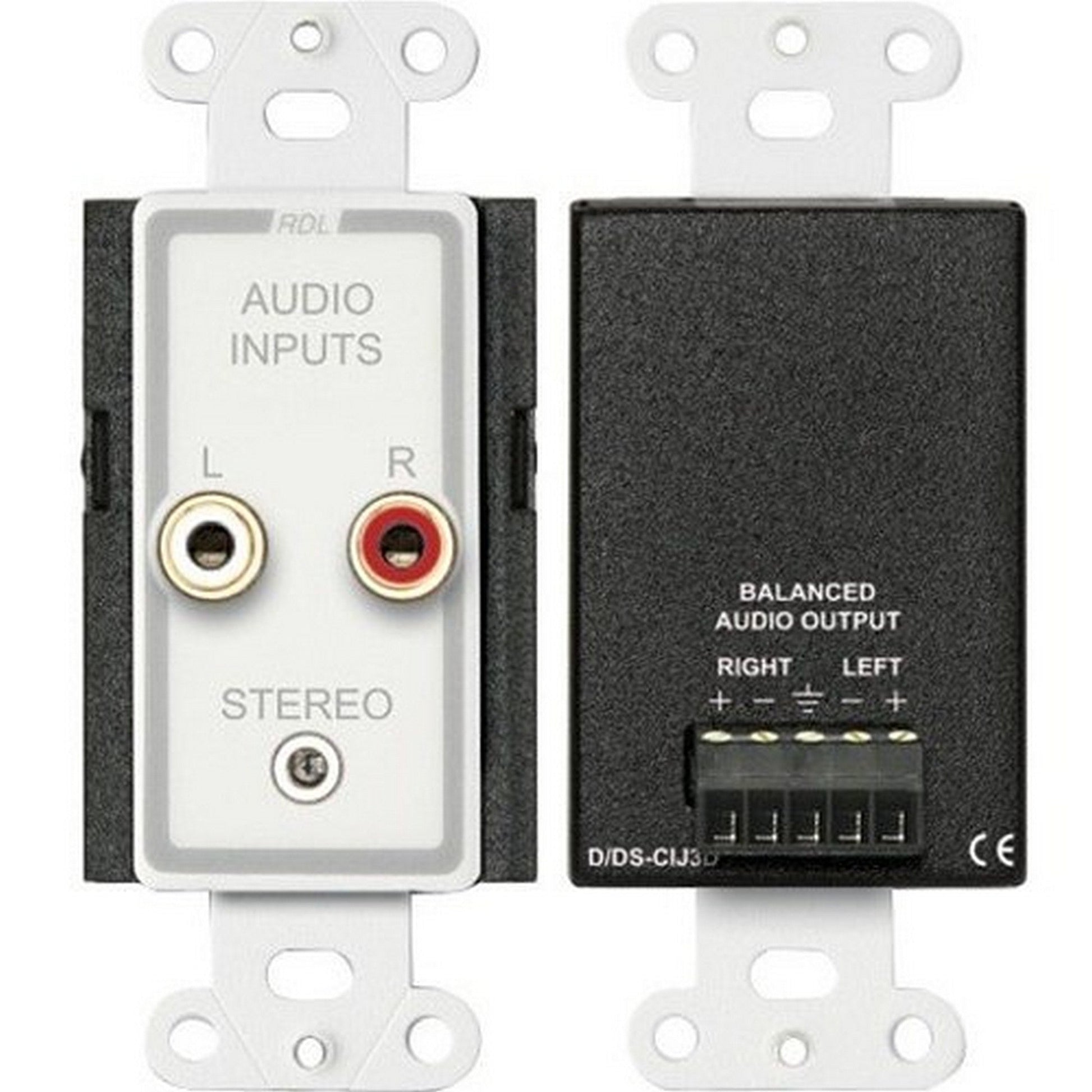

The D/S-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 k Ohms or higher input impedance line-level module or equipment inputs.

Key Features

• Stereo Inputs to Stereo Outputs
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 k? Equipment Inputs
• Output Connections on Detachable Terminal Block

Technical Specifications

Interfaces/Ports
Number of RCA Ports
2
Physical Characteristics
Depth
2.2”
Depth (mm)
54.61
Height
4.1”
Height (mm)
104.902
Weight (Approximate)
6.40 oz
Width
1.7”
Width (mm)
43.18
Miscellaneous
Environmental Certification
WEEE
Environmentally Friendly
Yes
TAA Compliant
No
