RDL STM-1 Microphone Preamplifier(Rdl Stm 1 Microphone Preamplifier)

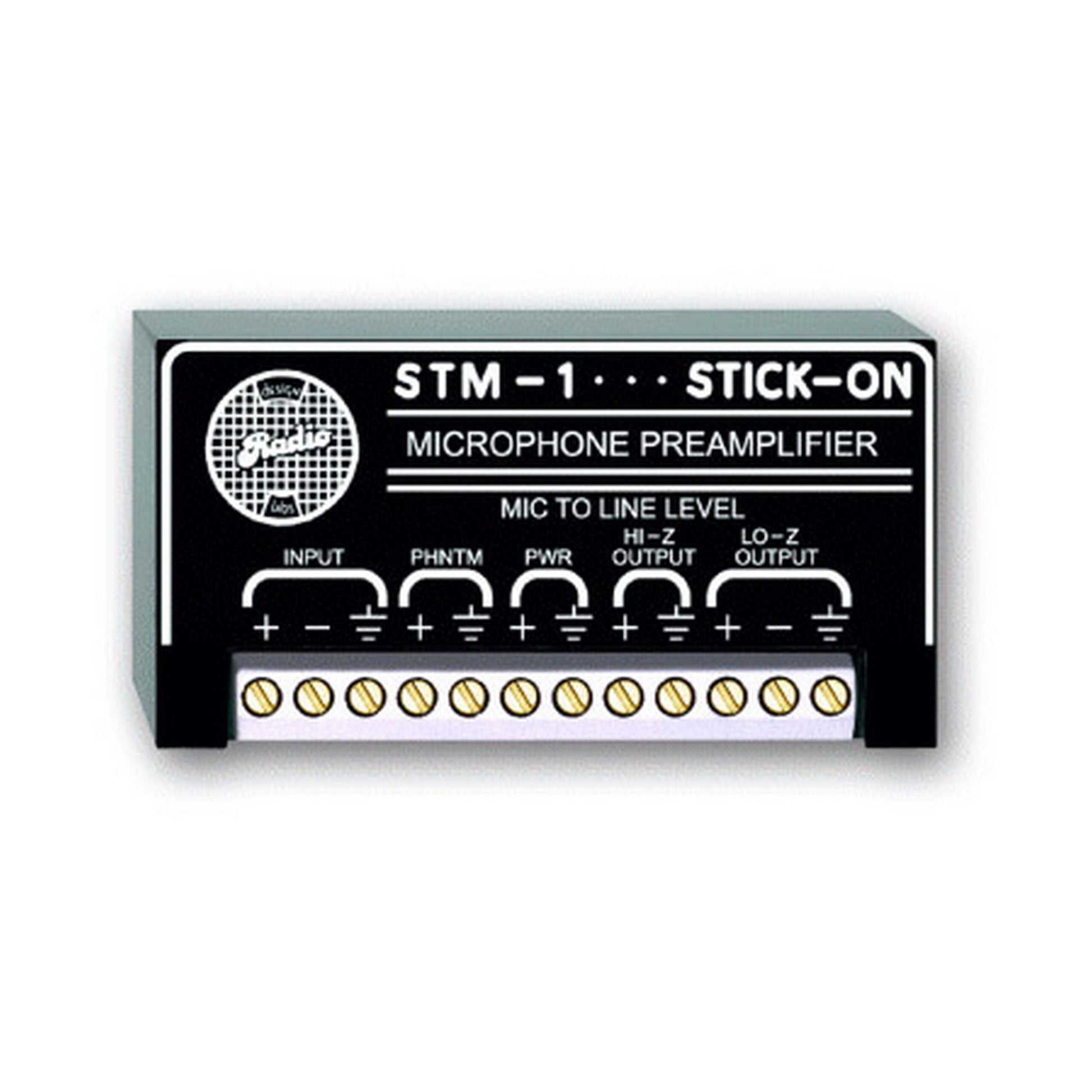

RDL STM-1 Microphone Preamplifier

The RDL STM-1 is a low-cost quality microphone preamplifier designed for use in commercial sound and broadcast applications. The compact size makes it ideal where a larger or heavier preamp cannot be used. The high-performance circuit provides a fixed 50 dB gain to bring any mic-level signal up to the line-level range of nearly any line input. The STM-1 supply input is single ended and operates from 24 to 33 Vdc. Operation from 12 Vdc is possible with a 6 dB reduction in headroom. For intercom applications, the input will operate directly from a speaker.

Key Features

• High or Low Impedance Input Mic Preamp
• Fixed 50 dB Gain for Consistency
• Balanced or Unbalanced Output
• Phantom Capability
• RF-Filtered Inputs and Outputs
• Excellent Performance
• STICK-ON Convenience
