Rolls MP13 Mini-Microphone Preamplifier

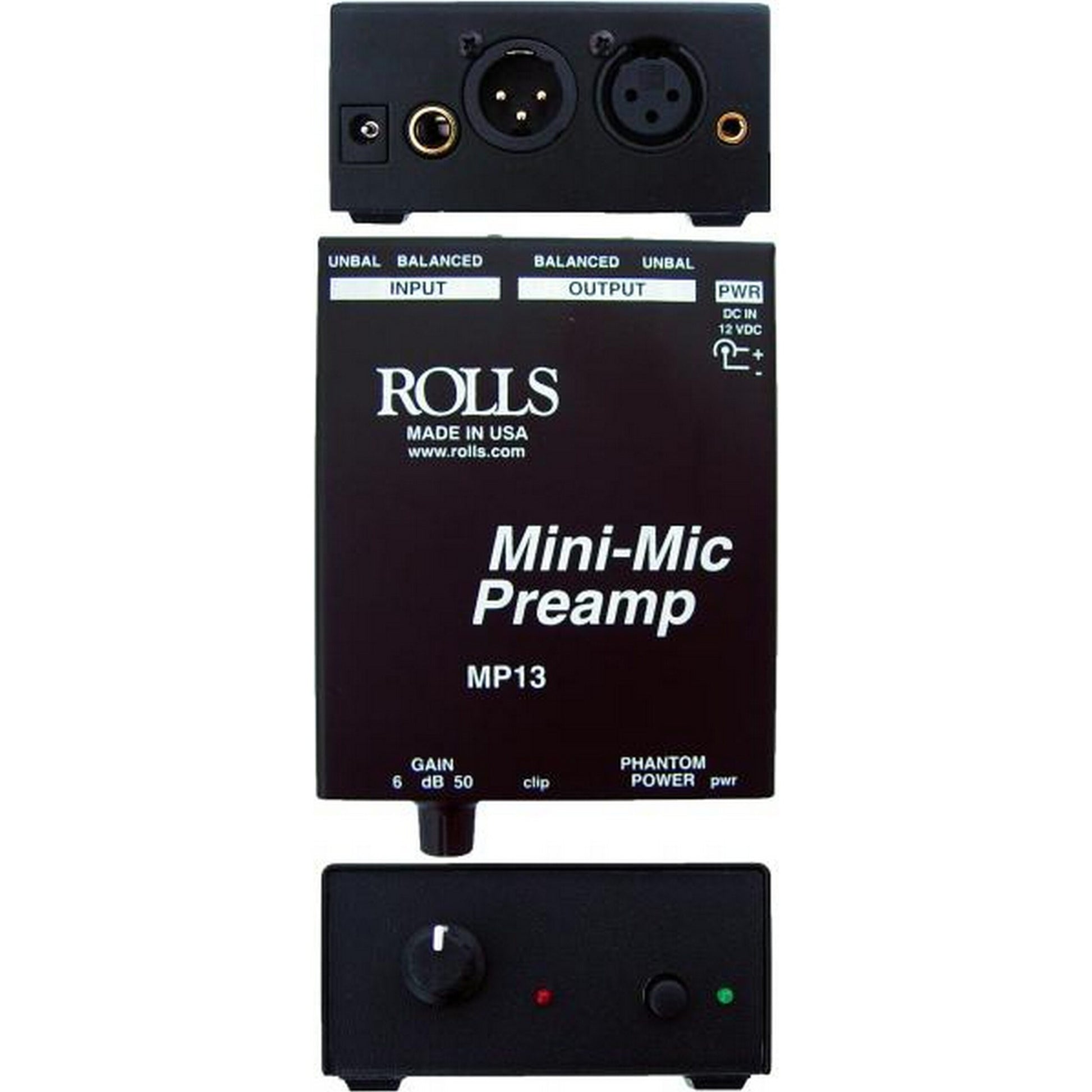

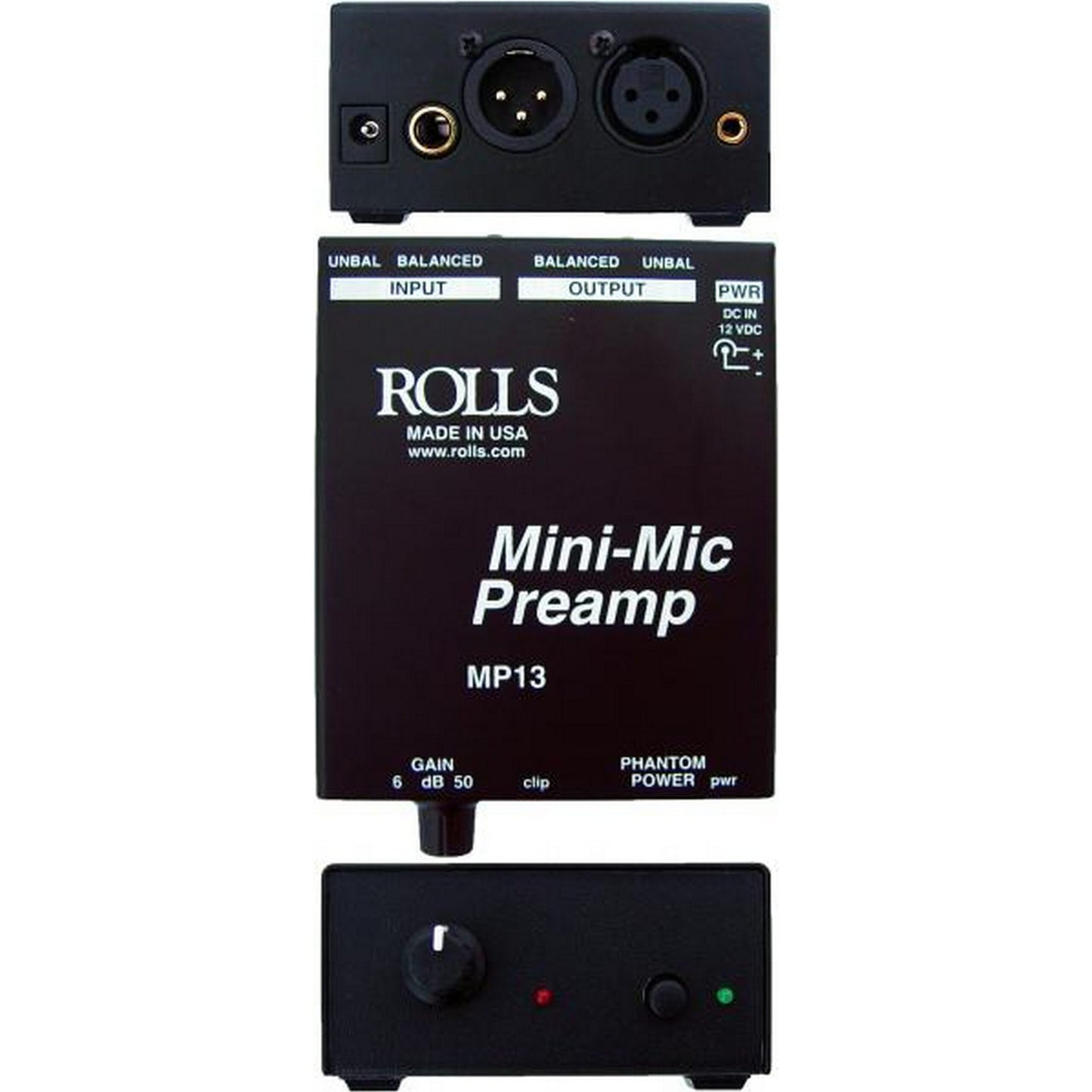

The MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4” Outputs, XLR and 1/8” Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.

Key Features

• Small size
• Works with dynamic, Phantom and Heaset mics
• XLR and 3.5mm inputs
• XLR and 1/4” outs
• Works with 9 to 15 Vdc

Technical Specifications

Input Impedance
10K Ohms balanced/unbalanced
Max Input Level
+4dBV XLR balanced, +10dBV unbalanced
Max Gain
XLR 60dB, 1/4” 54dB
Phase Shift
<10 deg. 20 Hz - 20 kHz
EIN
-108dB max.
THD
<.01%
IMD (SMPTE)
< .01%
CMRR
>80 dB
Phantom Power
+24 Volts, 6 mA
Power
12-15VDC
Size
3.4” X 4.2” X 1.4”
Weight
1 lbs (.45 kg)
