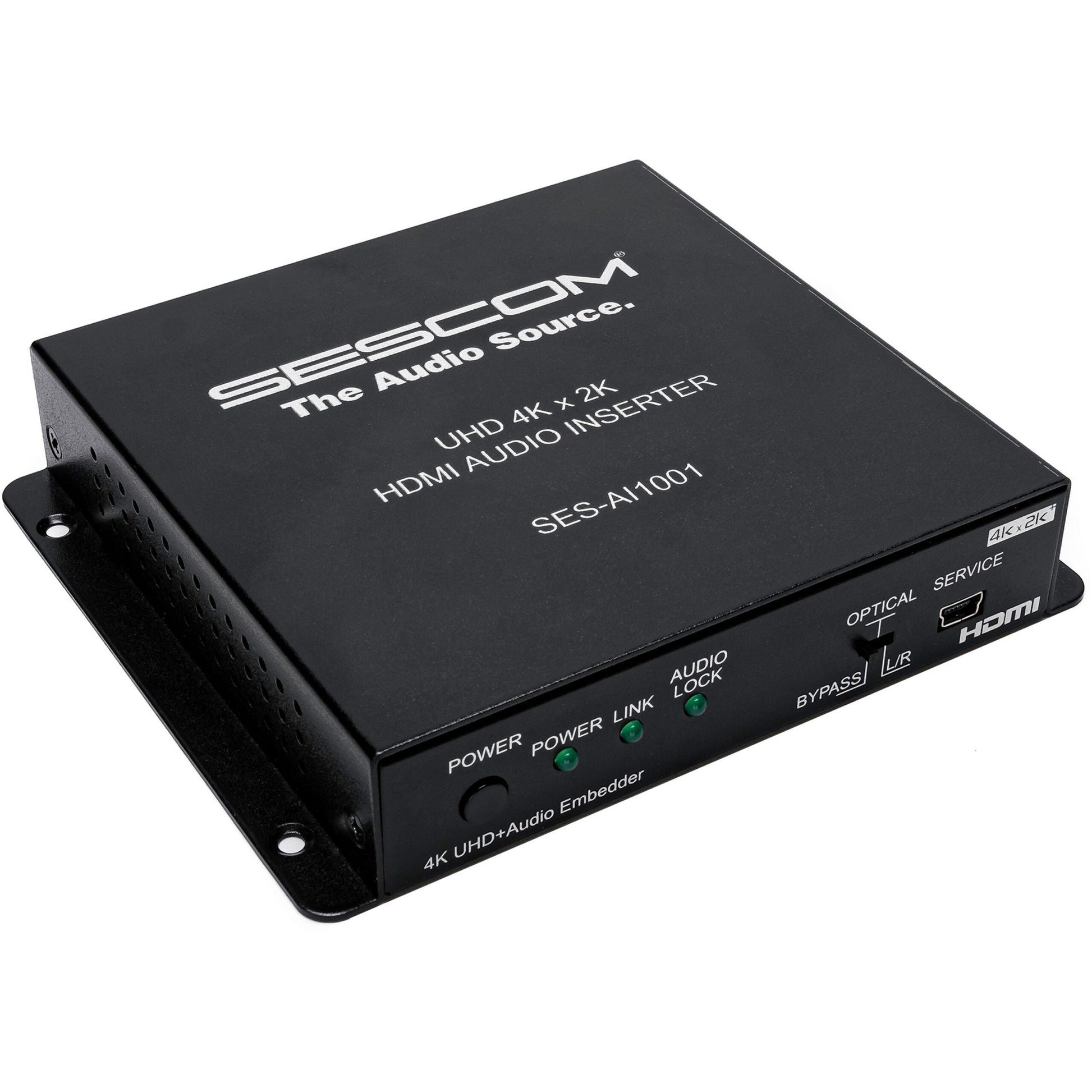

Sescom SES-AI1001 4K UHD HDMI 2.0 Audio Inserter(Sescom Ses Ai1001 4k Uhd Hdmi 2 0 Audio Inserter)

Sescom SES-AI1001 4K UHD HDMI 2.0 Audio Inserter

The SES-AI1001 is designed to insert an external audio signal into an HDMI or DVI source to generate a new desired HDMI audio output. Selected by a simple switch, both stereo LPCM 2.0 and multi-channel Bitstream audio is supported for insertion.

The SES-AI1001's HDMI input and output supports 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit). The passthrough of HD and standard Bitstream formats as well as LPCM 7.1 with audio sampling rates up to 192kHz are all supported with this product.

Key Features

• HDMI Input and Output with 18Gbps (600MHz) 4K UHD Support
• Supports HD Resolutions up to 3840x2160@60 Hz (4:4:4, 8-bit) & 4096x2160@60 Hz (4:4:4, 8-bit)
• Supports 48-bit Deep Color up to 1080p@60Hz
• HDMI 2.0, HDCP 1.4, 2.2 and DVI 1.0 Compliant
• HDMI Audio Sampling Rates: up to 192kHz
• Outputs a 720p60 Color Bar Pattern When No Input is Connected

Technical Specifications

Input Ports
1x HDMI, 1x Optical (S/PDIF) 2x RCA (Stereo)
Output Port
1x HDMI
S/PDIF Audio Sampling Rates
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
HDMI Audio Formats
LPCM 7.1, Bitstream and HD Bitstream Audio
Power Consumption
3.78W
Dimensions (WxHxD)
5.04 x 0.98 x 4.25in / 128 x 25 x 108mm
Weight
12.1 oz /358g
ITEM INCLUDES
5V / 2.6A DC Power Adapter
International Power Adapters
