Tascam BO-16DX/IN Rackmount 16 Channel XLR To D-Sub Input Adapter(Tascam Bo 16dx In Rackmount 16 Channel Xlr To D Sub Input Adapter)

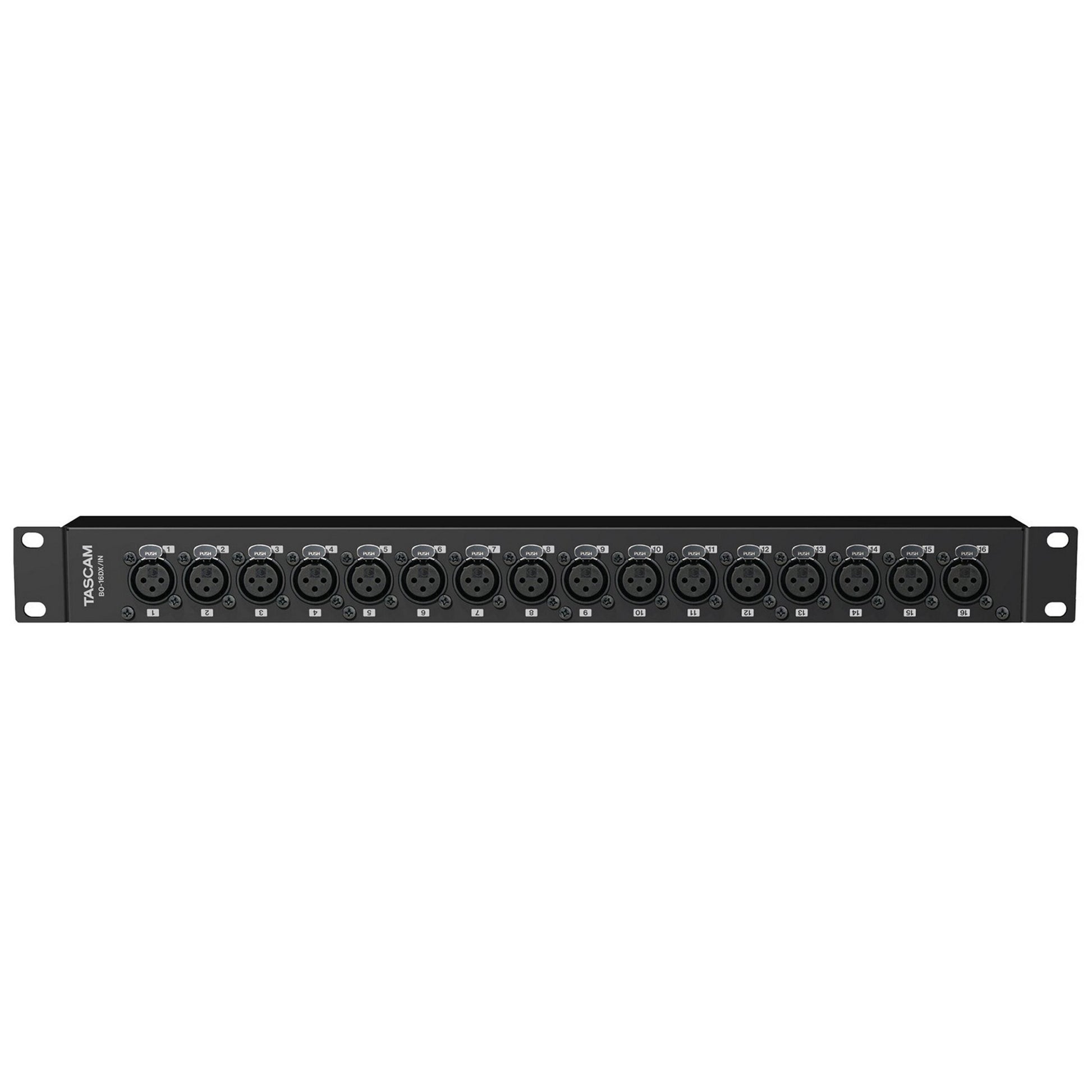

Tascam BO-16DX/IN Rackmount 16 Channel XLR to D-Sub Input Adapter

The Tascam BO-16DX/IN is an expertly designed rackmount audio adapter that brings efficiency and reliability to professional audio installations and live sound applications. Highly versatile, this unit features 16 front-panel XLR Inputs optimized for high-quality sound signal transfer. Internally bridged to dual D-Sub output connectors on the rear panel, this rugged audio adapter offers a seamless, swift interface between stage boxes, front-of-house (FOH) and monitor mixing consoles, and audio-over-IP converters.

Ideal for fast-paced professional environments, the Tascam BO-16DX/IN guarantees a streamlined performance. With a 1U rackmount size and short unit depth, it ensures flexibility in various rack layouts. Whether you're setting up for a large venue concert or a studio session, the Tascam BO-16DX/IN meets the demanding needs of audio professionals, providing a reliable, easy-to-install solution.

Key Features

• 16 XLR input connectors on the front panel
• Dual D-Sub output connectors compliant with AES59-2012 on the rear panel
• Multiple rackmounting options
• Short unit depth allows free layout in the rack
• 1U Rackmount size
• Rackmount screws included

Specifications

• FRONT Connectors: XLR 3-31 x 16 (1: GND, 2: HOT, 3: COLD)
• REAR Connectors: D-sub 25pin female x 2
• Attachment screws: No.4-40 UNC x 4 (inch-type)
• Dimensions (WxHxD): 19.0 inches x 1.7 inches x 2.1 inches
• Weight: 1.99 lbs. / 0.9 kg

Package Contents

• Tascam BO-16DX/IN Rackmount 16 Channel XLR to D-Sub Input Adapter
• Rackmount screws
