Tascam BO-16DX/OUT Rackmount 16 Channel D-Sub To XLR Output Adapter(Tascam Bo 16dx Out Rackmount 16 Channel D Sub To Xlr Output Adapter)

Tascam BO-16DX/OUT Rackmount 16 Channel D-Sub to XLR Output Adapter

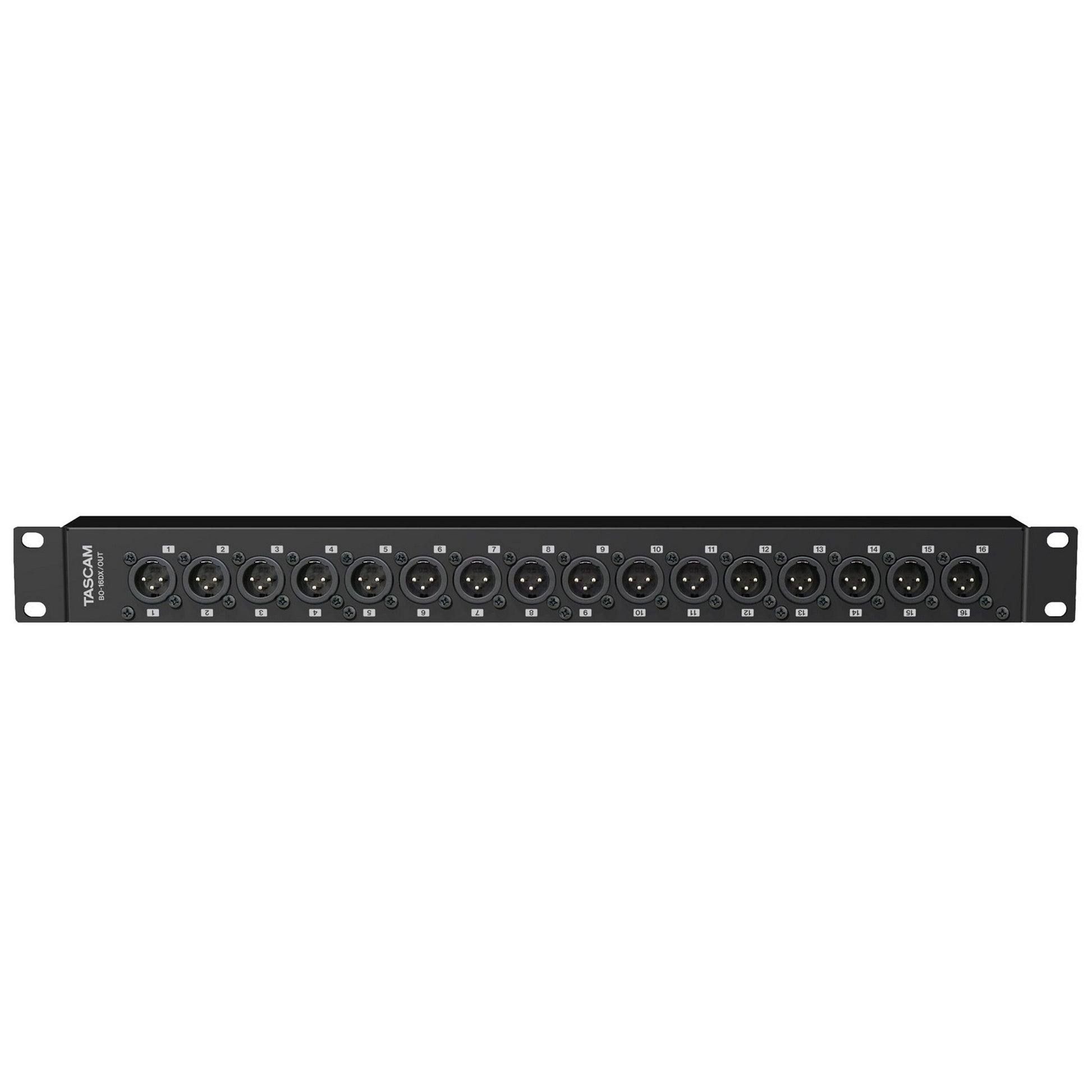

The TASCAM BO-16DX/OUT is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR outputs are internally bridged to dual D-Sub input connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.

Key Features

• 16 XLR output connectors on the front panel
• Dual D-Sub input connectors compliant with AES59-2012 on the rear panel
• Multiple rackmounting options
• Short unit depth allows free layout in the rack
• 1U Rackmount size
• Rackmount screws included

Technical Specifications

FRONT
Connectors
XLR 3-32 x 16 (1: GND, 2: HOT, 3: COLD)
REAR
Connectors
D-sub 25pin female x 2
Attachment screws
No.4-40 UNC x 4 (inch-type)
Dimensions (WxHxD)
19.0" x 1.7" x 2.0"
Weight
1.99 lbs. / 0.9 kg
