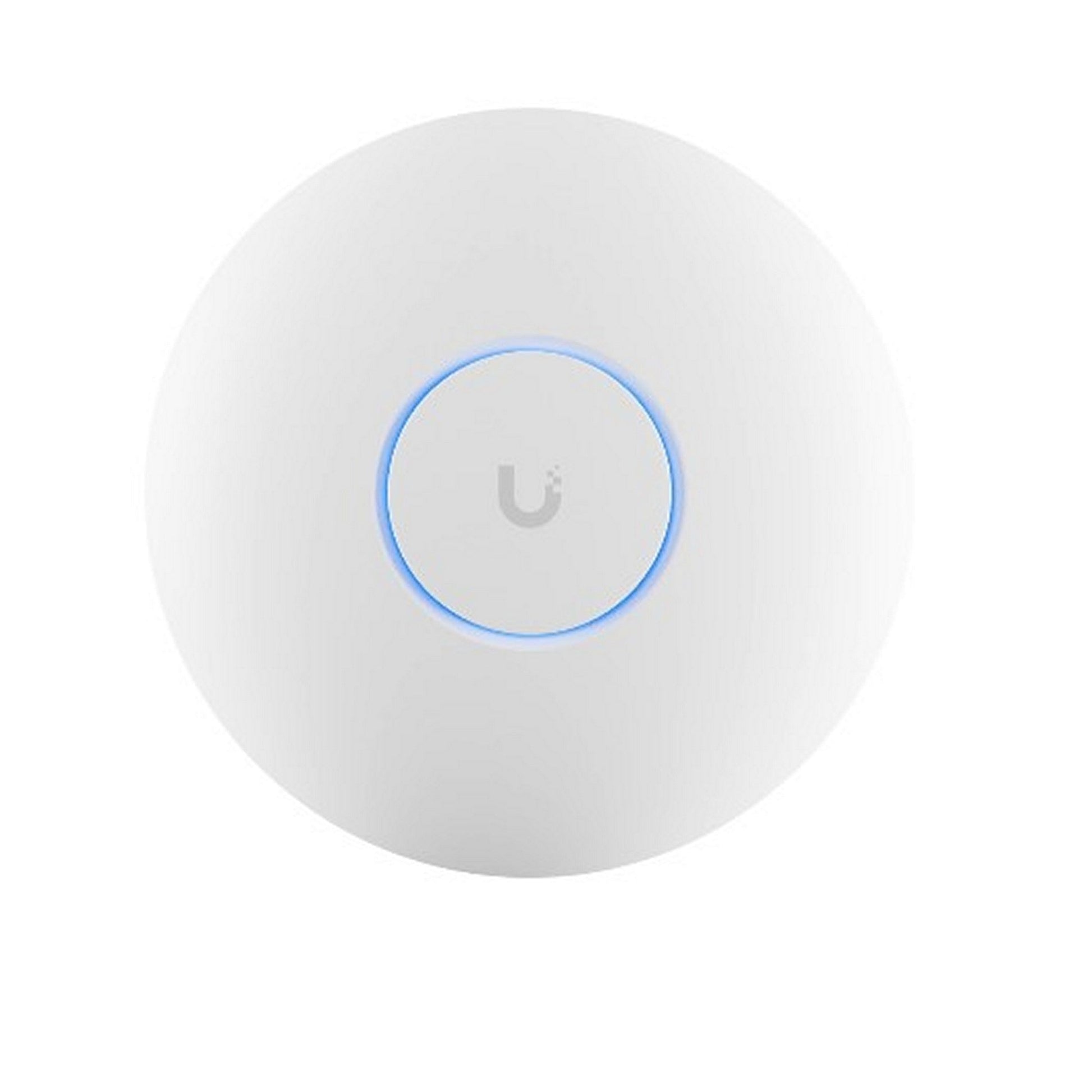

Ubiquiti U7 Pro WiFi 7 Access Point For High-Speed Connections(Ubiquiti U7 Pro Wifi 7 Access Point For High Speed Connections)

Ubiquiti U7 Pro WiFi 7 Access Point with 6GHz Support

The Ubiquiti U7 Pro is a high-performance WiFi 7 access point that supports the latest WiFi 6E and WiFi 7 standards. With its powerful 6 GHz band, this device ensures minimal interference, providing fast and reliable connections for up to 300+ devices. Ideal for large-scale environments, it features a 2.5 GbE uplink and PoE+ power for easy deployment.

Key Features

• WiFi 7 support for enhanced speeds and more channels.
• Optimized for up to 300+ concurrent clients.
• PoE+ powered for easy installation.
• Fast data rates: 4.3 Gbps on 5 GHz, 5.7 Gbps on 6 GHz.
• Up to 688 Mbps on 2.4 GHz for standard devices.

Technical Specifications

Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
Weight: 680 g (1.5 lb)
Enclosure Material: Polycarbonate, metal
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
Networking Interface: (1) 1/2.5 GbE RJ45 port
Management Interface: Ethernet
Power Method: PoE+
Power Supply: UniFi PoE switch (sold separately)
Supported Voltage Range: 44—57V DC
Max. Power Consumption: 21W
Max. TX Power: 2.4 GHz 23 dBm, 5 GHz 26 dBm, 6 GHz 23 dBm
MIMO: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz & 6 GHz, 2 x 2 (DL/UL MU-MIMO) 5 GHz
Max. Data Rate: 2.4 GHz 688 Mbps (BW40), 5 GHz 4.3 Gbps (BW240), 6 GHz 5.7 Gbps (BW320)
Antenna Gain: 2.4 GHz 4 dBi, 5 GHz 6 dBi, 6 GHz 5.8 dBi
LEDs: White/blue
Button: Factory reset
Mounting: Wall/ceiling (Included)
Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software Requirements: UniFi Network Version 8.0.26 and later, UniFi OS Version 3.2 and later

Package Contents

• U7 Pro Access Point
• Ceiling Mounting Kit
• Quick Start Guide
