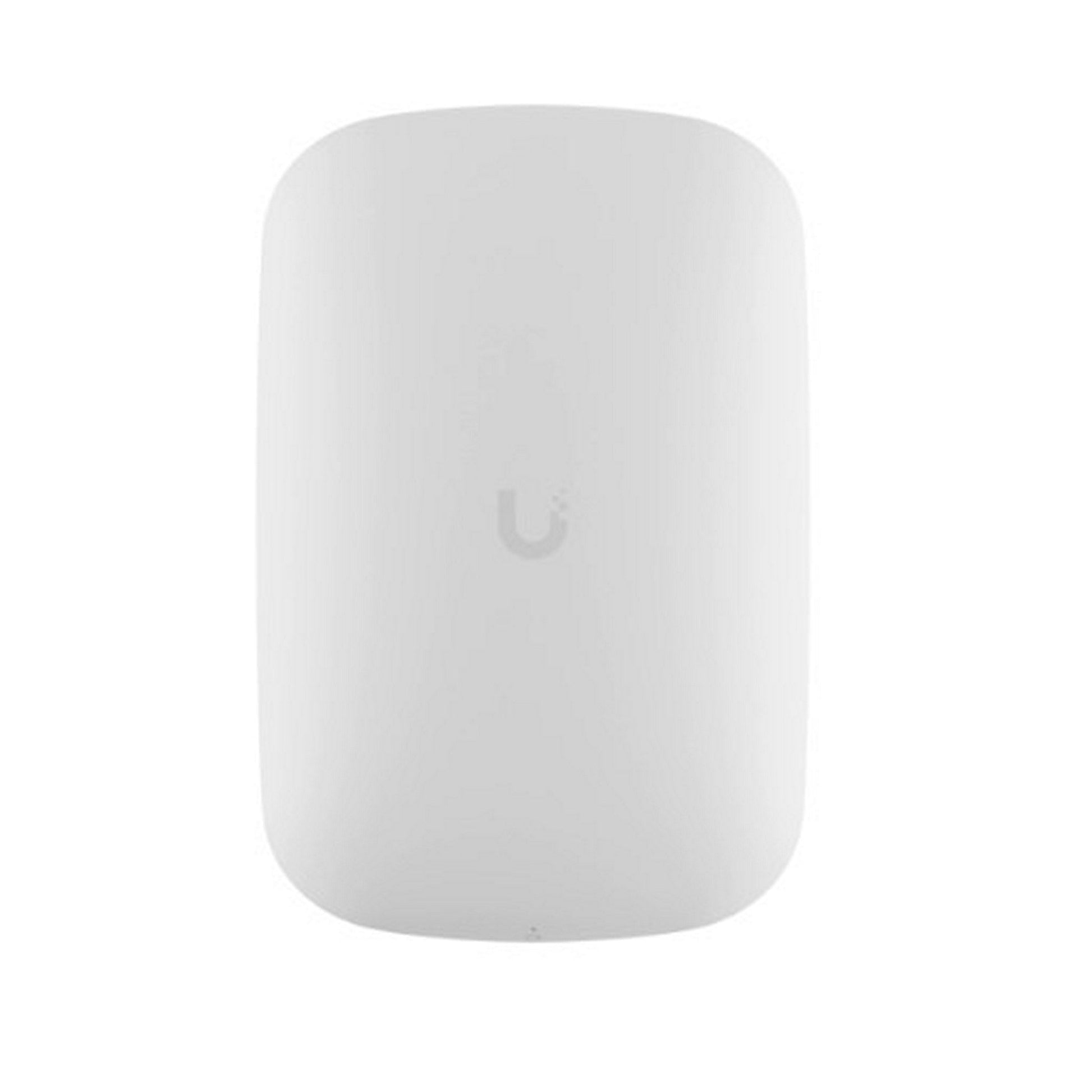

Ubiquiti U6 Extender WiFi 6 Coverage Extender for UniFi Networks

The Ubiquiti U6 Extender is designed to extend the reach of your WiFi network, providing seamless coverage to large spaces. Using WiFi 6 technology, it delivers faster speeds and supports more devices. Perfect for high-traffic areas, the U6 Extender offers reliable performance with wireless uplink to UniFi WiFi for easy setup. It also supports wall and ceiling mounting for flexible installation.

Key Features

• WiFi 6 support for enhanced speed and efficiency
• Coverage up to 1,250 ft² and supports 300+ devices
• Easy installation with wireless uplink to UniFi WiFi
• Mountable on wall or ceiling (mounting kit included)
• Requires UniFi WiFi managed by UniFi Console or self-hosted UniFi Network Server

Technical Specifications

Dimensions (US): 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3")
Dimensions (EU): 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1")
Weight (US): 290 g (10.2 oz)
Weight (EU): 340 g (12 oz)
Enclosure material: Polycarbonate
Mount material: ABS, SGCC steel

Networking interface: (1) GbE RJ45 port
Management interface: Bluetooth
Power method: Universal AC input, 100—240V AC, 0.3A Max., 50/60 Hz
Supported voltage range: 110—240V AC
Max. power consumption: 11W
Max. TX power: 2.4 GHz: 22 dBm, 5 GHz: 26 dBm
MIMO: 2 x 2 (DL/UL MU-MIMO) for 2.4 GHz, 4 x 4 (DL/UL MU-MIMO) for 5 GHz
Max. data rate: 573.5 Mbps (2.4 GHz), 4.8 Gbps (5 GHz)
Antenna gain: 2.4 GHz: 5 dBi, 5 GHz: 6 dBi
LEDs: White/blue
Button: Factory reset
Ambient operating temperature: -10 to 50° C (14 to 122° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software

WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+
Zero-wait DFS: Yes (supported with upcoming firmware versions)

Package Contents

• Ubiquiti U6 Extender
• Wall/ceiling mount kit
• Quick start guide
