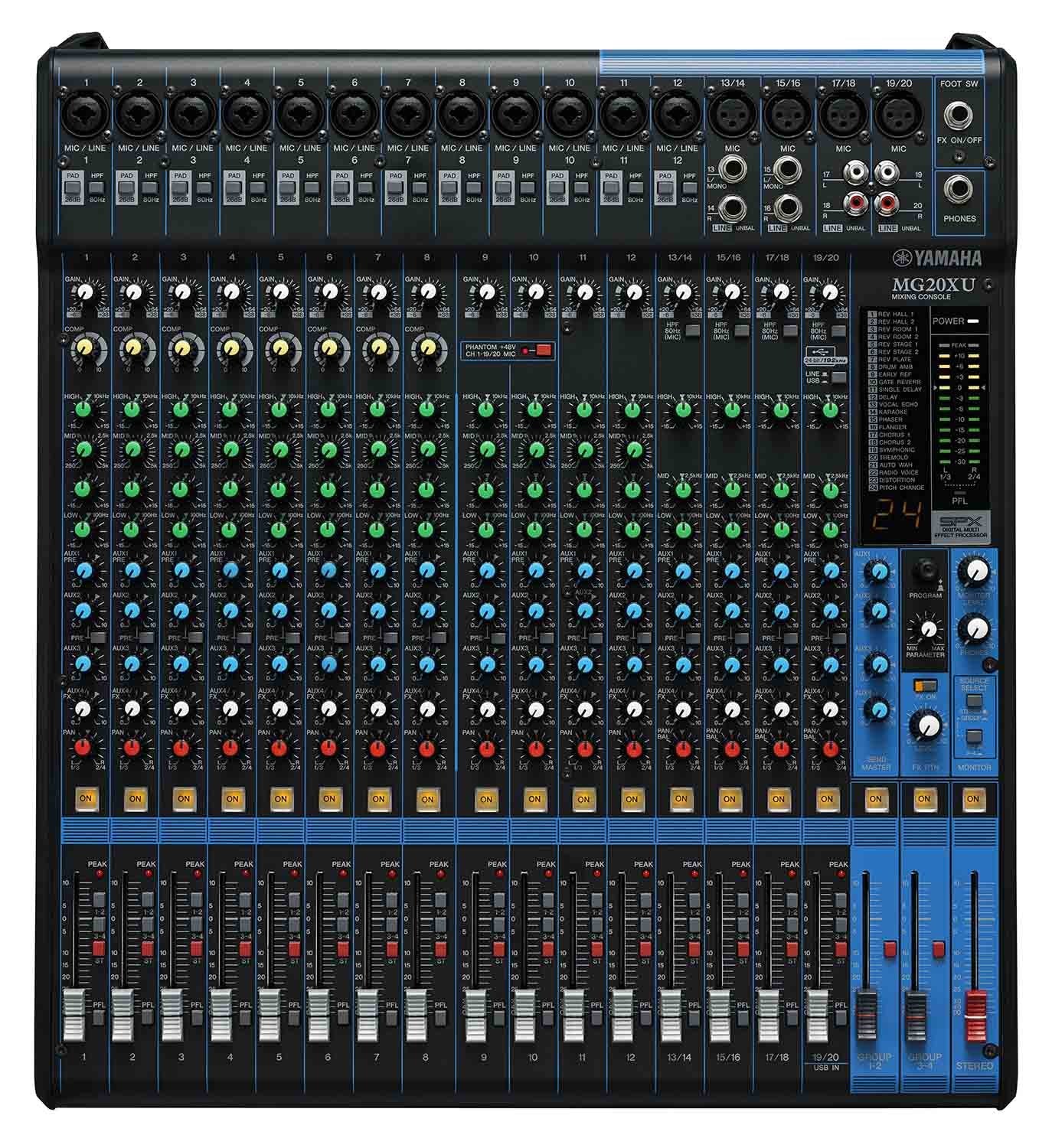

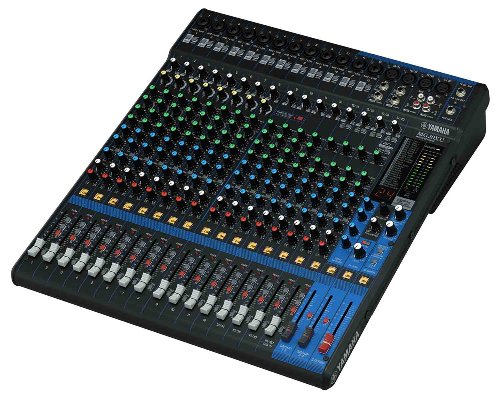

Yamaha MG20XU 20-Channel USB Mixer with Built-in SPX Digital Effects

For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.

Key Features

• 20-Channel Mixing Console
• Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX (incl. FX)
• D-PRE mic preamps with an inverted Darlington circuit

Technical Specifications On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) Phantom power +48 V Digital I/O USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit Mono[MIC/LINE] 12 Mono/Stereo[MIC/LINE] 4 STEREO OUT 2 MONITOR OUT 1 PHONES 1 AUX SEND 4 GROUP OUT 4 Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) PAD 26 dB (Mono) HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] Total Harmonic Distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min Frequency Response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min Equivalent Input Noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) Residual Output Noise -102 dBu (STEREO OUT, STEREO master fader: Min) Crosstalk -78 dB Power Requirements AC 100 – 240 V, 50 / 60 Hz Power Consumption 36 W Dimensions W 444 mm (17.5") H 130 mm (5.1") D 500mm (19.7") Net Weight 7.1kg (15.7 lbs.) Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 Others Operating Temperature: 0 to +40˚C
